2019-2021 Chevy/GM 1500 4wd 6in System w/FOX

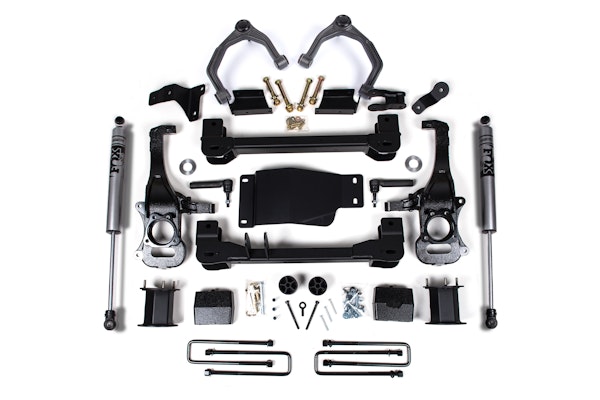

Take your Silverado/Sierra 1500 to new heights with this 6" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers, Adventure Series upper control arms and differential relocation brackets to maintain driveline angles. Get the look, performance, and capability your truck deserves with clearance for up to 35" tires.
Take your Silverado/Sierra 1500 to new heights with this 6" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers, Adventure Series upper control arms and differential relocation brackets to maintain driveline angles. Get the look, performance, and capability your truck deserves with clearance for up to 35" tires.
- High strength crossmembers to correct lower control arm positioning
- Ductile iron steering knuckles and new tie rod ends to correct steering geometry and maintain ESC system compatibility
- Top mounted strut spacers to provide lift and install easily
- Differential skid plate for additional offroad protection
- Adventure Series upper control arms for improved strength and durability
- Rear lift blocks and u-bolts to lift and level the stance
- Sway bar, brake line and bump stop relocation brackets to correct operating angles
Information:
Chevy:_x000D_ 37 x 12.50 on 20x9, 22x9 w/ 5.5-6.25" BS_x000D_ 35 x 12.50 on 17x8, 17x9 w/ 4.5" BS_x000D_ 35 x 12.50 on 20x9, 22x9 w/ 4.5-6.25" BS_x000D_ GMC:_x000D_ 295/70 on 17x8, 17x9 w/ 4.5" BS_x000D_ 295/65 on 20x9 w/ 4.5-6.25" BS_x000D_ 35 x 12.50 on 20x9, 22x9 w/ 5.5-6.25" BS_x000D_ 17" wheels with 4.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod._x000D_ All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper._x000D_ Optional front skid plate will not work with 2.7L Turbo Engines._x000D_ Requires frame bracket modification._x000D_ Stock 17" and 18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels can be reinstalled._x000D_ Will NOT fit Adaptive Ride Control (ARC) equipped models._x000D_ Will NOT fit models with a single leaf spring (monoleaf) rear suspension._x000D_ 2022 Models: This system has not been tested on models equipped with Super Cruise.Application Summary:
| Year | Make/Model |
|---|---|
| 2019-2023 | Chevrolet Silverado 1500 |
| 2019-2023 | GMC Sierra 1500 |
This item is a package with the following components:
| Attributes | |
| Accommodates Factory Wheels | See Notes |
| Adjustable | No |
| Alternate Part Number | ZONC68F |
| Back Spacing | See Notes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Country of Origin (Primary) | US |
| Emission Code | Legal US |
| Finish | Powdercoat |
| Front Lift Height | 6" |
| Front Lift Method | Knuckle & Drop Cross-Member |
| GTIN | 00810156361388 |
| Hazardous Material Code | N |
| Installation Difficulty | 4 out of 5 |
| Installation Time | 8 hrs |
| Life Cycle Status Code | Available to Order |
| Lift Type | Lift Kit |
| Max Tire Size | See Notes |
| NAFTA Preference Criterion Code | B |
| Rear Lift Height | 5" |
| Rear Lift Method | Cast Blocks |
| Requires Metal Cutting | No |
| Requires Welding | Yes |
| SDR Required Flag | N |
| Wheel Size | See Notes |
Zone Offroad Products ZONC68F Zone 6 Suspension Lift Kit
Product Information
- Brand: Zone Offroad Products
- Product Number: ZONC68F
This item is a package with the following components: ZONC2670, ZONC2671, FOX98450759, ZONC2662, ZONC2663, ZONC2672, ZONC2673
