SX10 Winch; 10000 lbs.; 12 VDC; 3/8 in. X 85 ft. Wire Rope; Handheld Remote Control; 5.5 HP; Automatic Brake; 3-Stage Planetary; Stainless Steel 4-Way Roller Fairlead;
The SX10 is engineered to provide users the ideal combination of power, speed, innovation, and proven performance they demand from Superwinch. Innovative features such as a patented drum light, relocatable die-cast aluminum control box, 3/8 in. diameter wire rope and a 12' lighted wired remote that comes standard. SX Series winches exceed the most demanding standards of today's modern vehicles, while delivering an affordable and stylish design which incorporates many class leading features not found in other high-performance winches. Providing 10,000 lbs. of raw pulling power, the new SX10 wire rope model has a sleek modern look and is built to last. With an IP68 rating for dustproof and waterproof operation, and a durable metallic graphite powder-coated finish this winch has it all.
The SX10 is engineered to provide users the ideal combination of power, speed, innovation, and proven performance they demand from Superwinch. Innovative features such as a patented drum light, relocatable die-cast aluminum control box, 3/8 in. diameter wire rope and a 12' lighted wired remote that comes standard. SX Series winches exceed the most demanding standards of today's modern vehicles, while delivering an affordable and stylish design which incorporates many class leading features not found in other high-performance winches. Providing 10,000 lbs. of raw pulling power, the new SX10 wire rope model has a sleek modern look and is built to last. With an IP68 rating for dustproof and waterproof operation, and a durable metallic graphite powder-coated finish this winch has it all.
- Rated Line Pull Of 10000 Lbs
- IP68-Rated Waterproof And Dustproof Winch
- Durable Metallic Graphite Powder Coat Finish
- Mechanical Warranty Limited Lifetime
- Electrical Warranty Limited 7 Year
- 5.5 HP Sealed Motor
- Relocatable Die-Cast Aluminum Control Box
- Pull-And Turn Clutch Handle
- 3-Stage Planetary Gearing w/218:1 Ratio
- Heavy Duty Clevis Winch Hook
- 100% Full Load Holding Automatic Mechanical Brake
| Attributes | |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Can Ship By Ground Delivery | Yes |
| Country of Origin (Primary) | CN |

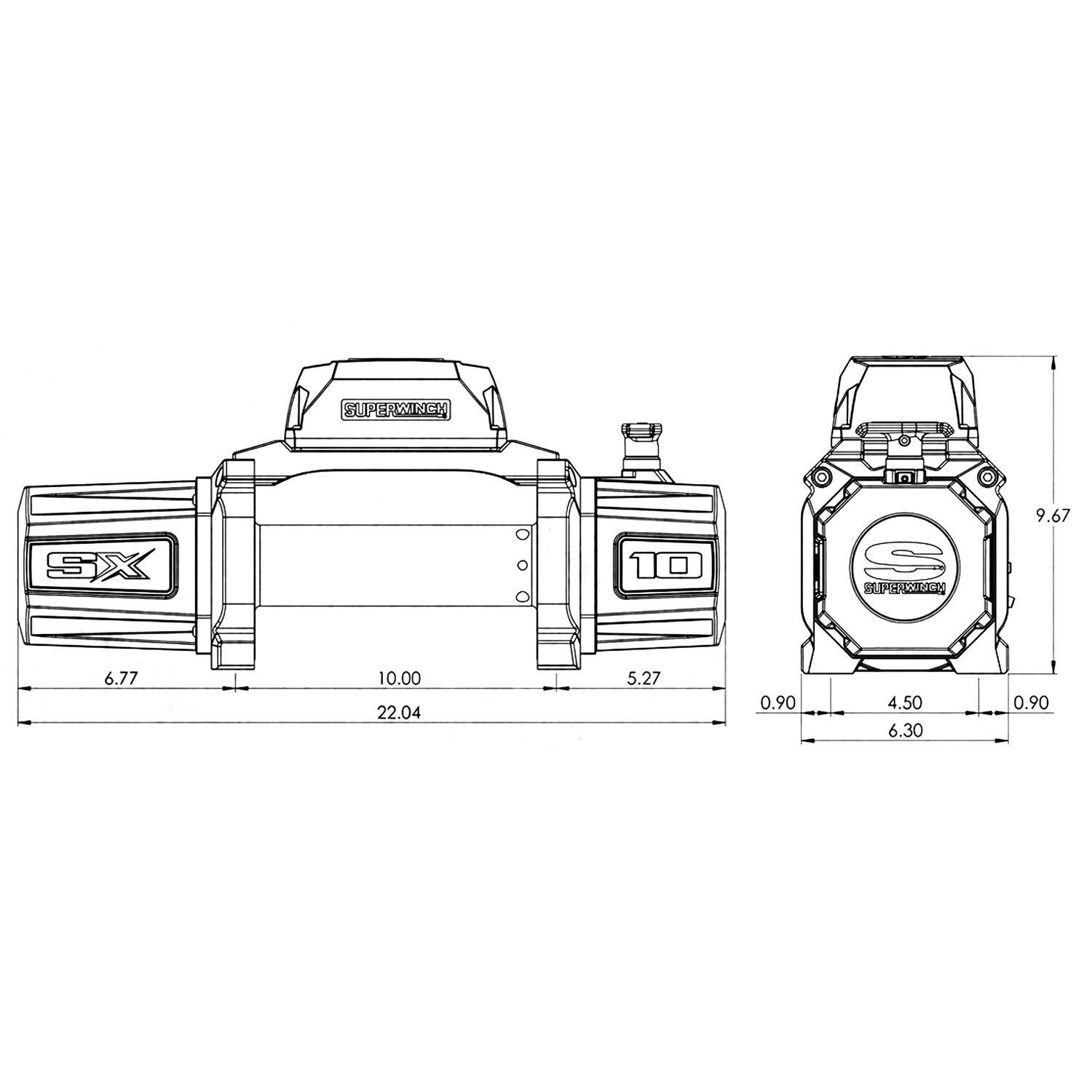

| Dimensions | 22.04in L x 6.3in W x 9.67in H (559.8mm L x 160.02mm W x 245.62mm H) |
| EN Compliant | No |
| Finish/Color | Graphite |
| Freight Class | 60 |
| GTIN | 00022705003872 |
| Harmonized Tariff Code (Schedule B) | 8435310100 |
| Hazardous Material Code | N |
| Hook | Heavy-Duty, Clevis Pinned Latched |
| Life Cycle Status Code | Available to Order |
| Line Speed | 85 Amps Motor Draw/27.3 FPM (8.32 MPM) |
| Marketing Status | Current |
| Mounting Bolt Pattern | 10in x 4.5in (254mm x 114.3mm) |
| NAFTA Preference Criterion Code | B |
| Rated Single Line Pull (Lbs) | 10000 |
| Rated Single Line Pull (lbs.) | 10000 |
| Rope Material | Steel Wire |
| SDR Required Flag | N |
| Superwinch WEB Title | SX10 Winch 12V 10000 lbs with Steel Wire Rope & Wired Remote |
| Type | Universal |
| Voltage | 12 DC, 12V DC |
| Warranty | Limited Lifetime Mechanical/7 Year Limited Electrical |
Superwinch 1710200 SX 1000 Winch
Product Information
- Brand: Superwinch
- Product Number: 1710200
