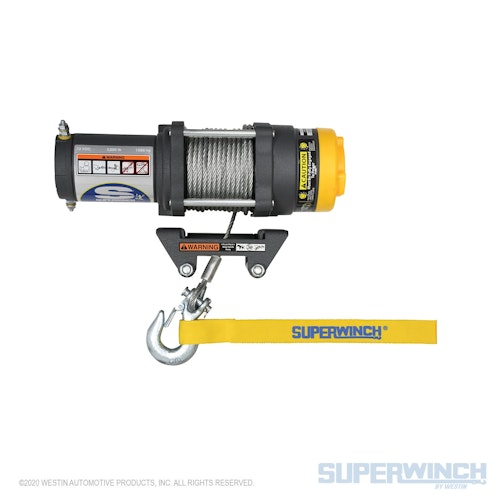

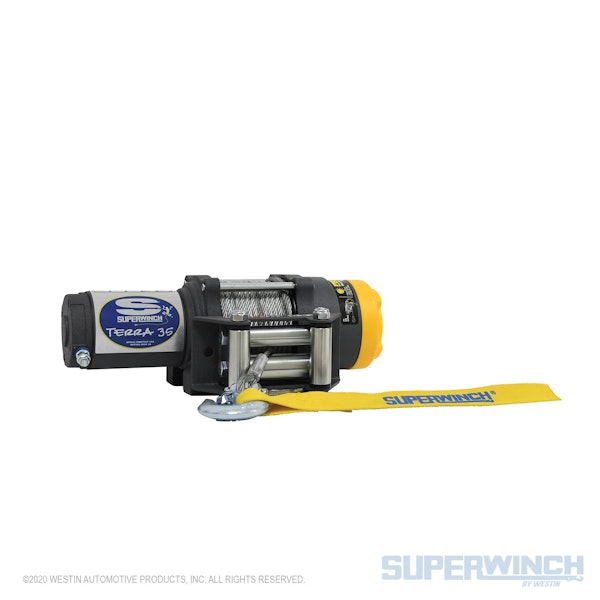

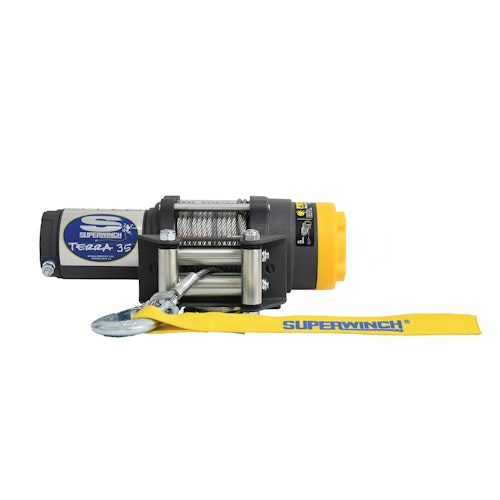

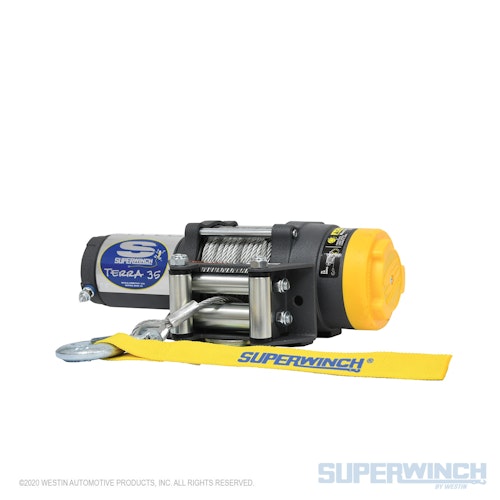

Terra 35 Winch; 3500 lbs; 12 Vdc; 13/64 In X 50 ft Steel Rope; Solenoid W/Circuit Breaker; Remote And Switch; 1.6 hp; 3-Stage Planetary; 140:1 Gear Ratio; 4-Way Roller Fairlead;
The SuperWinch Terra 35 is the standout performer in powersports ATV/UTV Winching. Its not a claim we make lightly and we back it up with stronger motors, wider gears, beefed up drums and durable steel cable. Terra 35 w inches come stock with both a 10 sealed handheld remote as well as a sealed handle bar mounted rocker switch. Features gears that are 2x as wide as the next competitor. This means far better engagement plus longer life.
- Rated Line Pull Of 3500 Lbs

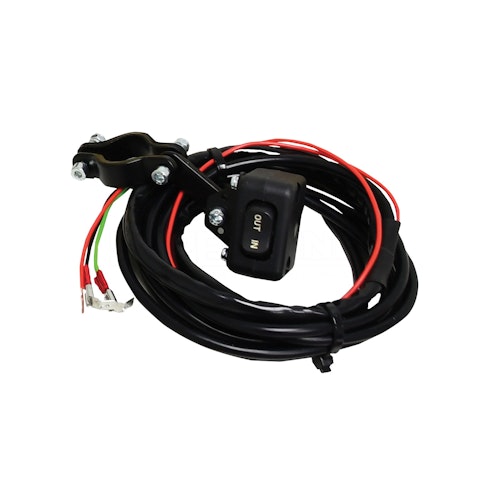

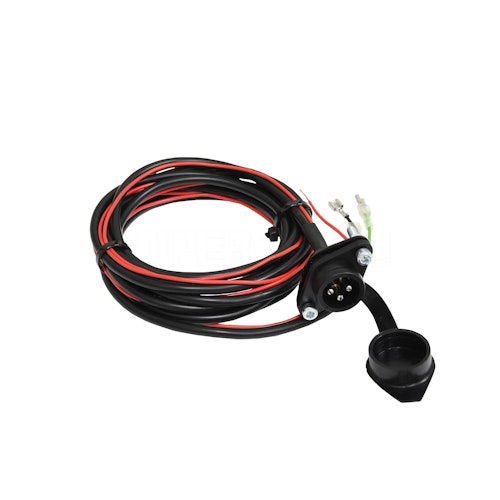

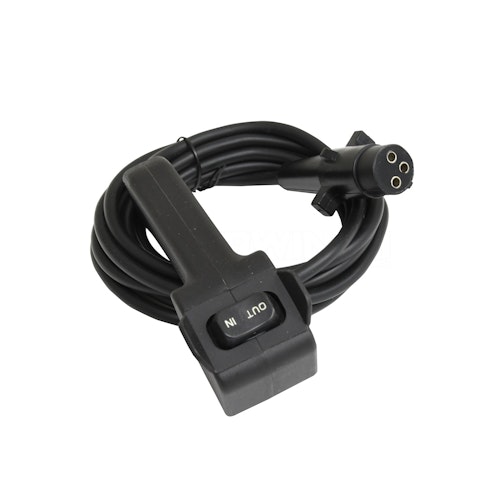

- 10 Ft. Rugged Remote Control With Handlebar Mounted Rocker Switch
- Narrow Drum Allows Easier Mounting In Tight Spaces

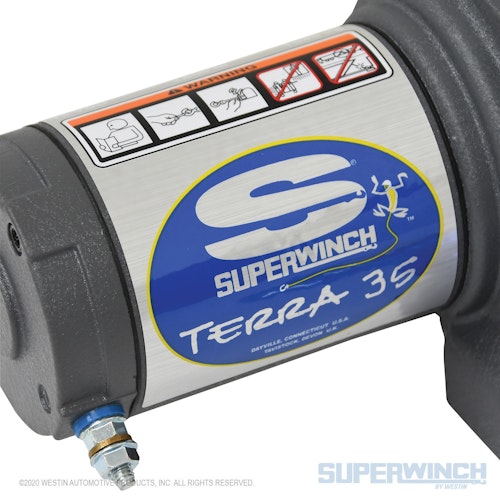

- 1.6 Hp Permanent Magnetic Motor
- 3-Stage Planetary Gearing With 140:1 Ratio

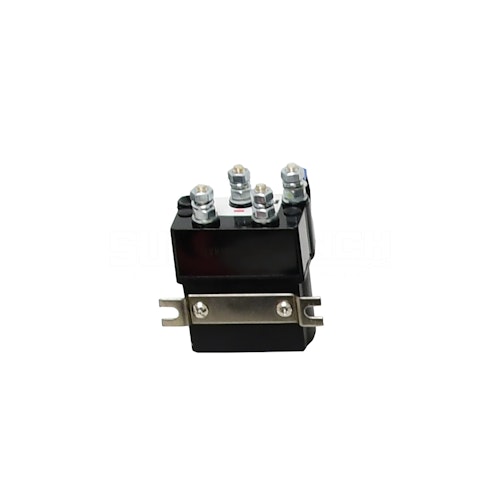

- Sealed Solenoid With Circuit Breaker

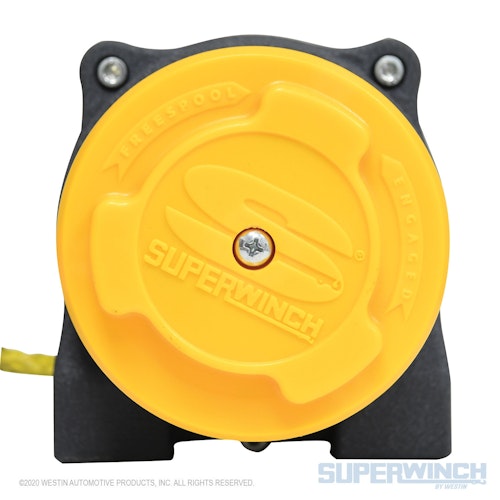

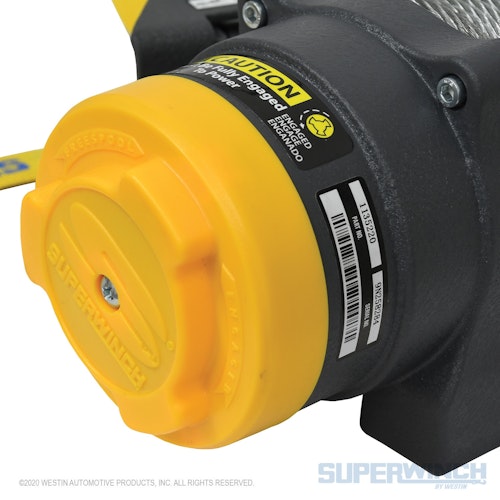

- Easy To Engage Ergonomic Freespool Control Knob

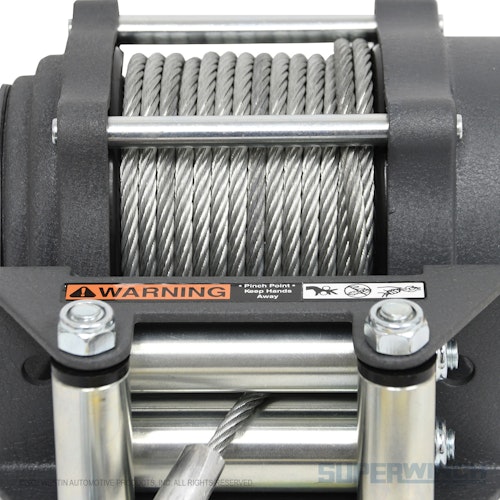

- Wire Rope Measures 7/32 In. X 50 Ft.
- Heavy-Duty Clevis Pinned Latched Hook
- Blue Anodized Aluminum Hawse Fairlead
Application Summary:
| Year |
Make/Model |
| 500 |
lbs |
| 12 |
VDC |
| 13/64 |
in x 50 ft steel rope |
| sealed |
solenoid with circuit breaker |
| handheld |
remote control and handlebar switch |
| 1.6 |
Hp |
| 3-stage |
planetary |
| 140:1 |
gear ratio |
| 4-way |
roller fairlead |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Country of Origin (Primary) |
CN |
| GTIN |
00022705003445 |
| Harmonized Tariff Code (Schedule B) |
8708295170 |
| Hazardous Material Code |
N |
| Life Cycle Status Code |
Available to Order |
| NAFTA Preference Criterion Code |
B |
| Rated Single Line Pull (lbs.) |
3500 |
| SDR Required Flag |
N |
| Type |
Automotive |
| Voltage |
12 DC |
