Suspension Lift Kit; 4 in.; Lifted Knuckles; Front/Rear Cross Member; Non-Torsion Bar; Drop Brackets; Sway-Bar Links; Skid Plate;
This NTD kit is easier to install, handles better than ever, and looks killer from any angle. Gain greater clearance, better handling, and the cleanest looking 4" lift available! A set of lifted front knuckles and 5" rear blocks allow your 1500 to run up to 33" tires, while a full set of drop crossmembers, differential drop brackets and non torsion bar drop brackets keep everything tucked, hidden, and at optimum angles. This fully loaded suspension lift also includes a set of (4) Premium N3 Shocks, front CV spacers, sway-bar links, and a protective skid plate to give you everything you need to get rolling in one of our best kits, at a great price.
- Torsion bars stay in factory location
- Redesigned for easier installation
- Maintains factory ride quality
- Applicable with Auto Trac equipped models
- Unmatched ground clearance
- Axles maintain factory position and angle
- No drivetrain or exhaust modifications required
- Designed to reuse factory compression travel stops
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
Information:

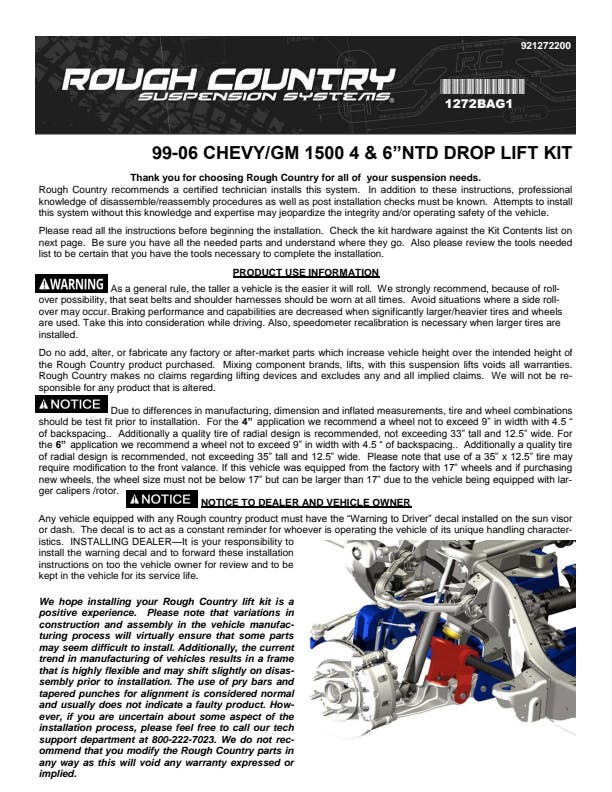

Will fit 2007 "Classic" models. Does NOT fit HD models. Does NOT fit 1999 "Classic" models. Differential modification required Frame bracket modification required If equipped with factory 17" wheels and purchasing new wheels - the new wheels must be 17" or larger. Torsion bar unloading tool required for installation. Available below (#1067)
Application Summary:
| Year |
Make/Model |
| 1999-2006 |
Chevrolet Silverado 1500 |
| 2007 |
Chevrolet Silverado 1500 Classic |
| 1999-2006 |
GMC Sierra 1500 |
| 2007 |
GMC Sierra 1500 Classic |
| Attributes |
| California Proposition 65 |
WARNING: Cancer - www.P65Warnings.ca.gov |
| Category |
Susp Lift Kits 4wd |
| Country of Origin (Primary) |
US |
| Front Components |
Lifted knuckles, Front crossmember, Rear crossmember, Non-torsion bar drop brackets, Differential drop brackets, Sway-bar links, CV spacers, Skid plate, Hardware |
| Front Kit Componenets |
Lifted knuckles, Front crossmember, Rear crossmember, Non-torsion bar drop brackets, Differential drop brackets, Sway-bar links, CV spacers, Skid plate, Hardware |
| Front Kit Components |
Lifted knuckles, Front crossmember, Rear crossmember, Non-torsion bar drop brackets, Differential drop brackets, Sway-bar links, CV spacers, Skid plate, Hardware |
| GTIN |
00843030160678 |
| Harmonized Tariff Code (Schedule B) |
8708809900 |
| Hazardous Material Code |
N |
| Install Time |
8 - 10 hours |
| Life Cycle Status Code |
Available to Order |
| Lift/Drop Height |
4 in. |
| NAFTA Preference Criterion Code |
B |
| Rear Components |
5in lift blocks, U-bolts, Hardware |
| Rear Kit Components |
5in lift blocks, U-bolts, Hardware |
| SDR Required Flag |
N |
| Shipping Options |
No Restrictions |
| Ships in Multiple Boxes |
Y |
| Tire & Wheel Size Combinations |
305/55 R20 - 20x9, Backspacing/Offset: 5in/0mm (If using wheels with -12mm offset or 4.5-inch backspacing, some minor inner fender trimming will be required), 305/55 R20 - 20x9, Backspacing/Offset: 5in/0mm (If using wheels with -12mm offset or 4.5-inch backspacing, some minor inner fender trimming will be required) |
| Tire, Wheel, and Offset Info |
305 70R17:17x8.5:6x5.5:+0:-; 285 70R17:17x8.5:6x5.5:+0:-; 305 70R17:17x8.5:6x5.5:+1:-; 33x12.50R17:17x9:6x5.5:-12:-; 285 70R17:17x9:6x5.5:-12:-; 33x12.50R17:17x9:6x5.5:+0:-; 305 70R17:17x9:6x5.5:+0:-; 285 70R17:17x9:6x5.5:+0:-; 33x12.50R17:17x9:6x5.5:+1:-; 305 70R17:17x9:6x5.5:+1:-; 285 70R17:17x9:6x5.5:+1:-; 305 65R18:18x8.5:6x5.5:+0:-; 305 65R18:18x8.5:6x5.5:+1:-; 285 65R18:18x9:6x5.5:-12:-; 305 65R18:18x9:6x5.5:+0:-; 285 65R18:18x9:6x5.5:+0:-; 305 65R18:18x9:6x5.5:+1:-; 285 65R18:18x9:6x5.5:+1:-; 33x12.50R20:20x9:6x5.5:-12:-; 305 55R20:20x9:6x5.5:-12:-; 295 60R20:20x9:6x5.5:-12:Minor Trimming; 295 55R20:20x9:6x5.5:-12:-; 285 55R20:20x9:6x5.5:-12:-; 33x12.50R20:20x9:6x5.5:+0:-; 305 55R20:20x9:6x5.5:+0:-; 295 60R20:20x9:6x5.5:+0:Minor Trimming; 295 55R20:20x9:6x5.5:+0:-; 285 55R20:20x9:6x5.5:+0:-; 33x12.50R20:20x9:6x5.5:+1:-; 305 55R20:20x9:6x5.5:+1:-; 295 60R20:20x9:6x5.5:+1:Minor Trimming; 295 55R20:20x9:6x5.5:+1:-; 285 55R20:20x9:6x5.5:+1:-; 33x12.50R20:20x10:6x5.5:-25:-; 305 55R20:20x10:6x5.5:-25:-; 295 60R20:20x10:6x5.5:-25:-; 285 55R20:20x10:6x5.5:-25:-; 33x12.50R20:20x10:6x5.5:-24:-; 305 55R20:20x10:6x5.5:-24:-; 295 60R20:20x10:6x5.5:-24:-; 285 55R20:20x10:6x5.5:-24:-; 33x12.50R20:20x10:6x5.5:-19:-; 305 55R20:20x10:6x5.5:-19:-; 295 60R20:20x10:6x5.5:-19:-; 285 55R20:20x10:6x5.5:-19:-; 33x12.50R20:20x10:6x5.5:-18:-; 305 55R20:20x10:6x5.5:-18:-; 295 60R20:20x10:6x5.5:-18:-; 285 55R20:20x10:6x5.5:-18:-; 33x12.50R22:22x10:6x5.5:-25:Minor Trimming; 33x12.50R22:22x10:6x5.5:-19:Minor Trimming |
