6" Lift Kit - Dodge Ram 2500 4WD W/ Bilstein Shocks 2019-2023 With Driveline Indexing Kit

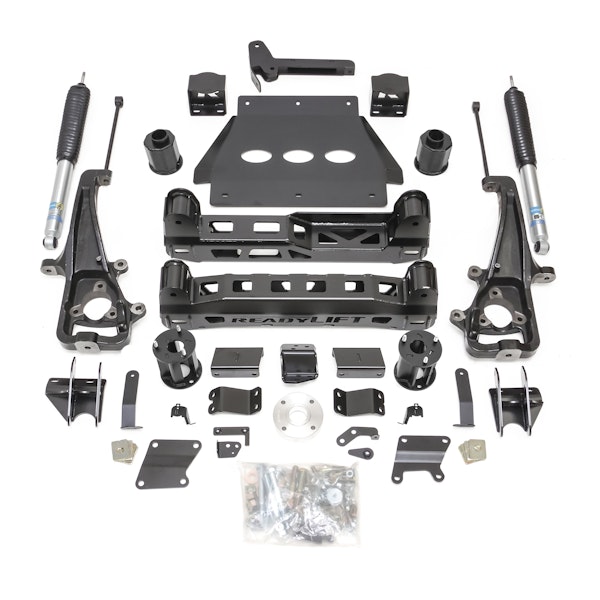

The new Ram HD trucks are more popular than ever and our ReadyLIFT 6" lift kit we introduced two years ago has been an extremely popular lift option. How can we take an already great 2019-2023 Ram HD 6" lift kit and make it better? How about adding a new CNC-machined billet Aluminum transfer case clocking ring to reposition the transfer case pinion angle? Some Ram HD trucks can experience a slight vibration after lifting due to driveline angle sensitivity. Our new 49-1961 6" lift kit addresses that inherent driveline system issue with the addition of a heavy-duty transfer case clocking [indexing] ring and new transmission crossmember. This Driveline Indexing System (DIS) combination works great with our ReadyLIFT 6" lift kit while re-positioning the transmission and pinion position for a smooth driving experience on or off road. Kit 49-1961 includes everything in our popular 49-1960 6" lift kit as well as these new DIS re-positioning components. Heavy duty and great riding 6" lift front springs, 3.5" lift rear coil spring spacers, heavy-duty radius arm drop brackets, heavy-duty fabricated steel front and rear track bar brackets, dropped cast iron pitman arm, front/rear sway bar relocation brackets and bump stop extensions preventing over- compression of the new Bilstein 5100 series front/rear shocks are all included in this premium kit. For use on diesel 2500 trucks only.
- 20192023 Ram 2500 4WD HD 6" lift kit
- 4 Bilstein 5100 series shocks tuned specifically for Ram 2500 HD
- For use on Diesel engine Ram 2500 4WD HD trucks only
- Allows for up to 37x13.50 tires on 9.5" wide wheels with 18 offset
- Does not work with Factory Air suspension or Auto Level system (factory helper bags)
- Note: Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT
- 201920192023 Ram 2500 4WD HD 6"" lift kit
- 66inch front/3.5inch rear lift
- Includes all Includes all new transfer case clocking ring
- New heavy New heavy-duty transmission crossmember
- Allows for up to 37x13.50 tires on 9.5"" wide wheels with Allows for up to 37x13.50 tires on 9.5"" wide wheels with 18 offset
- 6inch front/3.5inch rear lift
- Includes all new transfer case clocking ring
- New heavy-duty transmission crossmember
Application Summary:
| Year |
Make/Model |
| 2019-2022 |
Ram 2500 |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Country of Origin (Primary) |
US |
| Fitment |
Direct Fitment, Direct Fitment |
| Front Lift Component |
Coil Spring, Coil Spring |
| Front Lift Height |
6 Inches, 6 Inches |
| Front Shocks |
Bilstein 5100, Bilstein 5100 |
| Front or Rear |
Front and Rear, Front and Rear |
| GTIN |
00194933151691 |
| Harmonized Tariff Code (Schedule B) |
8708801600 |
| Hazardous Material Code |
N |
| Install Difficulty |
Difficult Requires Professional Installation, Difficult Requires Professional Installation |
| Installation Time |
5+ Hours, 5+ Hours |
| Life Cycle Status Code |
Available to Order |
| Lift/Drop Height |
6 in. |
| Max Tire Size |
37 Inch, 37 Inch |
| NAFTA Preference Criterion Code |
B |
| Rear Lift Component |
Coil Spring Spacer, Coil Spring Spacer |
| Rear Lift Height |
3.5 Inches, 3.5 Inches |
| Rear Shocks |
Bilstein 5100, Bilstein 5100 |
| SDR Required Flag |
N |
