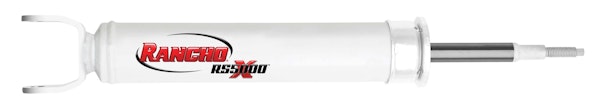

Rancho RS55810 RS5000X Suspension Strut
Rancho RS5000X RS55810 Suspension Strut for Ram 1500
Featuring a unique, exclusive valving system and advanced compression functionality, Rancho® RS5000™X struts deliver improved overall on- and off-road handling and performance.
  • IMPROVED HANDLING AND PERFORMANCE -- Cross Tuned technology featuring exclusive rebound valving system and advanced compression phase improves overall handling and performance on and off road
  • Gas Pressurization Of Shock
  • 16 mm Nitro Carburized Rod
  • Full Displaced 35 mm Bore
  • MINIMIZES ROUGH RIDE -- Exclusive Progressive Engagement Valving is custom-tuned for each vehicle to help reduce initial impacts at low speeds and minimizes a rough ride
  • STRONG AND DURABLE -- Features a nitro-carburized piston rod to resist scuffs & corrosion, double-welded loops at stress areas, application-specific sintered iron piston for enhanced structural integrity and polyvinyl protective boot
  • HANDLES EXTREME TEMPERATURE CHANGES -- Large twin-tube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
  • SMOOTH PERFORMANCE -- Polyurethane rebound bumper and rubber bushings help absorb ride harshness while the fluon-banded piston enhances responsiveness to changing road conditions for an overall smoother ride
  • REDUCES FADE -- Nitrogen gas pressurized to 60 PSI to minimize air-to-oil mixture to reduce damping performance fade and foaming
  • MAINTAINS VEHICLE CONTROL -- Compression Control Valve is custom-tuned for each vehicle to regulate fluid transfer to absorb impacts without disc flutter and help maintain shock motion control
  • BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the application-specific piston delivers heightened control of shock motion due to the expanded piston area
  • BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty

Information:

Progressive Engagement Valving; Tuned Compression Control Valve; Enlarged 2 .25 in. Twin Tube Body; Gas Pressurization Of Shock; 16 mm Nitro Carburized Rod; Full Displaced 35 mm Bore; Rebound Bumper; Black Natural Bushings; Low Friction/ Self Lubrication Seal; Protective Boot; Glass Filled/ Fluon Banded Piston; Double Welded Loops

Application Summary:

Year Make/Model
2009-2010 Dodge Ram 1500
2011-2018 Ram 1500
2019-2020 Ram 1500 Classic
Attributes
ASIN B00YZ250JK
Body Length 11.49
Body Length (in.) 11.490
Body Type SS4
California Proposition 65 No
Collapsed Length 18.690 in.
Collapsed Length (in.) 18.690
Compressed Bumper Stop No
Compressed Length 18.690
Country of Origin (Primary) US
Cylinder Included No
Dust Shield No
Dust Shield Included No
Extended Bumper Stop No
Extended Hydraulic Lockout No
Extended Length 24.500 in.
Extended Length (in.) 24.500 in.
Finish Painted
Fully Open Length 24.500 in.
GTIN 00039703006651
Harmonized Tariff Code (Schedule B) 8708801600
Hazardous Material Code N
Hydraulic Lockout No, No
Life Cycle Status Code Available to Order
Lower Mount Type Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Lower Mounting Description Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Max Year Covered 2019
Min Year Covered 2009
Most Popular Make / Model Ram 1500
Most Popular Make/Model Ram 1500
Most Popular Year 2017
NAFTA Preference Criterion Code B
Parts Pack P01768
Parts Pack(s) P01768
Product Grade Premium
SDR Required Flag Y
SDS Sheet Number 01164
Shock Stroke 5.810 in.
Shock Stroke (in.) 5.810
Total Part VIO 2279088
Travel Length 5.81
Upper Mount Type Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Upper Mounting Description Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
