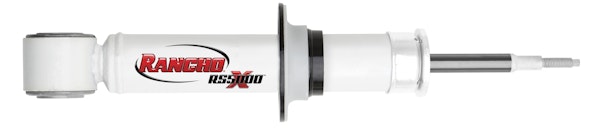

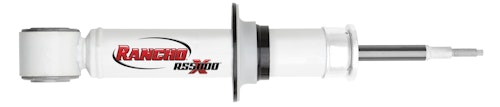

Rancho RS55777 RS5000X Suspension Strut
Rancho RS5000X RS55777 Suspension Strut for Toyota Tacoma
Featuring a unique, exclusive valving system and advanced compression functionality, Rancho® RS5000™X struts deliver improved overall on- and off-road handling and performance.
  • IMPROVED HANDLING AND PERFORMANCE -- Cross Tuned technology featuring exclusive rebound valving system and advanced compression phase improves overall handling and performance on and off road
  • MINIMIZES ROUGH RIDE -- Exclusive Progressive Engagement Valving is custom-tuned for each vehicle to help reduce initial impacts at low speeds and minimizes a rough ride
  • STRONG AND DURABLE -- Features a nitro-carburized piston rod to resist scuffs & corrosion, double-welded loops at stress areas, application-specific sintered iron piston for enhanced structural integrity and polyvinyl protective boot
  • HANDLES EXTREME TEMPERATURE CHANGES -- Large twin-tube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
  • SMOOTH PERFORMANCE -- Polyurethane rebound bumper and rubber bushings help absorb ride harshness while the fluon-banded piston enhances responsiveness to changing road conditions for an overall smoother ride
  • REDUCES FADE -- Nitrogen gas pressurized to 60 PSI to minimize air-to-oil mixture to reduce damping performance fade and foaming
  • MAINTAINS VEHICLE CONTROL -- Compression Control Valve is custom-tuned for each vehicle to regulate fluid transfer to absorb impacts without disc flutter and help maintain shock motion control
  • BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the application-specific piston delivers heightened control of shock motion due to the expanded piston area
  • BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty

Application Summary:

Year Make/Model
2003-2024 Toyota 4Runner
2007-2014 Toyota FJ Cruiser
2005-2023 Toyota Tacoma
Attributes
Body Length 21.93
Body Length (in.) 21.930
Body Type SS2
California Proposition 65 No
Collapsed Length 16.620 in.
Collapsed Length (in.) 16.620
Country of Origin (Primary) US
Dust Shield Yes
Dust Shield Included Yes
Extended Length 22.430 in.
Extended Length (in.) 22.430 in.
Finish Painted
GTIN 00039703008594
Harmonized Tariff Code (Schedule B) 8708801600
Hazardous Material Code N
Life Cycle Status Code Available to Order
Lower Mount Type Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Lower Mounting Description Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Max Year Covered 2019
Min Year Covered 2003
Most Popular Make / Model Toyota Tacoma
Most Popular Make/Model Toyota Tacoma
Most Popular Year 2017
NAFTA Preference Criterion Code B
Parts Pack P01613
Parts Pack(s) P01613, P01613
Product Grade Premium
SDR Required Flag Y
SDS Sheet Number 01164
Shock Stroke 5.810 in.
Shock Stroke (in.) 5.810
Total Part VIO 3425853
Travel Length 5.81
Upper Mount Type Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Upper Mounting Description Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
