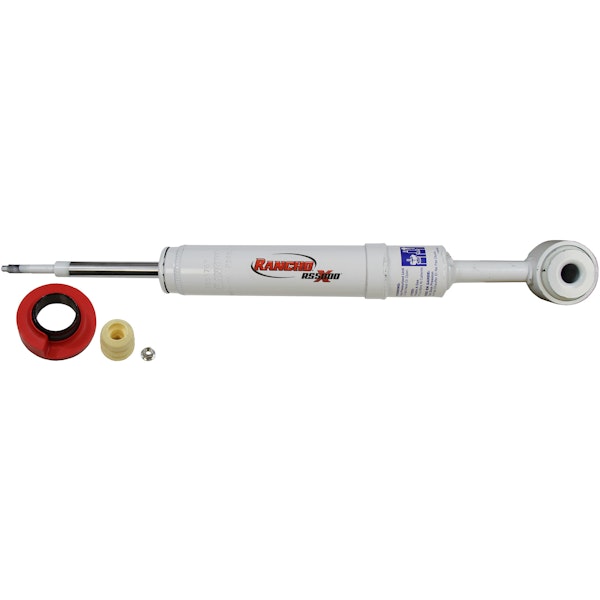

Rancho RS55767 RS5000X Suspension Strut
Rancho RS5000X RS55767 Suspension Strut for Ford F-150
Featuring a unique, exclusive valving system and advanced compression functionality, Rancho® RS5000™X struts deliver improved overall on- and off-road handling and performance.
  • IMPROVED HANDLING AND PERFORMANCE -- Cross Tuned technology featuring exclusive rebound valving system and advanced compression phase improves overall handling and performance on and off road
  • Gas Pressurization Of Shock
  • 16 mm Nitro Carburized Rod
  • Full Displaced 35 mm Bore
  • MINIMIZES ROUGH RIDE -- Exclusive Progressive Engagement Valving is custom-tuned for each vehicle to help reduce initial impacts at low speeds and minimizes a rough ride
  • STRONG AND DURABLE -- Features a nitro-carburized piston rod to resist scuffs & corrosion, double-welded loops at stress areas, application-specific sintered iron piston for enhanced structural integrity and polyvinyl protective boot
  • HANDLES EXTREME TEMPERATURE CHANGES -- Large twin-tube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
  • SMOOTH PERFORMANCE -- Polyurethane rebound bumper and rubber bushings help absorb ride harshness while the fluon-banded piston enhances responsiveness to changing road conditions for an overall smoother ride
  • REDUCES FADE -- Nitrogen gas pressurized to 60 PSI to minimize air-to-oil mixture to reduce damping performance fade and foaming
  • MAINTAINS VEHICLE CONTROL -- Compression Control Valve is custom-tuned for each vehicle to regulate fluid transfer to absorb impacts without disc flutter and help maintain shock motion control
  • BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the application-specific piston delivers heightened control of shock motion due to the expanded piston area
  • BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty

Application Summary:

Year Make/Model
2004-2008 Ford F-150
2006-2008 Lincoln Mark LT
Attributes
Body Diameter 2.129
Body Length 16.875
Body Length (in.) 16.650
Body Type SS2
California Proposition 65 No
Collapsed Length 17.300 in.
Collapsed Length (in.) 17.300
Compressed Bumper Stop No
Country of Origin (Primary) US
Dust Shield Yes
Dust Shield Included Yes
Extended Bumper Stop Yes
Extended Hydraulic Lockout No
Extended Length 21.630 in.
Extended Length (in.) 21.630 in.
Finish Painted
GTIN 00039703008587
Harmonized Tariff Code (Schedule B) 8708801600
Hazardous Material Code N
Hydraulic Lockout No, No
Life Cycle Status Code Available to Order
Lower Mount Type Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Lower Mounting Description Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Max Year Covered 2008
Min Year Covered 2004
Most Popular Make/Model Ford F-150
Most Popular Year 2004
NAFTA Preference Criterion Code B
Parts Pack P01764
Parts Pack(s) P01764, P01764
Product Grade Premium
Reserve Tube Diameter 2.129
SDR Required Flag Y
SDS Sheet Number 01164
Shock Stroke 4.330 in.
Shock Stroke (in.) 4.790
Strut Charging Type Gas Charged Unit - Strut Rod Will Extend Automatically
Total Part VIO 1177343
Travel Length 4.33
Upper Mount Type Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Upper Mounting Description Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
