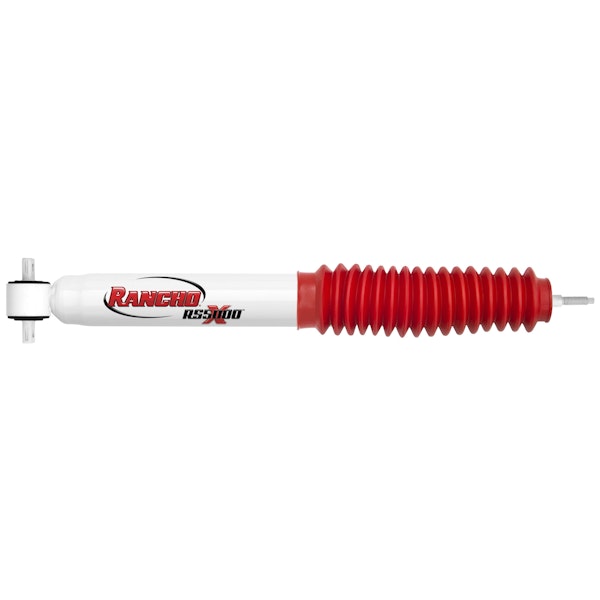

Rancho RS55235 RS5000X Suspension Shock Absorber

Rancho RS5000X RS55235 Suspension Shock Absorber for Ford F-150

Featuring a unique, exclusive valving system and advanced compression functionality, Rancho® RS5000™X shocks deliver improved overall on- and off-road handling and performance.

IMPROVED HANDLING AND PERFORMANCE -- Cross Tuned technology featuring exclusive rebound valving system and advanced compression phase improves overall handling and performance on and off road
Gas Pressurization Of Shock
17 mm Nitro Carburized Rod
Full Displaced 35 mm Bore
MINIMIZES ROUGH RIDE -- Exclusive Progressive Engagement Valving is custom-tuned for each vehicle to help reduce initial impacts at low speeds and minimizes a rough ride
STRONG AND DURABLE -- Features a 16mm nitro-carburized piston rod to resist scuffs & corrosion, double-welded loops at stress areas, 35mm sintered iron piston for enhanced structural integrity and polyvinyl protective boot
HANDLES EXTREME TEMPERATURE CHANGES -- Large twin-tube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
SMOOTH PERFORMANCE -- Polyurethane rebound bumper and rubber bushings help absorb ride harshness while the fluon-banded piston enhances responsiveness to changing road conditions for an overall smoother ride
REDUCES FADE -- Nitrogen gas pressurized to 150 PSI to minimize air-to-oil mixture to reduce damping performance fade and foaming
MAINTAINS VEHICLE CONTROL -- Compression Control Valve is custom-tuned for each vehicle to regulate fluid transfer to absorb impacts without disc flutter and help maintain shock motion control
BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the application-specific piston delivers heightened control of shock motion due to the expanded piston area
BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty

Application Summary:

Year	Make/Model
1997-2002	Ford Expedition
1997-2001	Ford F-100 Ranger
1997-2003	Ford F-150
2004	Ford F-150 Heritage
1997-1999	Ford F-250

Attributes
Adjustable Damping	No
Air Adjustable	No
Air Ride Suspension	No
Bearing Plate Included	No
Body Diameter	2.251
California Proposition 65	No
Coil Over Springs Included	No
Collapsed Length	10.240 in.
Compressed Bumper Stop	No
Compressed Length	10.24
Country of Origin (Primary)	US
Dust Shield Color	Red
Dust Shield Included	Yes
Extended Bumper Stop	Yes
Extended Hydraulic Lockout	No
Extended Length	15
GTIN	00039703010351
Harmonized Tariff Code (Schedule B)	8708801600
Hazardous Material Code	N
Internal Construction Type	Dual Tube
Life Cycle Status Code	Available to Order
Lower Mount Code	XP5
Lower Mount Type	Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.1/2" Pin Length (Hole Center to Center)
Lower Mounting Code	XP5
Lower Mounting Description	Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.1/2" Pin Length (Hole Center to Center)
Max Year Covered	2004
Min Year Covered	1997
Most Popular Make/Model	Ford F-150
Most Popular Year	2004
NAFTA Preference Criterion Code	B
New Or Remanufactured	New
Part Description	Shock Absorber
Parts Pack	P01167
Parts Pack(s)	P01167, P01167
Product Grade	Premium
Reserve Tube Diameter	2.251
SDR Required Flag	Y
SDS Sheet Number	01164
Shaft Material	Nitrocarburized
Shock Absorber Bore Size	1.3779527559055118
Shock Stroke	4.760 in.
Spring Included	No
Spring Isolators Included	No
Spring Seat Included	No
Total Part VIO	1877055
Travel Length	4.76
Upper Mount Code	S5
Upper Mount Type	Stem Mount - 2.5/8" Stem Length X 1/2"-13 Thread Pitch
Upper Mounting Code	S5
Upper Mounting Description	Stem Mount - 2.5/8" Stem Length X 1/2"-13 Thread Pitch
