Fits GM TH400

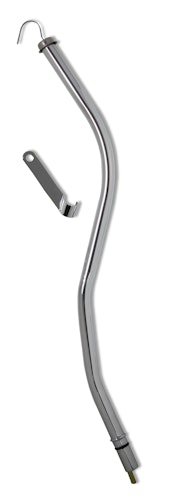

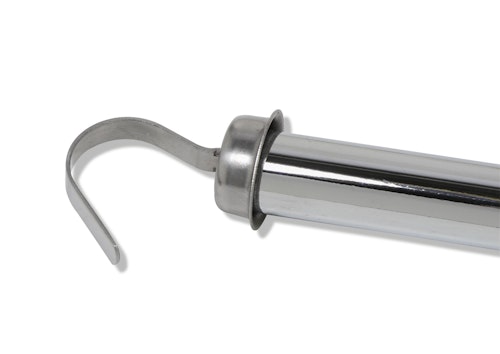

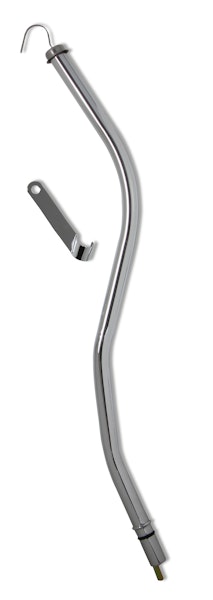

Complement your engine compartment with this beautifully chrome plated dipstick. Fits the popular GM (General Motors) TH-400 transmission. The design of the dipstick tube has been revised to a 2-piece design. The revised design makes the package smaller and more suitable for sale in retail stores since the packaging takes up less space in the planogram.
Complement your engine compartment with this beautifully chrome plated dipstick. Fits the popular GM (General Motors) TH-400 transmission. The design of the dipstick tube has been revised to a 2-piece design. The revised design makes the package smaller and more suitable for sale in retail stores since the packaging takes up less space in the planogram.
- Steel w/ Chrome Plated Finish
- Fits GM TH400 Transmission

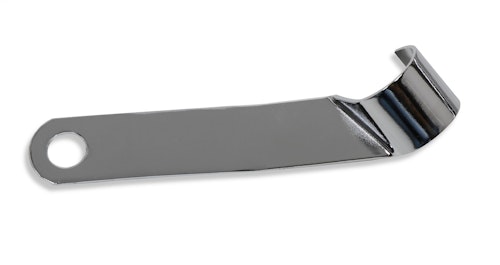

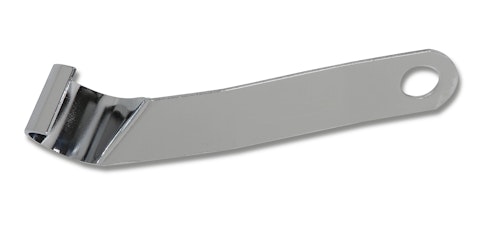

- Bell-Housing Mounting Tab is now a Separate Component

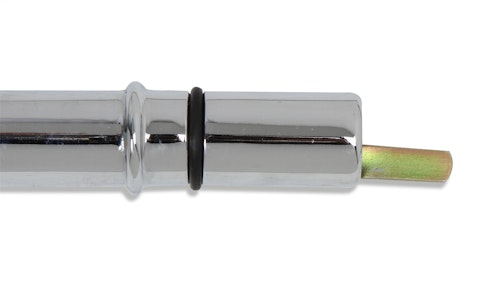

- O-Ring Seal at Transmission Case
- 25” overall Length
- Includes: Dipstick, Tube w/ O-ring Seal, and Mounting Tab

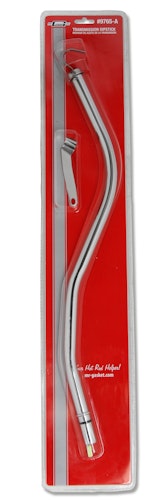

- Retail Packaging w/ Clamshell – Package Dimensions Size 5.5” Wide x 29.75” Long x 1.5” Deep
Information:
Apply oil to O-ring when installing tube. Mounting tab designed for Chevrolet transmissions and may require modification on Buick, Oldsmobile, and Pontiac transmissionsApplication Summary:
Year | Make/Model |
---|---|
1965-1970 | Avanti II |
1981-1985 | Avanti II |
1985-1990 | Bentley Continental |
1971-1980 | Bentley Corniche |
1982-1984 | Bentley Corniche |
1984 | Bentley Eight |
1986-1991 | Bentley Eight |
1981-1991 | Bentley Mulsanne |
1968-1976 | Bentley T1 Series |
1977-1980 | Bentley T2 Series |
1988-1990 | Bentley Turbo R |
1971-1973 | Buick Centurion |
1973-1977 | Buick Century |
1964-1967 | Buick Electra |
1973 | Buick Electra |
1975-1981 | Buick Electra |
1970-1981 | Buick Estate Wagon |
1965-1967 | Buick Gran Sport |
1970-1972 | Buick GS |
1964-1981 | Buick LeSabre |
1973-1977 | Buick Regal |
1964-1978 | Buick Riviera |
1978 | Buick Skyhawk |
1965-1967 | Buick Skylark |
1969 | Buick Skylark |
1965-1967 | Buick Special |
1966-1969 | Buick Sportwagon |
1964-1969 | Buick Wildcat |
1987-1990 | Cadillac Brougham |
1965-1976 | Cadillac Calais |
1964-1983 | Cadillac Commercial Chassis |
1965-1981 | Cadillac DeVille |
1964-1966 | Cadillac Eldorado |
1976-1979 | Cadillac Eldorado |
1965-1984 | Cadillac Fleetwood |
1964 | Cadillac Series 60 Fleetwood |
1964 | Cadillac Series 62 |
1964 | Cadillac Series 75 Fleetwood |
1976-1978 | Cadillac Seville |
1975-1982 | Checker Marathon |
1969-1974 | Checker Taxicab |
1965-1975 | Chevrolet Bel Air |
1965-1972 | Chevrolet Biscayne |
1969-1974 | Chevrolet Blazer |
1987-1990 | Chevrolet Blazer |
1969 | Chevrolet Brookwood |
1972 | Chevrolet Brookwood |
1975-1986 | Chevrolet C10 |
1967-1984 | Chevrolet C10 Suburban |
1988-1990 | Chevrolet C1500 |
1975-1986 | Chevrolet C20 |
1967-1986 | Chevrolet C20 Suburban |
1988-1992 | Chevrolet C2500 |
1975-1986 | Chevrolet C30 |
1988-1990 | Chevrolet C3500 |
1967-1968 | Chevrolet Camaro |
1973-1975 | Chevrolet Camaro |
1966-1969 | Chevrolet Caprice |
1972 | Chevrolet Caprice |
1975 | Chevrolet Caprice |
1965-1968 | Chevrolet Chevelle |
1970-1972 | Chevrolet Chevelle |
1966-1967 | Chevrolet Chevy II |
1967-1977 | Chevrolet Corvette |
1965-1975 | Chevrolet El Camino |
1977-1990 | Chevrolet G10 |
1975-1990 | Chevrolet G20 |
1970-1974 | Chevrolet G20 Van |
1975-1990 | Chevrolet G30 |
1965-1969 | Chevrolet Impala |
1972-1975 | Chevrolet Impala |
1977-1986 | Chevrolet K10 |
1967-1975 | Chevrolet K10 Suburban |
Attributes | |
ASIN | B072J59QRT |
Brand | Mr. Gasket, Mr. Gasket |
California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Category | Transmission |
Country of Origin (Primary) | CN |
Emission Code | 5, 5 |
Finish | Chrome, Chrome |
GTIN | 00090127002728 |
Harmonized Tariff Code (Schedule B) | 8708998180 |
Hazardous Material Code | N |
Length | 28.000 in., 25 In. |
Life Cycle Status Code | Available to Order |
Material | Steel |
NAFTA Preference Criterion Code | B |
Product Type | Dipsticks and Oil Accessories, Automatic Transmission Dipstick |
SDR Required Flag | N |
Sale Category | Transmission and Drivetrain |
Sub Category | Transmission Hard Parts |
Trans Model | GM- TH400 (Auto) 3 Speed |
Transmission | TH400, TH400 |
Transmission Type | Automatic, Automatic |
Warning | California Proposition 65, California Proposition 65 |
Warranty | Limited 90 Day, Manufacturer's Limited 90 Day Warranty |
part type | Automatic Transmission Dipstick |
Mr. Gasket 9765-A TH400 TRANSMISSION DIPSTICK
Product Information
- Brand: Mr. Gasket
- Product Number: 9765-A
