Temperature Controlled Cooling Fan Harness & Relay Kit with 185 degree temperature switch. 30 Amp Relay and Circuit Breaker.
Mr. Gasket wiring harness & relay kits protect your electrical system and provide reliable and consistent power for your high performance electric fan. These kits include high quality heavy gauge wiring, 30 amp relay, 30 amp circuit breaker, pre-wired relay connector, crimp terminals & hardware. Each kit comes with easy to follow instructions that are written specifically for that application.
- 30 AMP Relay
- Wiring Harness is 100" Long - 10-18 Ga. Wire
- 30 Amp Circuit Breaker
- 3/8" NPT Temperature Sensor w/ 1/2" NPT Reducer Bushing
- Crimp Terminals & Hardware
- Special Connector Allows Additional Relays to be Nested Together for Clean Installation

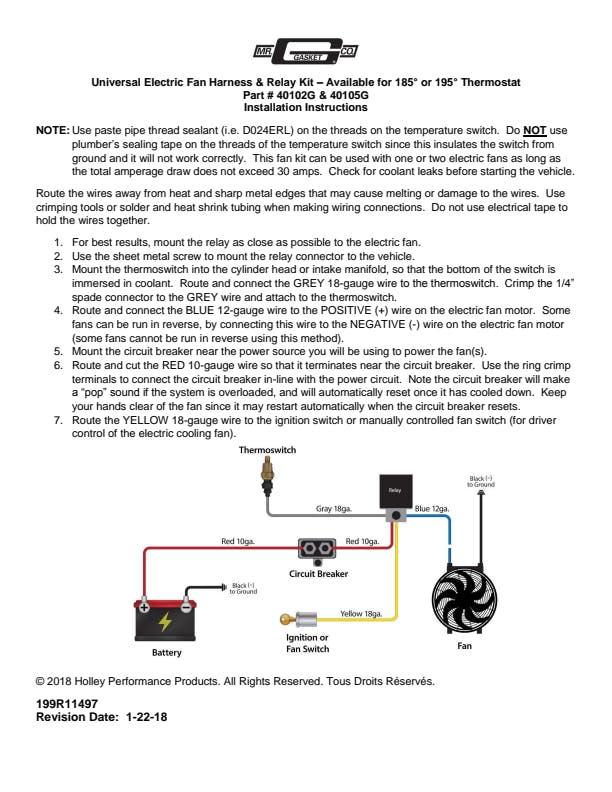

- Easy to Follow Instructions Simplify Wiring Your Electric Fan
- Temperature Switch Turns on Fan at 185 Degrees and Off at 170 Degrees
Information:
Note: Use liquid sealant only on the threads of the temperature sensor. The use of plumbers tape will insulate this sensor from ground and it will not work correctly.
Application Summary:
| Year |
Make/Model |
| Mr. |
Gasket Electric Fan Harness/Relay Kit w/185deg. Temperature Switch |
| Attributes |
| Brand |
Mr. Gasket |
| California Proposition 65 |
No |
| Category |
Belts and Cooling |
| Circuit Breaker Amperage |
30 Amps, 30 Amps |
| Circuit Breaker Amperage Rating |
30 |
| Country of Origin (Primary) |
CN |
| Emission Code |
5, 5 |
| GTIN |
00090127038314 |
| Harmonized Tariff Code (Schedule B) |
7413001000 |
| Hazardous Material Code |
N |
| Length |
100.000 in., 100" |
| Life Cycle Status Code |
Available to Order |
| NAFTA Preference Criterion Code |
B |
| Product Type |
Fan Wiring Kit, Fan Wiring Kit |
| Relay Amperage |
30, 30 Amps |
| SDR Required Flag |
N |
| Sending Unit Thread Size |
0.375 in. -18 NPT, 3/8-18 NPT |
| Sub Category |
Wire, Cable and Related Components |
| Voltage |
12 V, 12V |
| Warning |
California Proposition 65, California Proposition 65 |
| Warranty |
Limited 90 Day, Manufacturer's Limited 90 Day Warranty |
| Wiring Harness Included |
Yes, Yes |
| part type |
Engine Cooling Fan Motor Wiring Harness |
