Radio DSP Data Interface; With Pre-Wired Harness;
Metra Electronics instroduces the AX-DSP. Metra has once again set the industry standard by developing a cost effective option for customers who want ot retain their OEM radio and improve vehicle sound quality when adding amplifier and speakers. the new AX-DSP is the solution you have been waiting for by taking the fixed analog output from OE radios and converts it to multi channel analog output allowing you to easily add aftermarket amps while retaining use of OE radio controls. With our AX-DSP all connections are done behind the radio with our standard T-harness that cuts down installation time down from 16 minutes to 5 minutes. Many are aware of the problems when adding amps to a digital controlled OE system needing to add connections to the output side of your amplifier and install summing devices, processors or separate DSPS and spend hours wiring and in and in most cases trouble shooting. These types of installations can cause issues with chime levels, radio function's like fade, balance, and volume controls. With the AX-DSP you no longer need extras. The AX-DSP can save you time, money, and headaches in your installation by just making a few connections. Setup is just as easy as installation, simply download our free Axxess AX-DSP app from apple or android store to get started. What really makes the AX-DSP unique is the ability to connect and control the features of the DSP via Bluetooth low energy. The features that are controlled through BLE are vehicle selection and setup controls. There you will have the ability to select high or low level inputs, crossover adjustments for front, rear and subwoofer, 31 bands of equalization for the front, rear and subwoofer, Separate time delay adjustments, and our patented chime cooling technology.
Metra Electronics instroduces the AX-DSP. Metra has once again set the industry standard by developing a cost effective option for customers who want ot retain their OEM radio and improve vehicle sound quality when adding amplifier and speakers. the new AX-DSP is the solution you have been waiting for by taking the fixed analog output from OE radios and converts it to multi channel analog output allowing you to easily add aftermarket amps while retaining use of OE radio controls. With our AX-DSP all connections are done behind the radio with our standard T-harness that cuts down installation time down from 16 minutes to 5 minutes. Many are aware of the problems when adding amps to a digital controlled OE system needing to add connections to the output side of your amplifier and install summing devices, processors or separate DSPS and spend hours wiring and in and in most cases trouble shooting. These types of installations can cause issues with chime levels, radio function's like fade, balance, and volume controls. With the AX-DSP you no longer need extras. The AX-DSP can save you time, money, and headaches in your installation by just making a few connections. Setup is just as easy as installation, simply download our free Axxess AX-DSP app from apple or android store to get started. What really makes the AX-DSP unique is the ability to connect and control the features of the DSP via Bluetooth low energy. The features that are controlled through BLE are vehicle selection and setup controls. There you will have the ability to select high or low level inputs, crossover adjustments for front, rear and subwoofer, 31 bands of equalization for the front, rear and subwoofer, Separate time delay adjustments, and our patented chime cooling technology.
- 31 Band Graphic Eq
- Independent Equalization On Each Of The 10 Outputs
- Each Channel Can Be Delayed Independently Up To 10ms
- Retains Factory Parking Sensor Chimes
- 6 Inputs 10 Individually Assignable Outputs
- Easy Behind The Radio Installation With Prewired Harness
- Can Be Used In Amplified And Non-Amplified Models
- Bass Knob Included For Level Control of Subwoofer Amp
Application Summary:
| Year | Make/Model |
|---|---|
| 2011-2021 | Ford Edge |
| 2014-2021 | Ford F-150 |
| 2011-2019 | Ford Fiesta |
| 2013-2019 | Ford Flex |
| 2012-2018 | Ford Focus |
| 2013-2020 | Ford Fusion |
| 2015-2021 | Ford Mustang |
| 2015-2019 | Ford Taurus |
| Attributes | |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Country of Origin (Primary) | US |
| Emission Code | Legal US |
| GTIN | 00086429386574 |
| Harmonized Tariff Code (Schedule B) | 8544429000 |
| Hazardous Material Code | N |
| Life Cycle Status Code | Available to Order |
| NAFTA Preference Criterion Code | B |
| SDR Required Flag | N |

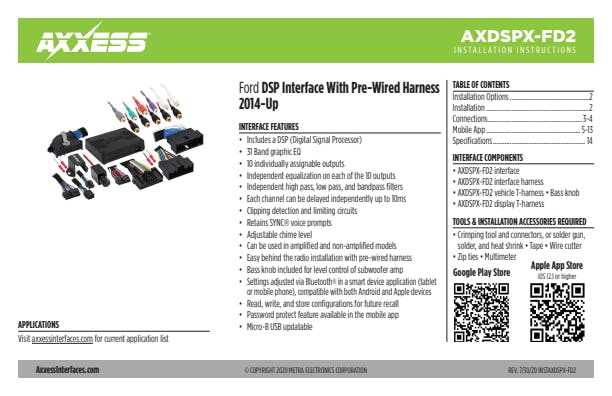

Metra Electronics AXDSPX-FD2 Radio DSP Data Interface
Product Information
- Brand: Metra Electronics
- Product Number: AXDSPX-FD2
