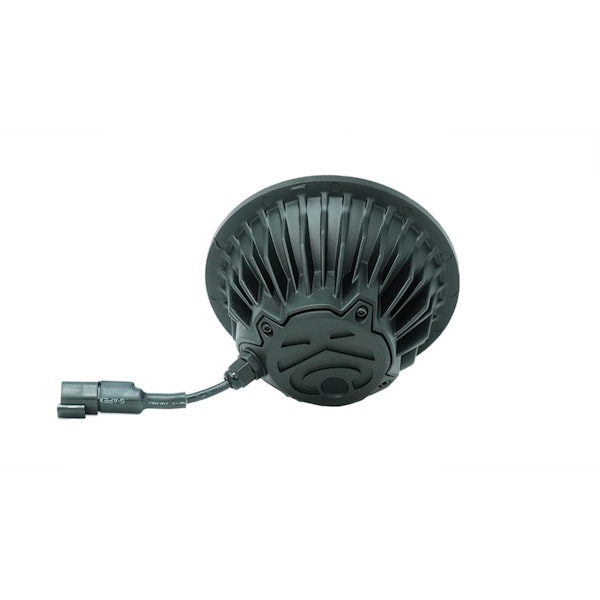

Gravity LED Pro6 Optical Insert Single - Wide-40 Beam
The KC 89055A 6" Gravity LED Insert is used as a replacement or upgrade to existing Pro6 single lights or light bars. Features efficient 5000K LEDs in Wide-40 beam pattern, for maximum horiztonal coverage. FEATURES: 20W Gravity LED G6 Optical Insert, Aluminum Housing, Hard Coated Polycarbonate Lens, Wide-40 Beam Pattern, 2-Pin Deutsch (DT) connector. LIGHT PERFORMANCE (PER LIGHT): Raw Lumens: 2,300 lm, Lux @ 10 Meters: 390 lx, Candela: 39,000 cd, Beam Distance (Meters): 395m, SPECIFICATIONS (PER LIGHT): Wattage: 20W, Amp Draw: 1.63A, Voltage: 9V-32V, IP Rating: IP68, Product Dimensions: W- 5.68" x H- 5.66" x D- 3.32",GRAVITY EXTREME OUTPUT AND EFFICIENCY: Gravity G6 LED optical inserts deliver an incredible 390 lx @ 10m, in a super wide, wide-40 beam pattern. Our patented GRD (Gravity Reflective Diode) system aims the LEDs into the precision reflectors, capturing all the light and projecting it forward. AVAILABLE BEAM PATTERN AND ADVANTAGES: Wide-40- Provides a wider and higher beam spread compared to our street legal fog beam patterns, while improving forward beam distance. STRENGTH and DURABILITY: With an IP68-rated sealed aluminum reflector housing and durable polycarbonate lens to create a self-contained LED light for maximum reliability and durability.
The KC 89055A 6" Gravity LED Insert is used as a replacement or upgrade to existing Pro6 single lights or light bars. Features efficient 5000K LEDs in Wide-40 beam pattern, for maximum horiztonal coverage. FEATURES: 20W Gravity LED G6 Optical Insert, Aluminum Housing, Hard Coated Polycarbonate Lens, Wide-40 Beam Pattern, 2-Pin Deutsch (DT) connector. LIGHT PERFORMANCE (PER LIGHT): Raw Lumens: 2,300 lm, Lux @ 10 Meters: 390 lx, Candela: 39,000 cd, Beam Distance (Meters): 395m, SPECIFICATIONS (PER LIGHT): Wattage: 20W, Amp Draw: 1.63A, Voltage: 9V-32V, IP Rating: IP68, Product Dimensions: W- 5.68" x H- 5.66" x D- 3.32",GRAVITY EXTREME OUTPUT AND EFFICIENCY: Gravity G6 LED optical inserts deliver an incredible 390 lx @ 10m, in a super wide, wide-40 beam pattern. Our patented GRD (Gravity Reflective Diode) system aims the LEDs into the precision reflectors, capturing all the light and projecting it forward. AVAILABLE BEAM PATTERN AND ADVANTAGES: Wide-40- Provides a wider and higher beam spread compared to our street legal fog beam patterns, while improving forward beam distance. STRENGTH and DURABILITY: With an IP68-rated sealed aluminum reflector housing and durable polycarbonate lens to create a self-contained LED light for maximum reliability and durability.
| Attributes | |
| California Proposition 65 | No |
| Country of Origin (Primary) | TW |
| DOT | No |
| DOT Compliant | No |
| Harmonized Tariff Code (Schedule B) | 8512202040 |
| Hazardous Material Code | N |
| Life Cycle Status Code | Available to Order |
| NAFTA Preference Criterion Code | B |
| SAE/ECE | No |
| SAE/ECE Compliant | No |
| SDR Required Flag | N |
KC Hilites 89055A Gravity LED Pro6 Optical Insert Single - Wide-40 Beam
Product Information
- Brand: KC Hilites
- Product Number: 89055A
