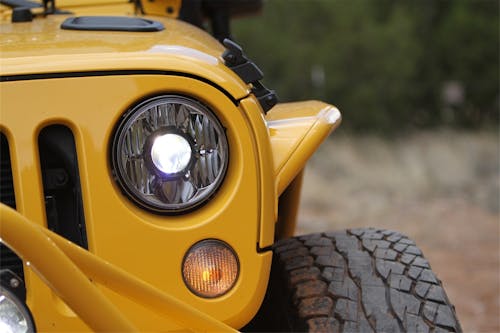

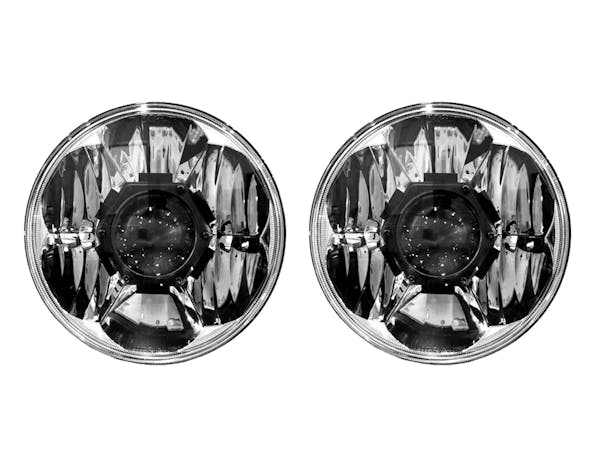

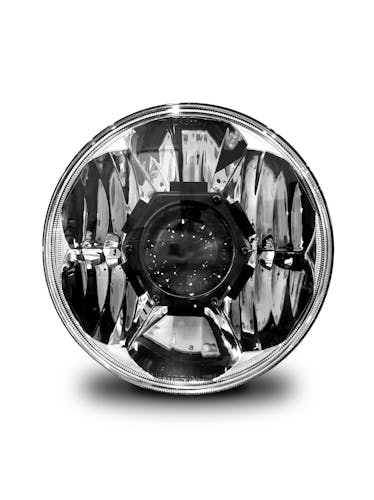

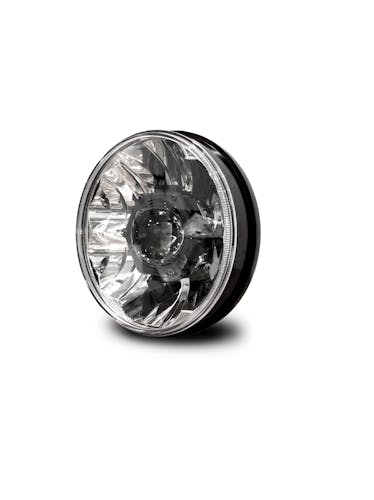

KC's Gravity LED Pro 7" Jeep JK Headlights feature bright CREE LEDs for DOT low/high beams on 07-18 JKs. Diecast aluminum housing and polycarbonate lens for optimal performance. High/Low beams with built-in DRL, and anti-flicker capacitors.

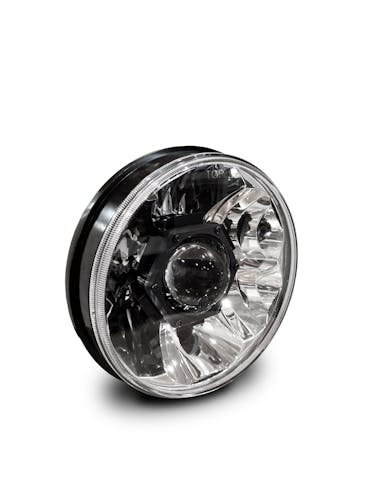

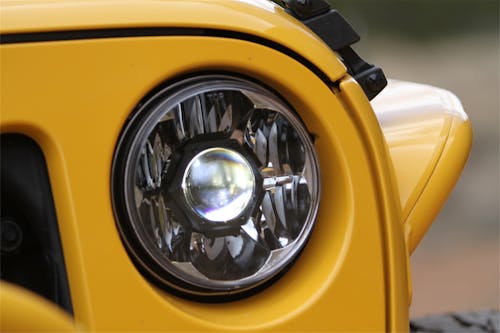

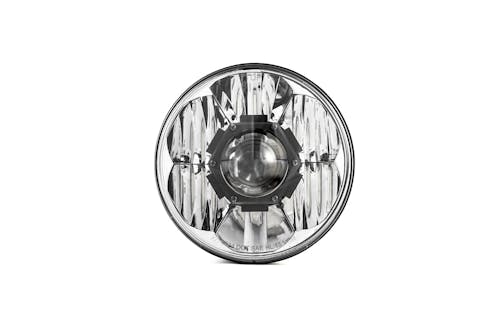

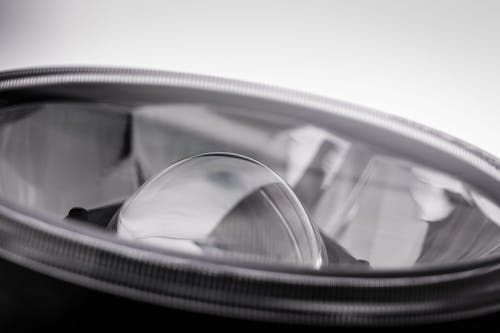

The Gravity(R) LED Pro 7 in Headlight features KC's patented Gravity GRD technology, which is engineered to direct every lumen from powerful LEDs into usable light output. The Gravity(R) LED Pro 7 in Headlight uses a durable die-cast housing and Polycarbonate lens, to tolerate the harshest climates and conditions. The Gravity(R) LED Pro 7 in headlight uses KC's patented Gravity(R) Projector Optic (GPO). Utilizing this proprietary projector lens technology along with a GRD LED core, KC engineers were able to deliver a more controlled beam pattern while setting new industry standards in light shape, clarity and output.
  • DOT Compliant Low and High Beam with built-in Daytime Running Light
  • KC Engineered Polished Reflector Optics
  • HIGH/LOW/DRL FUNCTION
  • Hard Coated Polycarbonate Lens

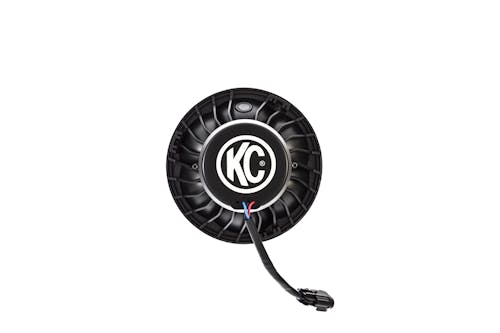

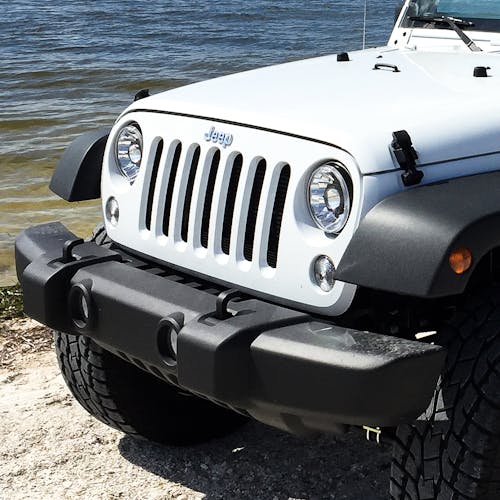

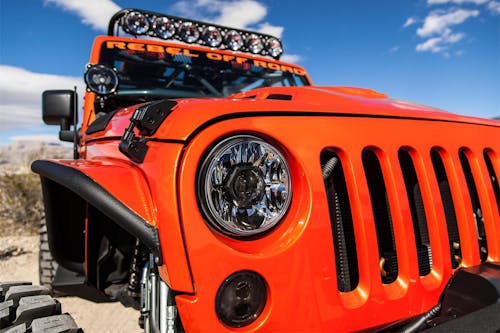

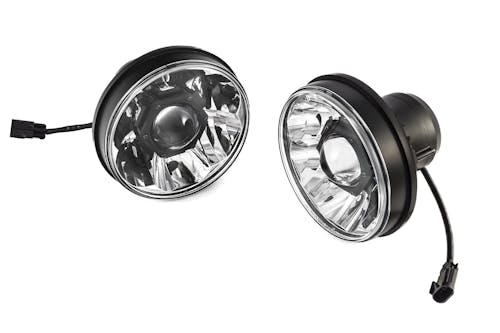

  • Plug-n-Play for Jeep Wrangler JK

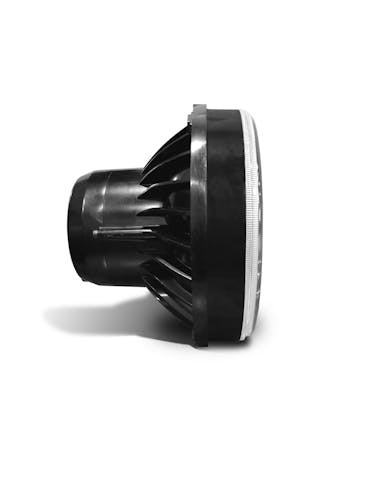

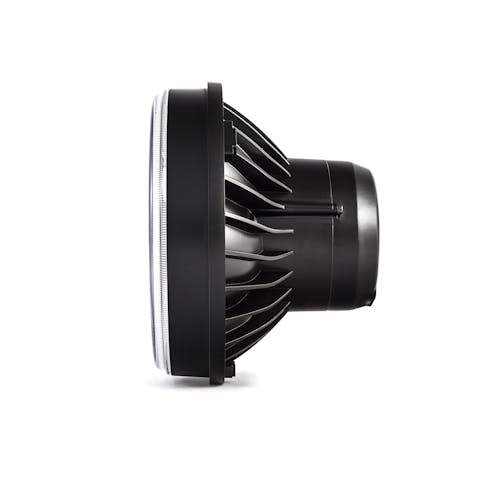

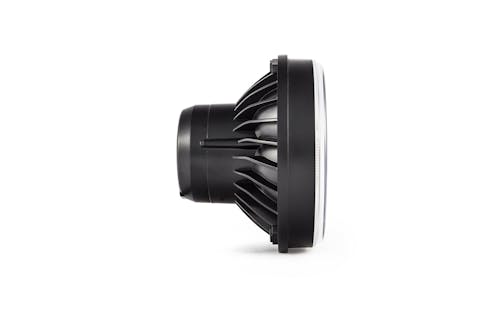

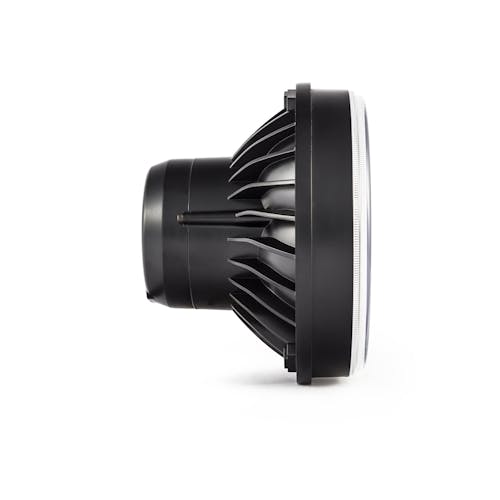

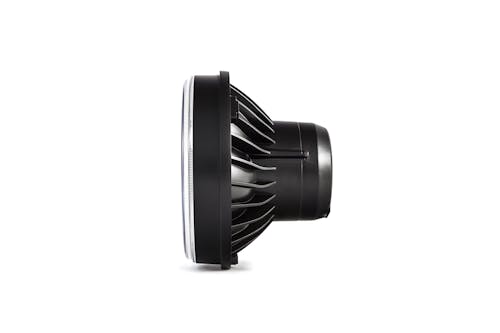

  • Precision Die-Cast Aluminum Housing
  • Plug-n-Play for Jeep JK

Information:

Lens depth will not fit in certain aftermarket grilles, such as the Angry Eye

Application Summary:

Year Make/Model

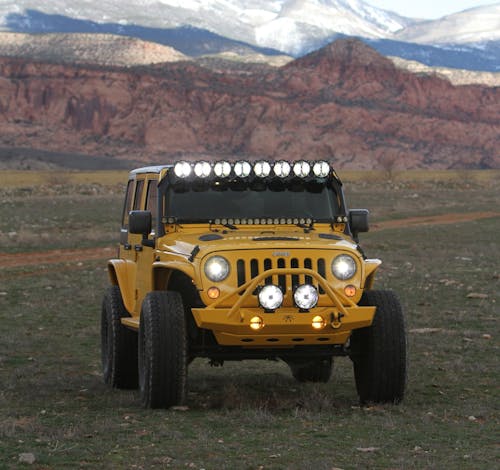

2007-2013 Jeep Wrangler
2015-2017 Jeep Wrangler
2018 Jeep Wrangler JK
Attributes
AMP Draw 1.88A
ASIN B01DNK7C7C
Add-On N/A
Application Automotive
Beam Distance Low- 400m, High- 529m
Beam Distance (Meters) Low 400m, High 529m
Beam Pattern Headlight
Beam Style Projection
Bulb Technology LED
Bulb Type LED
California Proposition 65 No
Candela Low- 40,000 Cd, High- 70,000 Cd
Color Temp 5000K
Color Temperature 5000K
Country of Origin (Primary) TW
GTIN 00084709423414
Harmonized Tariff Code (Schedule B) 8512202000
Hazardous Material Code N
Housing Color Silver
Housing Shape Round
IP Rating IP68
LED Bulb CREE
LED Source CREE XPL/XPG2
LUX Low- 400, High- 700
Life Cycle Status Code Available to Order
Light Color White
Light Temp 5000K
Lumens 2967
Lux at 10 Meters Low 400 lx, High 700 lx
Lux at 10 Meters Low 400 lx, High 700 lx
NAFTA Preference Criterion Code B
Product Dimensions W 6.96 in x D 5.098

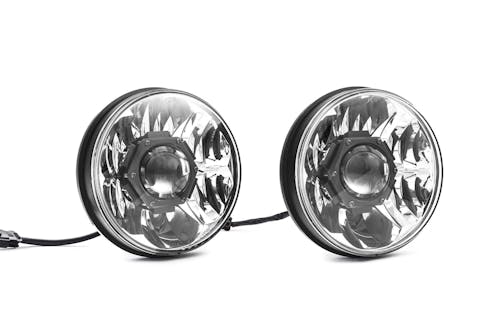

Quantity Sold 2
Raw Lumens Low- 2,967 lm, High- 2,575 lm, DRL- 386 lm
SDR Required Flag N
Voltage 9V-18V
Warranty Time 5
Wattage Low- 20W, High- 30W,DRL- 1.35W
