Fits 2020-2025 Jeep Gladiator trucks with 3.6L engine, 409 Stainless Steel, Dual Exit with Polished Tips - Aggressive sound

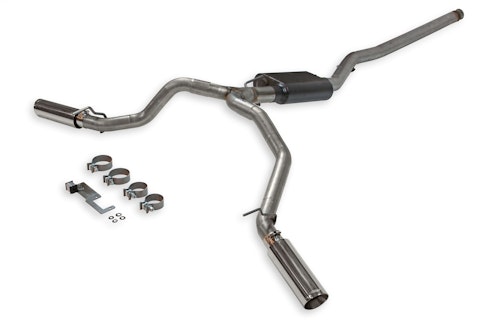

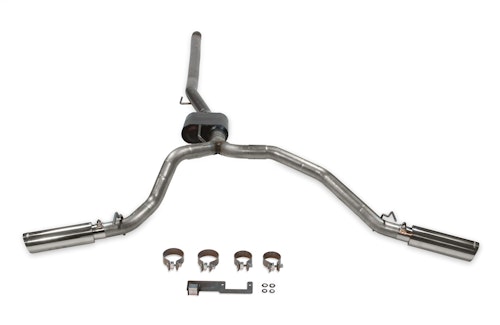

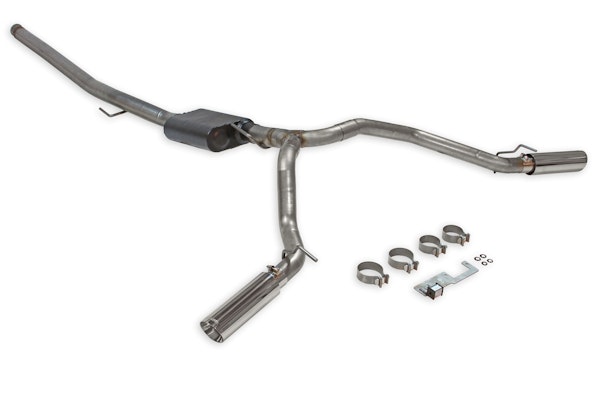

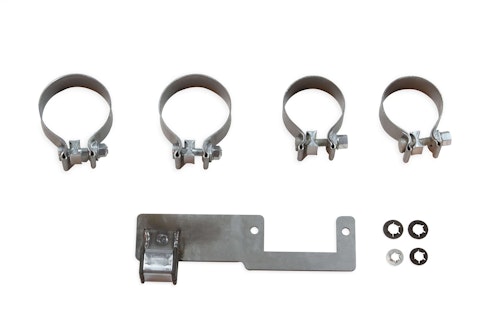

Introducing our American Thunder® cat-back exhaust system for 2020-2025 Jeep Gladiator trucks with the 3.6L engine. The mandrel-bent stainless steel exhaust system has a large 3.00-inch inlet tube flowing into a Super 44™ Series muffler providing a deep moderately aggressive exterior sound with a moderate interior tone. The 2.50-inch mandrel-bent dual tailpipes are routed to clear the factory spare tire and exits behind the rear wheels for a muscular look and sound. The tailpipes attach to the factory hanger locations for easy installation and are finished off with a pair of 3.50-inch polished 304 stainless steel tips embossed with the Flowmaster® logo. Includes all necessary parts, hardware and detailed instructions for an easy installation you can do at home. Covered by our Lifetime Limited Warranty.
  • Mandrel-bent 16 Gauge Stainless Steel Tubing
  • Polished 3.50-inch Stainless Steel Tips

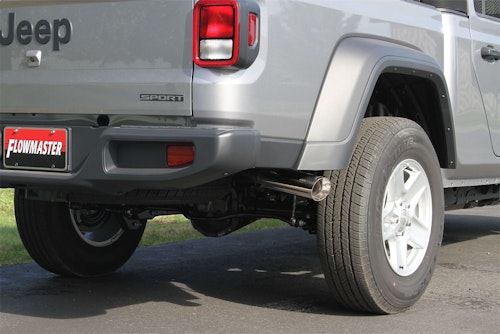

  • Side Exit Tailpipes are Ideal for Towing
  • Uses the Factory Hanger Locations
  • Deep Powerful Exterior Sound
  • Super 44 Performance Muffler
  • Stainless Steel Construction
  • Lifetime Limited Warranty
  • Clears Factory Spare Tire

Information:

Fits all 2020-2025 Jeep Gladiator Trucks with the 3.6L engine.

Application Summary:

Year Make/Model
2020-2025 Jeep Gladiator
Attributes
Brand Flowmaster
California Proposition 65 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Catalytic Converter Included No, No
Catalytic Converter Quantity Not Included
Category Exhaust, Exhaust
Country of Origin (Primary) US
Emission Code 5, 5
Exhaust Series American Thunder, American Thunder
Exhaust System Kit Type Cat-Back, Cat-Back
Exhaust Tip Diameter 3.50
Exhaust Tip Length 13.00
Exhaust Type Cat-Back
Exit Position Dual Out Side, Dual Out Side
GTIN 00700042039647
Harmonized Tariff Code (Schedule B) 8708925000
Hazardous Material Code N
Heat Shield No, No
Inlet Inside Diameter 3.000 in.
Life Cycle Status Code Available to Order
Main Piping Diameter 2-1/2
Material 409S Stainless Steel, 409 Stainless Steel
Mount Type Uses Factory Hangers, Uses Factory Hangers
Muffler Body Height 4.00
Muffler Body Length 13.000 in., 13.25
Muffler Body Length (in) 13
Muffler Body Width 9.50
Muffler Color Black, Black
Muffler Inlet Diameter 3, 3.00
Muffler Inlet Inside Diameter 3.00
Muffler Inlet Location Centered, Center
Muffler Inlet Outside Diameter 3.13
Muffler Material 409S Stainless Steel, 409 Stainless Steel
Muffler Outlet Diameter 3, 3.00
Muffler Outlet Location Offset, Offset
Muffler Overall Length 19.00, 19.00
Muffler Overall Length (in) 19
Muffler Part Number Kit Only, Kit Only
Muffler Series Super 44, Super 44
Muffler Shape Oval, Oval
NAFTA Preference Criterion Code B
Product Type Exhaust System, Exhaust System
SDR Required Flag N
Series American Thunder Exhaust Systems
Single Dual Dual, Dual
Sound Level Aggressive, Aggressive
Sub Category Exhaust and Tail Pipes, Exhaust and Tail Pipes
Subcategory Cat-Back Exhaust Kits
System Type Cat-back, Cat-back
Tail Pipe Diameter 3.500 in.
Tail Pipe Outlet Outside Diameter 2.50
Tip Cut Angle, Angle
Tip Diameter 3.000 in., 3.5
Tip Edge Style Cut, Cut
Tip Finish Polished, Polished
Tip Length 13, 13.00
Tip Logo Embossed, Embossed
Tip Material 304 Stainless, 304 Stainless Steel
Tip Quantity 2, 2
Tubing Diameter 2.500 in., 2.50
Tubing Diameter (IN) 2.5
Tubing Material 409S Stainless Steel, 409 Stainless Steel
Warning California Proposition 65, California Proposition 65
part type Exhaust System Kit, Exhaust System Kit
