Fits 2018-2023 Mustang GT 5.0L with Factory Active Performance Exhaust Valves. - Aggressive to moderate sound

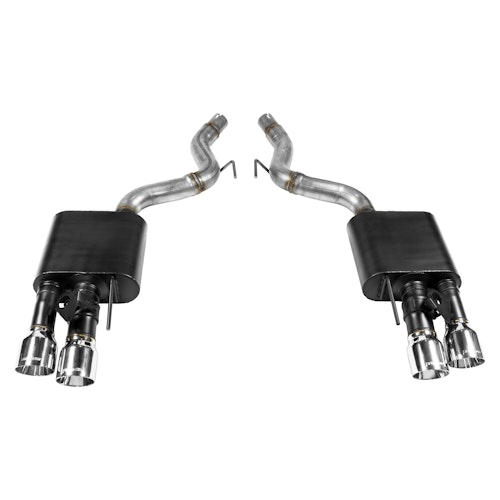

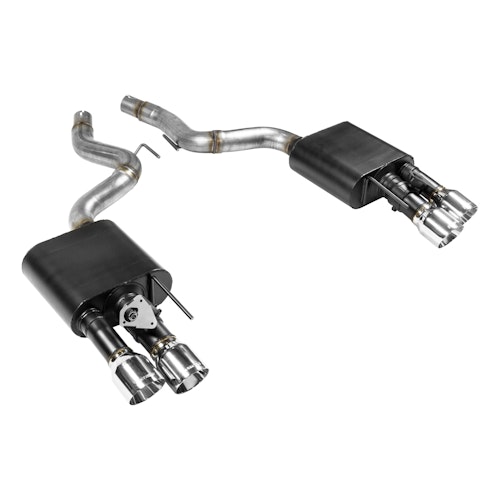

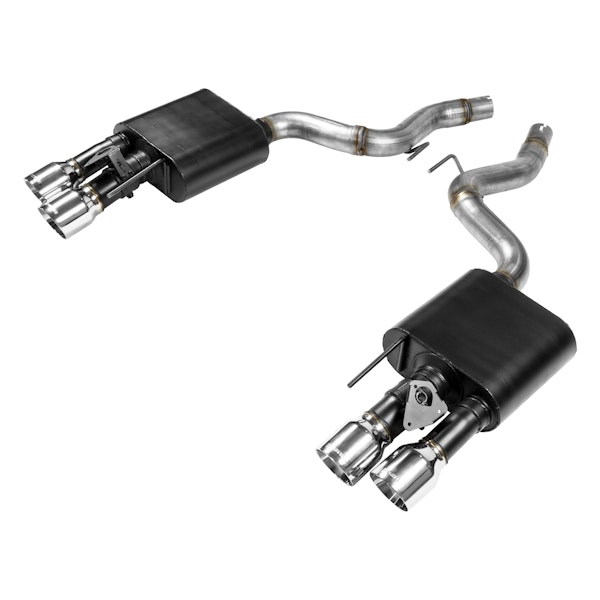

This Flowmaster® American Thunder® Axle-back exhaust system is for 2018-2023 Ford Mustang GT coupes and convertibles with the 5.0L engine and Factory Active Performance Exhaust Option. System features include a pair of specially designed Outlaw® series mufflers giving you high flow with a moderately aggressive exterior and interior tone when the valves are closed, and an aggressive "wide open" exterior sound level when you open up the valves. Other features include large 3.00-inch mandrel-bent 409S stainless steel tubing for high flow, durability, and longevity. Add to that, a pair of our high-quality valves to accommodate the factory exhaust actuators for when you really want to open up the sound. The system is finished off with quad 4.00-inch polished 304 stainless steel tips for an aggressive look that demands attention, the same as the exhaust note. Includes all necessary parts, hardware and detailed instructions for an easy installation you can do at home. Covered by our Lifetime Limited Warranty. Note: Fits both coupes and convertibles.
- Quad 4.00-inch Polished 304 Stainless Steel Tips
- For Vehicles With Active Performance Exhaust Option
- Aggressive Race-proven Outlaw Mufflers
- Dyno Tuned for Maximum Performance
- Uses the Factory Hanger Locations
- Full Stainless Steel Construction
- Straight-through Muffler Design
- Lifetime Limited Warranty
- Easy Installation
Information:
Fits 2018-2023 Mustang GT 5.0L Coupes & Convertibles with Factory Active Performance Exhaust Valves.
Application Summary:
| Year |
Make/Model |
| 2018-2023 |
Ford Mustang |
| Attributes |
| Brand |
Flowmaster, Flowmaster |
| Bullet Point #1 |
Stailess Steel Construction |
| Bullet Point #2 |
Dyno Tuned for Maximum Performance |
| Bullet Point #3 |
Aggressive Race Proven Outlaw Mufflers |
| Bullet Point #4 |
Works With Active Performance Exhaust Option |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Catalytic Converter Included |
No, No |
| Category |
Exhaust, Exhaust |
| Country of Origin (Primary) |
US |
| Emission Code |
5, 5 |
| Exhaust Series |
American Thunder, American Thunder |
| Exhaust Tip Length |
5.25 |
| Exhaust Type |
Axle-Back |
| Exit Position |
Dual Out Rear, Dual Out Rear |
| GTIN |
00700042037766 |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Hazardous Material Code |
N |
| Heat Shield |
No, No |
| Heat Shield Attached |
No |
| Inlet Inside Diameter |
3.000 in. |
| Life Cycle Status Code |
Available to Order |
| Material |
409 Stainless Steel, 409 Stainless Steel |
| Mount Type |
Uses Factory Hangers, Uses Factory Hangers |
| Muffler (Left) Body Height |
5.00 |
| Muffler (Left) Body Width |
12.00 |
| Muffler (Right) Body Height |
5.00 |
| Muffler (Right) Body Width |
12.00 |
| Muffler Body Height |
5.00 |
| Muffler Body Length |
11.000 in. |
| Muffler Body Length (in) |
11 |
| Muffler Body Length (in.) |
11.000 |
| Muffler Body Material |
409S Stainless Steel |
| Muffler Body Shape |
Oval |
| Muffler Body Width |
12.00 |
| Muffler Color |
Black, Black |
| Muffler Count |
2 |
| Muffler Finish |
Painted |
| Muffler Inlet Diameter |
3.000 in., 3.00 |
| Muffler Inlet Diameter (in) |
3 |
| Muffler Inlet Diameter (in.) |
3.000 |
| Muffler Inlet Inside Diameter |
3.00 |
| Muffler Inlet Location |
Side, Side |
| Muffler Inlet Outside Diameter |
3.13 |
| Muffler Material |
409S Stainless Steel, 409 Stainless Steel |
| Muffler OA Length |
49.5 |
| Muffler Outlet Diameter |
3.000 in., 3.00 |
| Muffler Outlet Diameter (in) |
3 |
| Muffler Outlet Diameter (in.) |
3.000 |
| Muffler Outlet Location |
Dual, Dual |
| Muffler Overall Length |
49.500 in., 49.50 |
| Muffler Overall Length (in) |
49.5 |
| Muffler Overall Length (in.) |
49.500 in. |
| Muffler Part Number |
Kit Only, Kit Only |
| Muffler Quantity |
2 |
| Muffler Series |
60 Series, 60 Series |
| Muffler Shape |
Oval, Oval |
| Muffler Type |
Reflection |
| NAFTA Preference Criterion Code |
B |
| Product Type |
Exhaust Systems / Kits, Exhaust System |
| SDR Required Flag |
N |
| SDS Sheet Number |
N |
| Series |
American Thunder Exhaust Systems |
| Single Dual |
Dual, Dual |
| Single or Dual |
Dual |
| Sound Level |
Moderate/Aggressive, Aggressive / Moderate |
| Sub Category |
Exhaust and Tail Pipes, Exhaust and Tail Pipes |
| Subcategory |
Cat-Back Exhaust Kits |
| System Type |
Axle Back, Axle-back |
| Tail Pipe Diameter |
3.000 in. |
| Tail Pipe Outlet Outside Diameter |
2.50 |
| Tip Cut |
Angle, Angle |
| Tip Diameter |
4.000 in., 4.00 |
| Tip Diameter (in) |
4 |
| Tip Diameter (in.) |
4 |
| Tip Edge Style |
Cut, Cut |
| Tip Finish |
Polished, Polished |
| Tip Length |
5.250 in., 5.25 |
| Tip Length (in) |
5.25 |
| Tip Length (in.) |
5.25 |
| Tip Logo |
Embossed, Embossed |
| Tip Material |
304 Stainless Steel, 304 Stainless |
| Tip Quantity |
4, 4 |
| Tip Shape |
Round |
| Tip Style |
Double wall |
| Tip Type |
Double Wall |
| Tubing Diameter |
3.000 in., 3.00 |
| Tubing Diameter (IN) |
3 |
| Tubing Material |
409S Stainless Steel, 409 Stainless Steel |
| Type |
Axle-Back, Axle-Back |
| Valve Actuator Included |
No, Reuse OEM, No, Reuse OEM |
| Warning |
California Proposition 65, California Proposition 65 |
| part type |
Exhaust System Kit, Exhaust System Kit |
