Fits 1996-1999 Chevrolet Silverado, GMC Sierra 1500 trucks with 5.7L engine - Moderate sound
For the person who wants the look of a traditional dual exhaust system with all the benefits that a Flowmaster® cat-back exhaust system provides. The American Thunder® exhaust systems are the perfect choice for the person wanting a deep powerful tone outside, with a mild to moderate increase of sound inside the cab. The exhaust system features a dual inlet flange that attaches to the factory flange behind the catalytic converters, all mandrel-bent stainless steel tubing flowing into a Scavenger Series Y-pipe for maximum scavenging of exhaust resulting in increased torque. The system then flows into a 70 Series™ "Big Block II" performance muffler giving you a deep powerful tone outside, and mild to moderate interior tone inside the cab. The dual tailpipes can be configured for either dual out the rear under the bumper for a muscular look, or dual out the sides behind the rear wheels, which is ideal for towing applications. The tailpipes are then finished off with a pair of 3.00-inch polished 304 stainless steel tips. Like all Flowmaster systems, the benefits include improved throttle response, power and mileage. Designed for an easy fit, these systems include all necessary parts and hardware for an easy installation and is covered by our Lifetime Limited Warranty. Note: Fits 2 and 4 wheel drives with the extended cab/shortbed chassis.

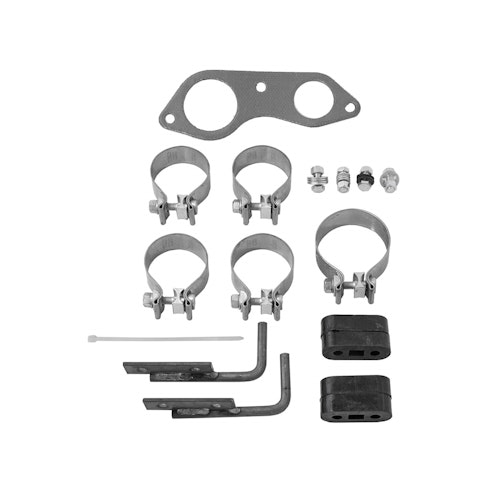

- Includes Hangers and Hardware for an Easy Installation
- 70 Series Performance Muffler
- Lifetime Limited Warranty
- Includes all Hardware
- Easy Installation
- Mandrel-bent 16-gauge Stainless Steel Tubing
- Dual 3.00-inch Polished Stainless Steel Tips
- Connects After Factory Catalytic Converter
- Covered by our Lifetime Limited Warranty
- Deep Powerful Exterior Exhaust Tone
- Uses the Factory Hanger Locations
Information:
Fits 1996-1999 Chevrolet Silverado, GMC Sierra 1500 trucks with the 5.7L engine using dual catalytic converters, fits extended cab/short bed configuration.
Application Summary:
| Year |
Make/Model |
| 1996-1999 |
Chevrolet C1500 |
| 1996-1999 |
Chevrolet K1500 |
| 1996-1999 |
GMC C1500 |
| 1996-1998 |
GMC K1500 |
| Attributes |
| 2WD/4WD |
2WD, 4WD |
| ASIN |
B005CUG1WY |
| Brand |
Flowmaster |
| Bullet Point #1 |
Mandrel bent 16 gauge stainless steel tubing |
| Bullet Point #2 |
Moderate Sound exterior exhaust tone |
| Bullet Point #3 |
Includes hangers and hardware for easy installation |
| Bullet Point #4 |
Connects After Factory Catalytic Converter |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Catalytic Converter Quantity |
Not Included |
| Category |
Exhaust |
| Country of Origin (Primary) |
US |
| Emission Code |
5 |
| Exhaust Series |
American Thunder |
| Exhaust System Kit Type |
Cat-Back |
| Exhaust Type |
Single |
| Exit Position |
Dual Rear Same Side, Dual Out Rear / Dual Out Side |
| Exit Style |
Straight |
| GTIN |
00700042024636 |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Hazardous Material Code |
N |
| Heat Shield |
No |
| Heat Shield Attached |
No |
| Inlet Diameter |
2.000 in., 2.00 |
| Inlet Diameter (in) |
2 |
| Inlet Inside Diameter |
N/A |
| Inlet Inside Diameter (in.) |
N/A |
| Inlet Size (in.) |
N/A |
| Life Cycle Status Code |
Available to Order |
| Main Piping Diameter |
2-1/2 |
| Material |
Stainless Steel, 409 Stainless Steel |
| Muffler Count |
1 |
| Muffler Part Number |
Kit Only |
| Muffler Quantity |
1 |
| Muffler Series |
70 Series Big Block |
| Muffler Type |
Chambered |
| NAFTA Preference Criterion Code |
B |
| Outlet Diameter |
2.500 in., 2.50 |
| Outlet Diameter (in) |
2.5 |
| Outlet Outside Diameter |
2.500 in. |
| Outlet Outside Diameter (in.) |
2.5 |
| Outlet Size (in.) |
2.5 |
| Product Type |
Exhaust Systems / Kits, Exhaust System |
| SDR Required Flag |
N |
| SDS Sheet Number |
N |
| Series |
American Thunder Exhaust Systems |
| Single Dual |
Dual |
| Single or Dual |
Dual |
| Sound Level |
Moderate |
| Sub Category |
Exhaust and Tail Pipes |
| Subcategory |
Cat-Back Exhaust Kits |
| System Type |
Cat Back, Cat-back |
| Tail Pipe Diameter |
2.500 in. |
| Tip Diameter |
3.000 in., 3.00 |
| Tip Diameter (in) |
3 |
| Tip Diameter (in.) |
3 |
| Tip Quantity |
2 |
| Tip Size |
3 in. |
| Tubing Diameter |
2.500 in., 2.50 |
| Tubing Diameter (IN) |
2.5 |
| Warning |
California Proposition 65 |
| Warranty Time |
12 |
| part type |
Exhaust System Kit |
