2001-2006 Chevrolet Suburban, Avalanche and GMC Yukon XL 1500 with 5.3L engine. Stainless Steel - Aggressive to moderate sound

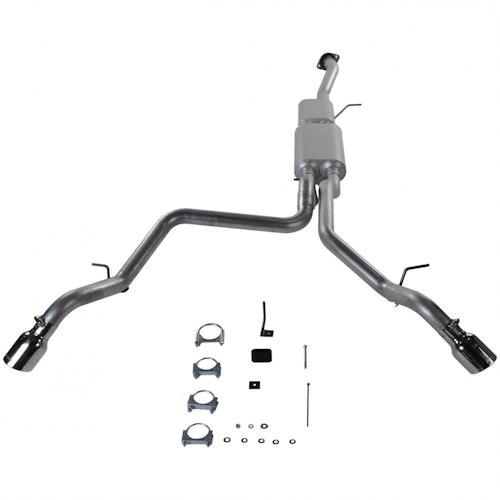

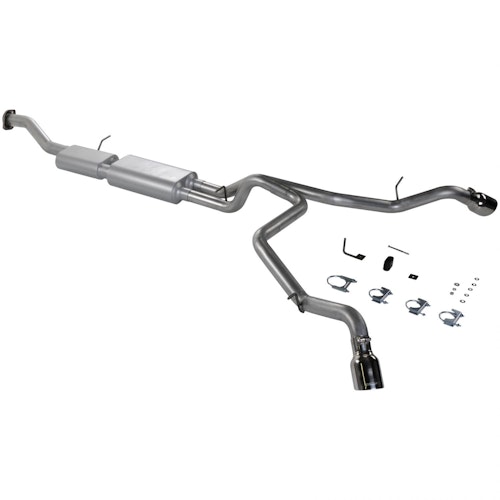

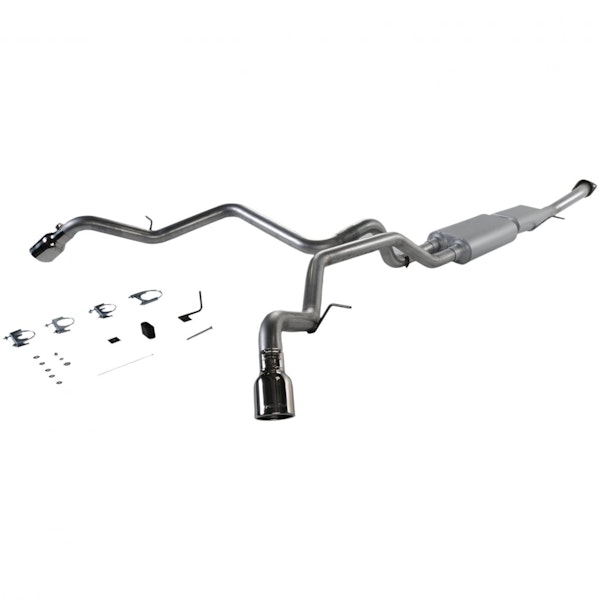

This American Thunder system fits 2001-2006 GM Suburban, Avalanche and Yukon XL 1500 SUV's and increases the horsepower, torque and mileage of these popular trucks. The exhaust system is constructed from 16-gauge mandrel-bent stainless steel and has a flanged resonator assembly flowing into a specially tuned resonator and a Super 50 Series performance muffler producing a mild to moderate interior tone and a deep exterior sound. The dual 2.50-inch tailpipes exit out the side of the vehicle behind the rear tires and are finished off with large pair of 4.00-inch polished 304 stainless tips. All necessary parts and hardware are included for a great fitting installation and is covered by Limited Lifetime Warranty.
- Includes Hangers and Hardware for an Easy Installation
- Performance Look of Duals
- Lifetime Limited Warranty
- Moderate Exterior Exhaust Note with Mild Interior Tone
- Dual 4.00-inch Polished 304 Stainless Steel Tips
- Mandrel-bent 16-gauge Stainless Steel Tubing
- Connects After Factory Catalytic Converter
- Super 50 Series Performance Muffler
- Includes Specially Tuned Resonator
- Uses the Factory Hanger Locations
Information:
Does Not Fit with Auto-Leveling Option.
Application Summary:
| Year |
Make/Model |
| 2002-2006 |
Chevrolet Avalanche 1500 |
| 2001-2006 |
Chevrolet Suburban 1500 |
| 2001-2006 |
GMC Yukon XL 1500 |
| Attributes |
| 2WD/4WD |
2WD, 4WD |
| ASIN |
B005CUGB42 |
| Brand |
Flowmaster |
| Bullet Point #1 |
Mandrel bent 16 gauge stainless steel tubing |
| Bullet Point #2 |
Moderate Sound exterior exhaust tone |
| Bullet Point #3 |
Includes hangers and hardware for easy installation |
| Bullet Point #4 |
Connects After Factory Catalytic Converter |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Catalytic Converter Quantity |
Not Included |
| Category |
Exhaust |
| Country of Origin (Primary) |
US |
| Emission Code |
5 |
| Exhaust Series |
American Thunder |
| Exhaust System Kit Type |
Cat-Back |
| Exhaust Tip Length |
7.5 |
| Exhaust Type |
Single |
| Exit Position |
Dual Side, Dual Side Exit |
| Exit Style |
Turn Out |
| GTIN |
00700042024896 |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Hazardous Material Code |
N |
| Heat Shield |
No |
| Heat Shield Attached |
No |
| Inlet Diameter |
3.000 in., 3.00 |
| Inlet Diameter (in) |
3 |
| Inlet Inside Diameter |
2.500 in. |
| Inlet Inside Diameter (in.) |
2.5 |
| Inlet Size (in.) |
2.5 |
| Life Cycle Status Code |
Available to Order |
| Main Piping Diameter |
2-1/2 |
| Material |
Stainless Steel, 409 Stainless Steel |
| Muffler Body Height |
5.00 |
| Muffler Body Length |
17.25 |
| Muffler Body Width |
10.00 |
| Muffler Count |
1 |
| Muffler Inlet Inside Diameter |
3.00 |
| Muffler Inlet Outside Diameter |
3.13 |
| Muffler Part Number |
Kit Only |
| Muffler Quantity |
1 |
| Muffler Series |
Super 50 Series |
| Muffler Type |
Chambered |
| NAFTA Preference Criterion Code |
B |
| Outlet Diameter |
2.500 in., 2.50 |
| Outlet Diameter (in) |
2.5 |
| Outlet Outside Diameter |
2.500 in. |
| Outlet Outside Diameter (in.) |
2.5 |
| Outlet Size (in.) |
2.5 |
| Product Type |
Exhaust Systems / Kits, Exhaust System |
| Resonator (Front) Body Height |
4.00 |
| Resonator (Front) Body Length |
12.25 |
| Resonator (Front) Body Width |
8.00 |
| Resonator (Front) Type |
Chambered |
| Resonator (Rear) Body Height |
8.00 |
| Resonator (Rear) Body Length |
12.25 |
| Resonator (Rear) Body Width |
4.00 |
| Resonator (Rear) Type |
Chambered |
| SDR Required Flag |
N |
| SDS Sheet Number |
N |
| Series |
American Thunder Exhaust Systems |
| Single Dual |
Dual |
| Single or Dual |
Dual |
| Sound Level |
Moderate, Aggressive / Moderate |
| Sub Category |
Exhaust and Tail Pipes |
| Subcategory |
Cat-Back Exhaust Kits |
| System Type |
Cat Back, Cat-back |
| Tail Pipe Diameter |
2.500 in. |
| Tail Pipe Outlet Outside Diameter |
2.50 |
| Tip Diameter |
4.000 in., 4.00 |
| Tip Diameter (in) |
4 |
| Tip Diameter (in.) |
4 |
| Tip Quantity |
2 |
| Tip Size |
4.0 in. |
| Tubing Diameter |
2.500 in., 2.50 |
| Tubing Diameter (IN) |
2.5 |
| Warning |
California Proposition 65 |
| Warranty Time |
12 |
| part type |
Exhaust System Kit |
