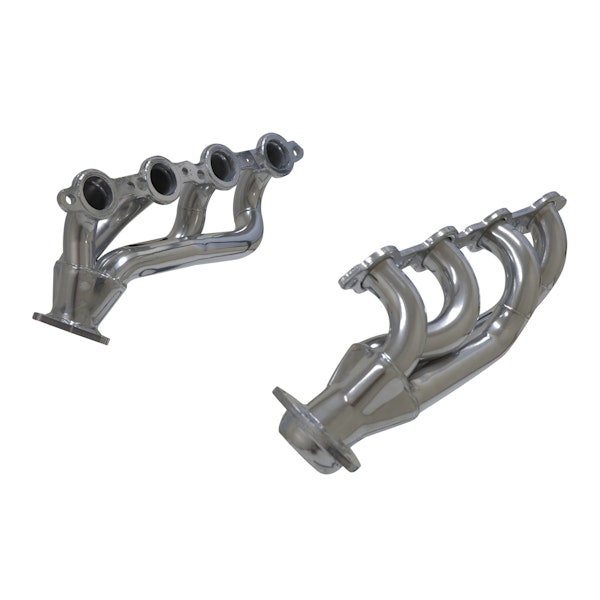

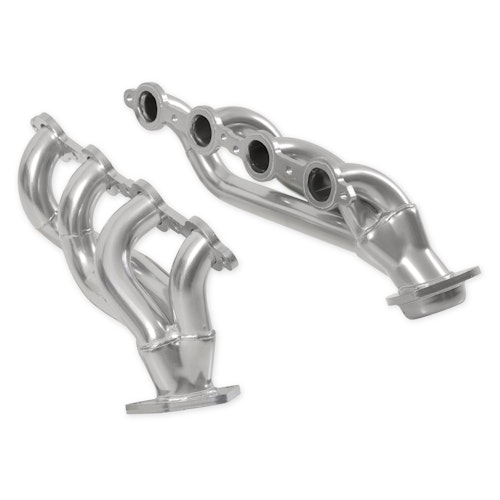

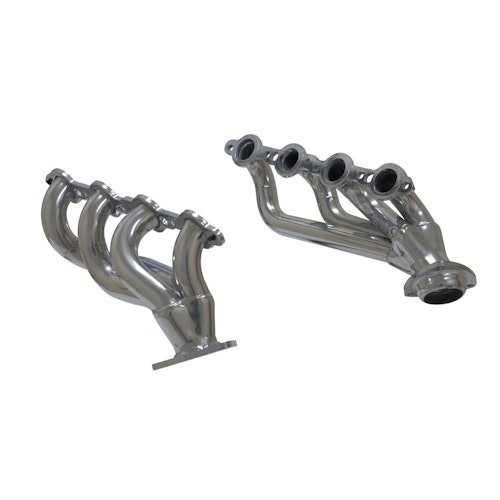

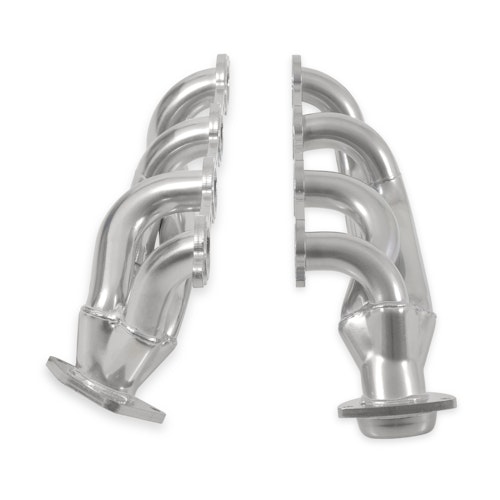

Shorty header for 2002-2013 GM Truck/SUV, 4.8L/5.3L, (2007-2013 6.0L/6.2L), V8, 1-5/8" Primary, 16 Gauge, 3/8" Flange, Silver Ceramic, 409S Stainless Steel; CARB EO D-698 compliant for 2002-2009 GM Truck/SUV 4.8L/5.3L (2007-2009 6.0L/6.2L)

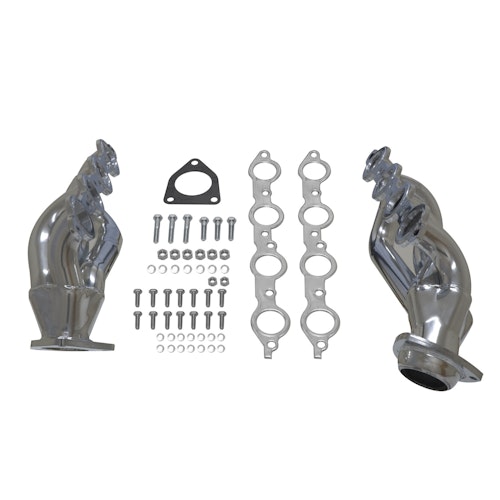

Flowmaster's Scavenger Series Elite shorty headers are designed to replace the restrictive factory manifolds. These high quality headers are manufactured from stainless steel and are ceramic coated for maximum durability. They feature 1-5/8 in. primary tubes, 3/8 in. thick laser cut flanges and factory collector connections, ensuring a direct-fit, leak free installation. Like all Flowmaster products, the benefits include improved throttle response, power and engine efficiency. Designed for an easy fit, these headers include gaskets and necessary hardware for easy installation. Note: this product has been granted a California Air Resources Board (CARB) exemption, an E.O. number, or is a direct or consolidated replacement part. It is 50-state legal, per the application guide for 2002-2009 4.8L/5.3L and 2007-2009 6.0L/6.2L applications. CARB EO# D-698.
- On a 2004 Silverado 5.3L, power gains of 14 HP and 23 LB. FT. TQ
- 3/8in. Thick Laser Cut Flanges
- Dyno tuned for maximum performance
- High Temperature Ceramic Coating
- Stainless Steel Construction
Information:
Fits 02-13 Silverado/Sierra 4.8L/5.3L, 02-13 Suburban/Yukon XL 5.3L, 07-13 Suburban/Yukon XL 6.0L, 02-13 Tahoe/Yukon/Denali 4.8L/5.3L, 07-13 Yukon/Denali 6.0L, 02-13 Avalanche 5.3L, 02-13 Escalade/ESV/EXV 4.8L/5.3L, 07-13 Escalade/ESV/EXV 6.0L/6.2L, 07-09 Hummer H2/H2 SUT 6.0L/6.2L
Application Summary:
| Year |
Make/Model |
| 2002-2005 |
Cadillac Escalade |
| 2009-2013 |
Cadillac Escalade |
| 2007-2013 |
Cadillac Escalade ESV |
| 2010-2013 |
Cadillac Escalade EXT |
| 2007-2013 |
Chevrolet Avalanche |
| 2002-2013 |
Chevrolet Silverado 1500 |
| 2006-2013 |
Chevrolet Suburban 1500 |
| 2002-2013 |
Chevrolet Tahoe |
| 2002-2013 |
GMC Sierra 1500 |
| 2002-2013 |
GMC Yukon |
| 2006-2013 |
GMC Yukon XL 1500 |
| 2007-2009 |
GMC Yukon XL 2500 |
| 2007-2009 |
Hummer H2 |
| Attributes |
| Application |
Automotive |
| Attachment Method |
Stock Flange, Flanged |
| Automotive Item Grade |
High Performance Part, High Performance |
| Bolt size |
M8 x 1.25 x 25mm |
| Bolts Or Studs Included |
Yes |
| Bolts/Studs Included |
Yes |
| Brand |
Flowmaster |
| Bullet Point #1 |
Stainless Steel Construction |
| Bullet Point #2 |
High Temperature Ceramic Coating |
| Bullet Point #3 |
Dyno tuned for maximum performance |
| Bullet Point #4 |
3/8in. Thick Laser Cut Flanges |
| C.A.R.B EO # |
D-698 |
| CARB (California) Compliant |
Yes |
| CARB EO# |
D-698 |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Category |
Exhaust |
| Clamping Type |
Round Band |
| Coated Finish |
Ceramic Coated Stainless Steel |
| Coating/Finish |
Ceramic Coated Stainless Steel |
| Collector Included |
Yes |
| Collector Tube Size |
N/A |
| Collector Tube Size (in.) |
N/A |
| Color |
Silver Ceramic |
| Color/Finish |
Silver Ceramic |
| Country of Origin (Primary) |
MX |
| Emission Code |
1, 7, Legal US |
| Engine |
GM Gen III/IV (LS), GM Small Block Gen III/IV (LS Based) |
| Engine Make/Size |
Chevy 4.8L, Chevy 5.3L, Chevy 6.0L, Chevy 6.2L |
| Finish |
Silver Ceramic |
| Flange Thickness |
0.375 in., 3/8 |
| GTIN |
00700042026333 |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Hazardous Material Code |
N |
| Head Style |
4-1 One-Piece |
| Header Finish |
Silver Ceramic, Ceramic Coated |
| Header Flange Thickness |
3/8 inch |
| Header Flange Thickness (in) |
0.375, 3/8 inch |
| Header Series |
Scavenger Series Elite |
| Header Style |
4-1 One-Piece, Shorty |
| Inlet Port Shape |
Round |
| Life Cycle Status Code |
Available to Order |
| Main Piping Diameter |
1.625, 1-5/8 |
| Material |
Stainless Steel |
| NAFTA Preference Criterion Code |
B |
| Outlet Diameter |
2.500 in., 2.50 |
| Outlet Diameter (in) |
2.5 |
| Port Shape |
Same As Port/Can Be Matched |
| Primary Tube Dia. |
1-5/8 inch |
| Primary Tube Diameter |
1.625 in. |
| Primary Tube Diameter (in) |
1.625 |
| Primary Tubing Diameter |
1-5/8" |
| Product Type |
Exhaust Headers, Headers |
| Reducers Included |
No |
| SDR Required Flag |
N |
| SDS Sheet Number |
N |
| SEMA Emissions Code |
1 |
| Series |
Scavenger Series Headers |
| Sub Category |
Exhaust Manifolds |
| Subcategory |
Headers and Parts |
| Tube Diameter |
1.625 in. |
| Tube Direction |
Up Swept |
| Tube Gauge |
16 |
| Tube Length |
Unequal Length |
| Tube Lengths |
Unequal Length |
| Tube Size |
1.625 |
| Tube Wall Thickness |
16 |
| Warning |
California Proposition 65 |
| Warranty Time |
12 |
| part type |
Exhaust Header |
