Fits 1967-1974 Camaro, 1965-1972 Chevelle/El Camino, 1968-1974 Chevy II/Nova, 1970-1974 Monte Carlo with a 396-502 BBC engine.
Notes: Will not fit Saginaw close ratio with 825 power steering box. Big block frame stands and motor mounts must be used to ensure proper engine location and header fit. Will fit Detroit Speed & Engineering front sub frames with rack and pinion steering. Does not fit with Powerglide transmission. Does not fit column shift automatic transmission in Camaro. This product is legal only for off-highway use or racing use in California and/or states that have adopted California emission standards, or for use on pre-emission controlled motor vehicles/motor vehicle engines (pre-1966 domestic vehicles certified to California standards, pre-1968 domestic vehicles certified to federal standards and all pre-1968 foreign vehicles, per the application guide.
- Flowmaster Ball & Socket Collector Connections
- Dyno-tuned for Maximum Performance
- 16-gauge Stainless Steel Construction
- High Temperature Ceramic Coating
- Covers Many GM Models with BBC
- Heavy 3/8-inch Thick Flanges
Information:

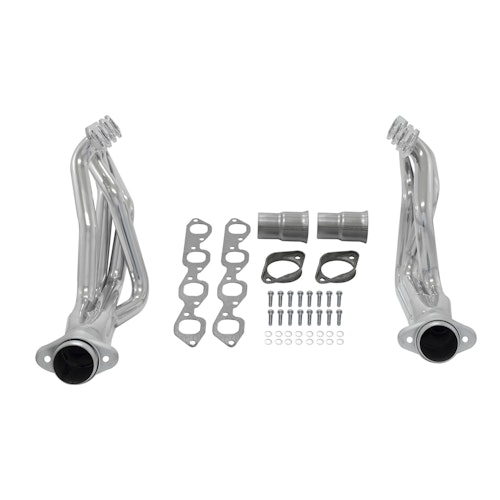

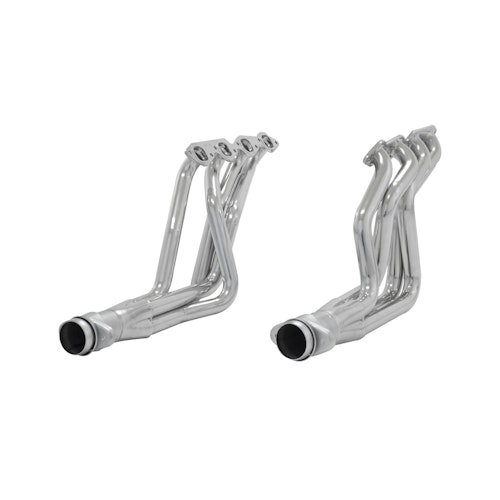

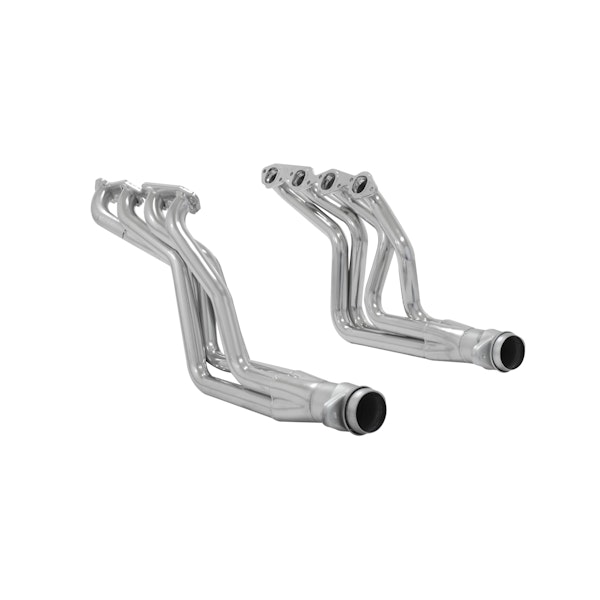

Fits 1967-1974 Camaro, 1965-1972 Chevelle & El Camino, 1968-1974 Chevy II/Nova, 1970-1974 Monte Carlo with a 396-502ci displacement BBC engine. 1 3/4-inch Primary Tubes with 3.00-inch Ball-flange collectors, 3/8-inch thick flanges with 16-gauge 409 stainless steel silver ceramic coated tubing.
Application Summary:
| Year |
Make/Model |
| 1967 |
Chevrolet Camaro |
| 1969 |
Chevrolet Camaro |
| 1971-1972 |
Chevrolet Camaro |
| 1965-1972 |
Chevrolet Chevelle |
| 1968 |
Chevrolet Chevy II |
| 1966-1972 |
Chevrolet El Camino |
| 1970-1974 |
Chevrolet Monte Carlo |
| 1969-1972 |
Chevrolet Nova |
| 1971-1972 |
GMC Sprint |
| Attributes |
| ASIN |
B0085UE4RW |
| Additional Contents |
Gaskets and hardware |
| Application |
Automotive |
| Attachment Method |
Ball and Socket Flange, Ball & Socket Flange |
| Automotive Item Grade |
High Performance, High Performance Part |
| Bolt size |
3/8-16 x 1 |
| Bolts Or Studs Included |
Yes |
| Bolts/Studs Included |
Yes |
| Brand |
Flowmaster |
| Bullet Point #1 |
Stainless Steel Construction |
| Bullet Point #2 |
Ball & Socket Collector Connections |
| Bullet Point #3 |
Dyno tuned for maximum performance |
| Bullet Point #4 |
High Temperature Ceramic Coating |
| CARB (California) Compliant |
No |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Category |
Exhaust |
| Clamping Type |
Round Band |
| Coated Finish |
Ceramic Coated Stainless Steel |
| Coating/Finish |
Ceramic Coated Stainless Steel |
| Collector Diameter |
3.00 inch, 3.00 |
| Collector Included |
Yes |
| Collector Port Diameter |
3.00 |
| Collector Tube Size |
3.000 in. |
| Collector Tube Size (in.) |
3 |
| Color |
Silver Ceramic |
| Color/Finish |
Silver Ceramic |
| Country of Origin (Primary) |
MX |
| Emission Code |
3, Off Road |
| Engine |
GM Big Block, Big Block Chevy |
| Engine Make/Size |
Chevy Big Block (396-502) |
| Finish |
Silver Ceramic |
| Flange Thickness |
0.375 in., 3/8 |
| GTIN |
00700042026272 |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Hazardous Material Code |
N |
| Head Style |
4-1 One-Piece |
| Header Finish |
Silver Ceramic, Ceramic Coated |
| Header Flange Thickness |
3/8 inch |
| Header Flange Thickness (in) |
0.375, 3/8 inch |
| Header Series |
Scavenger Series Elite |
| Header Style |
4-1 One-Piece, Long Tube |
| Inlet Port Shape |
Round |
| Life Cycle Status Code |
Available to Order |
| Main Piping Diameter |
1.75, 1-3/4 |
| Material |
Stainless Steel |
| NAFTA Preference Criterion Code |
B |
| Outlet Diameter |
3.000 in., 3.00 |
| Outlet Diameter (in) |
3 |
| Port Shape |
Same As Port/Can Be Matched |
| Primary Tube Dia. |
1-3/4 inch |
| Primary Tube Diameter |
1.750 in. |
| Primary Tube Diameter (in) |
1.75 |
| Primary Tubing Diameter |
1-3/4" |
| Product Type |
Exhaust Headers, Headers |
| Reducers Included |
Yes |
| SDR Required Flag |
N |
| SDS Sheet Number |
N |
| Series |
Scavenger Series Headers |
| Sub Category |
Exhaust Manifolds |
| Subcategory |
Headers and Parts |
| Tube Diameter |
1.750 in. |
| Tube Direction |
Up Swept |
| Tube Gauge |
16 |
| Tube Length |
Unequal Length |
| Tube Lengths |
Unequal Length |
| Tube Size |
1.75 |
| Tube Wall Thickness |
16 |
| Warning |
California Proposition 65 |
| Warranty Time |
12 |
| part type |
Exhaust Header |
