1967-1974 Camaro, 1964-1974 Chevelle/Malibu/El Camino, 1968-1974 Chevy II/Nova, 1970-1974 Monte Carlo, 265-400ci sbc engine.
Notes: Fits D port cylinder heads including ZZ4 crate engines. Does not fit 1967-1969 Camaro's with air conditioning. Will fit most angle plug heads including factory Chevrolet bow tie heads. Requires removal or modification of locking steering columns if equipped. Installation requires new left side air conditioning bracket. This product is legal only for off-highway use except in California or states that have adopted California emission standards, racing use or for use on pre-emission controlled motor vehicles and motor vehicle engines and pre-1966 domestic vehicles certified to California standards, pre-1968 domestic vehicles certified to federal standards and all pre-1968 foreign vehicles, per the application guide.
  • Fits Most GM Heads with D-shaped Exhaust Ports
  • Flowmaster Ball & Socket Collector Connections
  • Dyno-tuned for Maximum Performance
  • 16-gauge Stainless Steel Construction
  • High Temperature Ceramic Coating
  • Covers Many GM Models with SBC
  • Heavy 3/8-inch Thick Flanges

Information:

Not Emissions Legal. Must use non-shell type motor mounts.

Application Summary:

Year Make/Model
1967-1973 Chevrolet Camaro
1964-1973 Chevrolet Chevelle
1968 Chevrolet Chevy II
1964-1973 Chevrolet El Camino
1964-1967 Chevrolet Malibu
1973-1974 Chevrolet Malibu
1972-1974 Chevrolet Monte Carlo
1969-1973 Chevrolet Nova
1971-1973 GMC Sprint
Attributes
Application Automotive
Attachment Method Ball and Socket Flange, Ball & Socket Flange
Automotive Item Grade High Performance Part, High Performance
Bolt size 3/8-16 x 1
Bolts Or Studs Included Yes
Bolts/Studs Included Yes
Brand Flowmaster
Bullet Point #1 Stainless Steel Construction
Bullet Point #2 Ball & Socket Collector Connections
Bullet Point #3 Dyno tuned for maximum performance
Bullet Point #4 High Temperature Ceramic Coating
CARB (California) Compliant No
California Proposition 65 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Category Exhaust
Clamping Type Round Band
Coated Finish Ceramic Coated Stainless Steel
Coating/Finish Ceramic Coated Stainless Steel
Collector Diameter 3.00 inch, 3.00
Collector Included Yes
Collector Port Diameter 3.00
Collector Tube Size 3.000 in.
Collector Tube Size (in.) 3
Color Silver Ceramic
Color/Finish Silver Ceramic
Country of Origin (Primary) MX
Emission Code 3, Off Road
Engine Chevrolet Small Block Gen I
Engine Make/Size Chevy Small Block (262-400)
Finish Silver Ceramic
Flange Thickness 0.375 in., 3/8
GTIN 00700042026265
Harmonized Tariff Code (Schedule B) 8708925000
Hazardous Material Code N
Head Style 4-1 One-Piece
Header Finish Silver Ceramic, Ceramic Coated
Header Flange Thickness 3/8 inch
Header Flange Thickness (in) 0.375, 3/8 inch
Header Series Scavenger Series Elite
Header Style 4-1 One-Piece, Long Tube
Inlet Port Shape Round
Life Cycle Status Code Available to Order
Main Piping Diameter 1-5/8, 1.625
Material Stainless Steel
NAFTA Preference Criterion Code B
Outlet Diameter 3.000 in., 3.00
Outlet Diameter (in) 3
Port Shape Same As Port/Can Be Matched
Primary Tube Dia. 1-5/8 inch
Primary Tube Diameter 1.625 in.
Primary Tube Diameter (in) 1.625
Primary Tubing Diameter 1-5/8"
Product Type Exhaust Headers, Headers
Reducers Included Yes
SDR Required Flag N
SDS Sheet Number N
SEMA Emissions Code 3
Series Scavenger Series Headers
Sub Category Exhaust Manifolds
Subcategory Headers and Parts
Tube Diameter 1.625 in.
Tube Direction Up Swept
Tube Gauge 16
Tube Length Unequal Length
Tube Lengths Unequal Length
Tube Size 1.625
Tube Wall Thickness 16
Warning California Proposition 65
Warranty Time 12
part type Exhaust Header

Write a review.

Note: HTML is not translated.
    Bad           Good

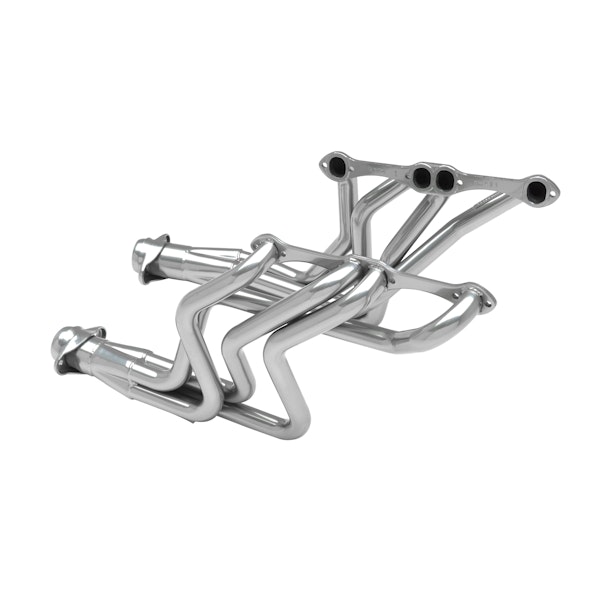

Flowmaster 814110 CAMARO/CHEVELLE/NOVA SB HDR 1-5/8
