Fits 2017-2024 Nissan Titan 5.6-Liter, FlowFX Cat-Back, Dual Same Side Out Exit, Stainless Steel Exhaust System
This Flowmaster® FlowFX® cat-back exhaust system for the 2017-2024 Nissan Titan with the 5.6-liter engine is manufactured using durable 409 stainless steel throughout and features 3.00 to dual 2.50-inch mandrel bent pipes for better exhaust gas flow. A FlowFX "straight-through" muffler is used for an aggressive to moderate sound level and maximum performance. Maximum increases on the dyno revealed +11 hp and +13 lb-ft at the rear wheels. This system exits out the same side, in front of the rear wheel on the passenger with dual 4.00-inch black ceramic tips for added style and a custom look. The system uses all the existing factory hanger locations and includes installation instructions and all necessary hardware for an easy installation that you can do at home. Fits short wheelbase only (139.8-inch). Backed by Flowmaster's Lifetime Limited Warranty.
- Max increases of up to 11 hp and 13 lb-ft over the stock exhaust at the rear wheels
- 3.00 to dual 2.50-inch mandrel bent 16-gauge 409 stainless steel tubing maximizes exhaust flow and improves durability
- Dual 4.00-Inch black ceramic coated tips add a custom look to the truck

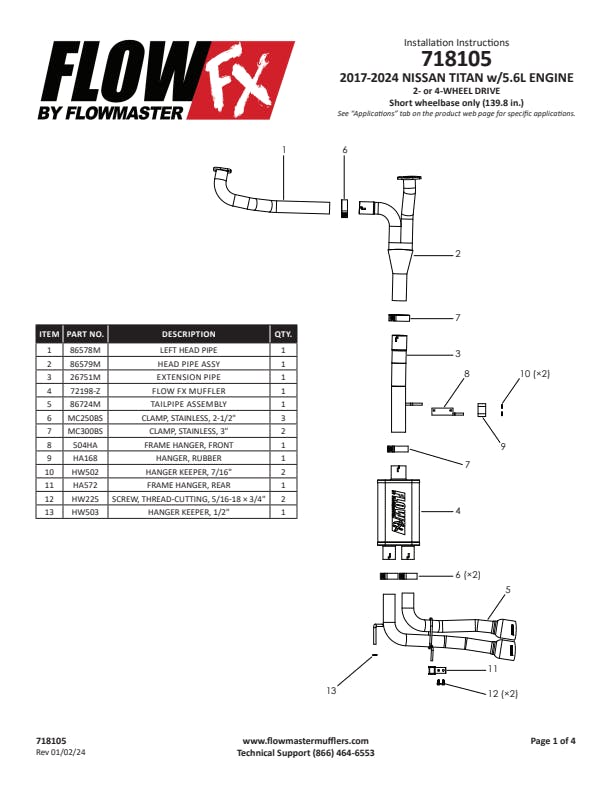

- Includes complete hardware and factory styled hangers in the stock locations for an easy installation
- FlowFX “straight through” performance muffler delivers a deep, aggressive to moderate performance tone and improves exhaust flow
Information:
Fits 2017-2024 Nissan Titan with 5.6-Liter engine.
Fits short wheelbase only (139.8-inch).
Application Summary:
| Year |
Make/Model |
| 2017-2024 |
Nissan TITAN |
| Attributes |
| Brand |
Flowmaster |
| California Proposition 65 |
Yes |
| Catalytic Converter Quantity |
Not Included |
| Category |
Exhaust, Exhaust |
| Country of Origin (Primary) |
US |
| Emission Code |
5, 5 |
| Exhaust Series |
FlowFX, FlowFX |
| Exhaust System Kit Type |
Cat-Back, Cat-Back |
| Exhaust Tip Diameter |
4.00 |
| Exhaust Tip Length |
5.25 |
| Exit Position |
DOSS, DOSS |
| GTIN |
00090127475447 |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Hazardous Material Code |
N |
| Life Cycle Status Code |
Available to Order |
| Main Piping Diameter |
2-1/2 |
| Material |
409 Stainless Steel, 409 Stainless Steel |
| Mount Type |
Uses Factory Hangers, Uses Factory Hangers |
| Muffler Body Height |
4.00 |
| Muffler Body Length (in) |
14 |
| Muffler Body Width |
9.00 |
| Muffler Color |
Natural, Silver |
| Muffler Inlet Diameter |
3.00, 3.00 |
| Muffler Inlet Inside Diameter |
3.00 |
| Muffler Inlet Location |
Centered, Center |
| Muffler Inlet Outside Diameter |
3.13 |
| Muffler Material |
409S Stainless Steel, 409 Stainless Steel |
| Muffler Outlet Diameter |
2.50, 2.50 |
| Muffler Outlet Location |
Dual Outlet, Dual |
| Muffler Overall Length |
20.00, 20.00 |
| Muffler Overall Length (in) |
20 |
| Muffler Part Number |
Kit Only, Kit Only |
| Muffler Series |
FlowFX, FlowFX |
| Muffler Shape |
Oval, Oval |
| Product Type |
Cat-Back Exhaust, Exhaust System |
| SDR Required Flag |
N |
| Single Dual |
Dual, Dual |
| Sound Level |
Aggressive / Moderate, Aggressive / Moderate |
| Sub Category |
Exhaust and Tail Pipes, Exhaust and Tail Pipes |
| System Type |
Cat-back, Cat-back |
| Tail Pipe Outlet Outside Diameter |
2.50 |
| Tip Cut |
Angle, Angle |
| Tip Diameter |
4.00, 4.00 |
| Tip Edge Style |
Cut, Cut |
| Tip Finish |
Black Ceramic, Black Ceramic Coating |
| Tip Length |
5.25, 5.25 |
| Tip Logo |
Laser, Laser |
| Tip Material |
304 Stainless, 304 Stainless Steel |
| Tip Quantity |
2.00, 2.00 |
| Tip Style |
Double Wall, Double Wall |
| Tubing Diameter |
2.50, 2.50 |
| Tubing Diameter (IN) |
2.50 |
| Tubing Material |
409S Stainless Steel, 409 Stainless Steel |
| Warning |
California Proposition 65, California Proposition 65 |
| part type |
Exhaust System Kit, Exhaust System Kit |
