Fits 2020-2025 Ford Explorer ST/Lincoln Aviator 3.0-liter, Cat-Back, Dual Rear Exit, Flow FX Stainless Steel Exhaust System

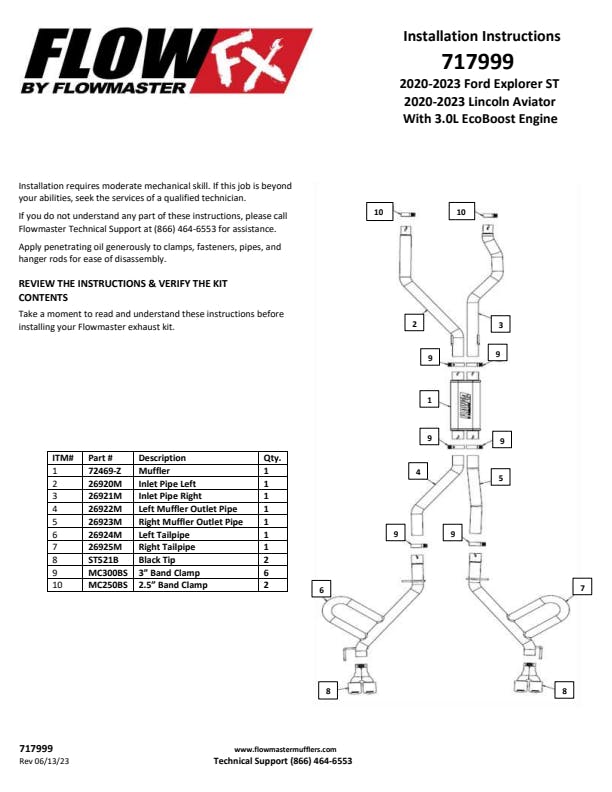

This Flowmaster® Flow FX® cat-back exhaust system for the 2020-2025 Ford Explorer ST and Lincoln Aviator with the 3.0-liter twin turbo Ecoboost engine is manufactured using durable 409 stainless steel throughout and features 3.00-inch mandrel bent tubing for better exhaust gas flow. A Flow FX series muffler is used with a built in X-pipe style merge for an aggressive to moderate European exhaust note and increased performance. This system exits with dual 3.50-inch black stainless steel tips for added style and a custom look. Max gains of 20 hp and 25 lb-ft of torque at the rear wheels over stock. Unique Helmholtz style resonators are used for reduced interior resonance while driving. The system uses all the existing factory hanger locations and includes installation instructions and all necessary hardware for an easy installation that you can do at home. Backed by Flowmaster's Lifetime Limited Warranty.
- Mandrel bent 3.00-inch tubing for maximum flow and power gains
- 409 stainless steel construction for improved durability
- Dual inlet/outlet Flow FX muffler with built in X-pipe merge provides better exhaust scavenging and sound control
- High tuck design for maximum ground clearance
- Max dyno gains 20 hp and 25 lb-ft of torque at the wheels
- Dual 3.50-inch 304 stainless, quad tips with black ceramic coating and Flowmaster logo add great looks and style
- Factory fitment using all OEM hanger locations
- Unique Helmholtz style resonators for reduce interior resonance and a refined Euro style exhaust note
- Flowmaster’s Lifetime Limited Warranty
Application Summary:
| Year |
Make/Model |
| 2020-2025 |
Ford Explorer |
| 2020-2025 |
Lincoln Aviator |
| Attributes |
| Brand |
Flowmaster |
| California Proposition 65 |
Yes |
| Catalytic Converter Quantity |
Not Included |
| Category |
Exhaust |
| Country of Origin (Primary) |
US |
| Emission Code |
5 |
| Exhaust Series |
FlowFX |
| Exhaust System Kit Type |
Cat-Back |
| Exhaust Tip Diameter |
3.50 |
| Exit Position |
DOR |
| GTIN |
00090127829479 |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Hazardous Material Code |
N |
| Life Cycle Status Code |
Available to Order |
| Material |
409 Stainless Steel |
| Mount Type |
Uses Factory Hangers |
| Muffler Body Height |
5.00 |
| Muffler Body Length (in) |
18 |
| Muffler Body Width |
8.00 |
| Muffler Color |
Natural, Silver |
| Muffler Inlet Diameter |
3.00 |
| Muffler Inlet Inside Diameter |
3.00 |
| Muffler Inlet Location |
dual inlet - offset, Dual |
| Muffler Inlet Outside Diameter |
3.13 |
| Muffler Material |
409S Stainless Steel, 409 Stainless Steel |
| Muffler Outlet Diameter |
3.00 |
| Muffler Outlet Location |
Dual Outlet, Dual |
| Muffler Overall Length |
24.00 |
| Muffler Overall Length (in) |
24 |
| Muffler Part Number |
Kit Only |
| Muffler Series |
FlowFX |
| Muffler Shape |
Oval |
| Product Type |
Cat-Back Exhaust, Exhaust System |
| SDR Required Flag |
N |
| Single Dual |
Dual |
| Sound Level |
Aggressive / Moderate |
| Sub Category |
Exhaust and Tail Pipes |
| System Type |
Cat-back |
| Tail Pipe Outlet Outside Diameter |
3.00 |
| Tip Cut |
Angle |
| Tip Diameter |
3.50 |
| Tip Edge Style |
Rolled |
| Tip Finish |
Black Ceramic, Black Ceramic Coating |
| Tip Length |
10.55 |
| Tip Logo |
Embossed |
| Tip Material |
304 Stainless, 304 Stainless Steel |
| Tip Quantity |
2.00 |
| Tip Style |
Double Wall |
| Tubing Diameter |
3.00 |
| Tubing Diameter (IN) |
3.00 |
| Tubing Material |
409S Stainless Steel, 409 Stainless Steel |
| Warning |
California Proposition 65 |
| part type |
Exhaust System Kit |
