Fits 1986-1990 Chevrolet Corvette with 5.7L engine. - Mild sound

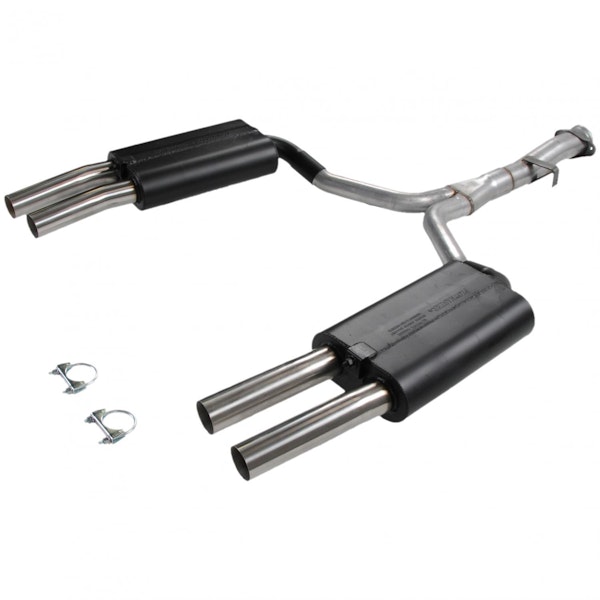

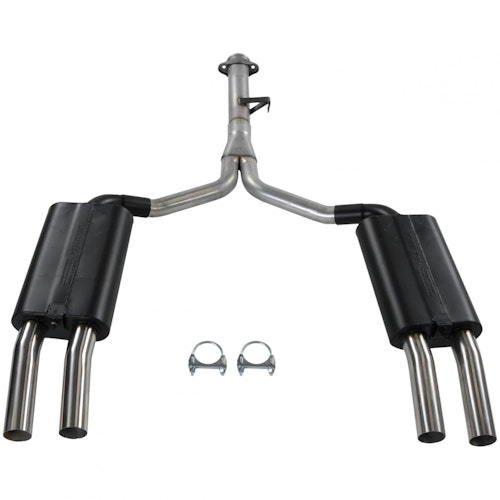

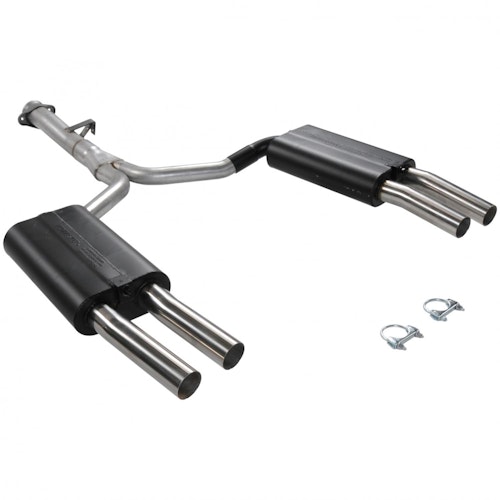

This Force II® system is specifically designed for 1986-1990 Chevrolet Corvette's with the 5.7L engine. The system starts at the factory ball flange at the rear of the car flowing into a Scavenger Series® Y-collector splitting the system into duals. The 2.50-inch mandrel-bent aluminized steel tubing flows into a pair of specially designed 60 Series™ Delta Flow® mufflers keeping the interior tone down to a minimum, with a deep mellow performance exterior tone. The system is finished off with dual 2.50-inch brushed stainless steel tips on each muffler and uses the factory hanger locations making installation a breeze. Force II systems deliver a moderate exterior tone and a mild interior tone, and are suited to customers looking for efficiency improvements without a lot of interior noise. Like all Flowmaster® systems, the benefits include improved throttle response, power and mileage. Designed for an easy fit, these systems include all necessary parts and hardware for easy installation.
- Includes Hangers and Hardware for an Easy Installation
- Specially Designed 60 Series Performance Mufflers
- Mandrel-bent 16 Gauge Aluminized Steel Tubing
- Quad 2.50-inch Brushed Stainless Steel Tips
- Connects After Factory Catalytic Converter
- Uses the Factory Hanger Locations
- Mild Performance Exterior Sound
- Minimal Interior Tone
Information:
Fits 1986-1990 Chevrolet Corvette with 5.7L engine.
Application Summary:
| Year |
Make/Model |
| 1986-1990 |
Chevrolet Corvette |
| Attributes |
| 2WD/4WD |
2WD, 2WD |
| ASIN |
B001128TGI |
| Brand |
Flowmaster, Flowmaster |
| Bullet Point #1 |
Mandrel bent 16 Gauge Tubing |
| Bullet Point #2 |
Stock to mild exterior exhaust tone |
| Bullet Point #3 |
Includes hangers and hardware for easy installation |
| Bullet Point #4 |
Connects After Factory Catalytic Converter |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Category |
Exhaust, Exhaust |
| Clamping Type |
U-Bolt |
| Clamps Included |
Yes |
| Country of Origin (Primary) |
US |
| Emission Code |
5, 5 |
| Exhaust Series |
Force II, Force II |
| Exhaust Tip Diameter |
2.50 |
| Exhaust Tip Finish |
Polished |
| Exhaust Tip Material |
304 Stainless Steel |
| Exhaust Tip Quantity |
4 |
| Exhaust Type |
Dual |
| Exit Position |
Dual Rear, Dual Out Rear |
| Exit Style |
Straight |
| Finish |
Aluminized |
| GTIN |
00700042013920 |
| Gasket Or Seal Included |
No |
| Grade Type |
Performance |
| Hangers Included |
Yes |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Hazardous Material Code |
N |
| Heat Shield |
No, No |
| Heat Shield Attached |
No |
| Inlet Diameter |
2.250 in., 2.25 |
| Inlet Diameter (in) |
2.25 |
| Inlet Inside Diameter |
N/A |
| Inlet Inside Diameter (in.) |
N/A |
| Inlet Size (in.) |
N/A |
| Inlet Type |
Flanged |
| Life Cycle Status Code |
Available to Order |
| Main Piping Diameter |
2-1/2 |
| Material |
Aluminized Steel, Aluminized Steel |
| Mounting Bracket Included |
Yes |
| Muffler Body Height |
4.00 |
| Muffler Body Length |
15.00 |
| Muffler Body Material |
Aluminized Steel |
| Muffler Body Shape |
Oval |
| Muffler Body Width |
9.50 |
| Muffler Count |
2 |
| Muffler Flanged Inlet |
Yes |
| Muffler Flanged Outlet |
No |
| Muffler Inlet Inside Diameter |
3.00 |
| Muffler Inlet Outside Diameter |
3.13 |
| Muffler Outlet Quantity |
2 |
| Muffler Part Number |
9424501-L; 9424501-R, 9424501-L, 9424501-R |
| Muffler Quantity |
2, 2 |
| Muffler Series |
50 Series Delta Flow, 50 Series Delta Flow |
| Muffler Type |
Chambered, Chambered |
| NAFTA Preference Criterion Code |
B |
| Outlet Diameter |
2.500 in., 2.50 |
| Outlet Diameter (in) |
2.5 |
| Outlet Outside Diameter |
3.000 in. |
| Outlet Outside Diameter (in.) |
3 |
| Outlet Size (in.) |
3 |
| Pipe Material |
Aluminized Steel |
| Product Type |
Exhaust Systems / Kits, Exhaust System |
| SDR Required Flag |
N |
| SDS Sheet Number |
N |
| Series |
Force II Exhaust Systems |
| Single Dual |
Dual, Dual |
| Single or Dual |
Dual |
| Sound Level |
Mild, Mild |
| Spring Bolt Kit Included |
No |
| Sub Category |
Exhaust and Tail Pipes, Exhaust and Tail Pipes |
| Subcategory |
Cat-Back Exhaust Kits |
| System Type |
Cat Back, Cat-back |
| Tail Pipe Diameter |
2.250 in., 3.000 in. |
| Tail Pipe Outlet Outside Diameter |
2.50 |
| Tail Pipe Quantity |
2 |
| Tail Pipe Tapered Outlet |
No |
| Tip Diameter |
2.500 in., 2.50 |
| Tip Diameter (in) |
2.5 |
| Tip Diameter (in.) |
2.5 |
| Tip Quantity |
4, 4 |
| Tip Shape |
Round |
| Tip Size |
2.5 in. |
| Tubing Diameter |
2.500 in., 2.50 |
| Tubing Diameter (IN) |
2.5 |
| Type |
Cat-Back |
| Valve Included |
No |
| Valve Type |
Not Applicable |
| Warning |
California Proposition 65, California Proposition 65 |
| Warranty Time |
36 |
| part type |
Exhaust System Kit, Exhaust System Kit |
