Performance Lift System; 6 in. Lift; w/Front Dirt Logic 2.5 Coilovers; Rear Dirt Logic 2.25 Shocks;

---

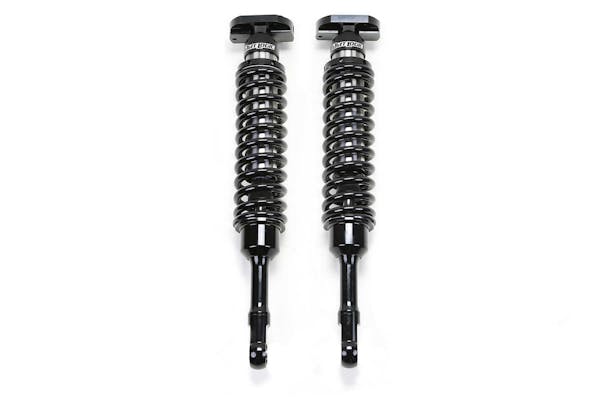

This Performance system feature Fabtechs proven IFS Technology with extended length ductile iron steering knuckles for proper factory electronic stability control functionality. Heavy duty 1/4 in. thick steel lower control arm crossmembers provide superior ground clearance while the integrated front differential skid plate adds protection to the drivetrain. The rear of the Nissan Titan XD suspension is lifted with 3 in. blocks and u bolts. The front suspension is controlled with Fabtechs legendary stainless steel Dirt Logic 2.5 Coilover shocks for outstanding damping capacity with a superior highway ride. Rear shocks include the Dirt Logic 2.25 non resi.

• Everything You Will Need To Lift Your Vehicle
• No Driveshaft Change Required For Auto Trac
• Increased Caster For More Control
• Retains Factory Steering Centerlink
• Retains Factory Upper Control Arms
• Quick No Weld Installation
• Allows Use Of Stock Tires And Wheels

---

Information:

TIRE SIZE - 35/12.50R18 WHEEL - 18X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 295/70R18 WHEEL - 18X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 295/60R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; 79. FITS CREW CAB, SHORT BED MODELS ONLY.; 182. FITS GAS MODELS ONLY

---

Application Summary:

Year	Make/Model
2016-2018	Nissan TITAN XD
