Radius Arm Lift System; 6 In. Lift; Incl. Performance Shocks;

---

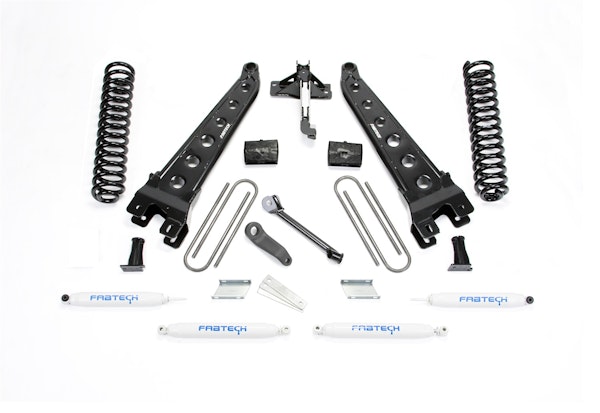

For the ultimate in suspension performance for the Super Duty we offer a bolt on 4 Link System that provides unsurpassed articulation and wheel travel. These 2 diameter heavy wall links feature race style 1 Uniballs for superior strength. Thick 1/4 steel brackets secure the 4 Links to the frame without cutting or welding. The system also includes Sway Bar Drops, Trac Bar relocation bracket, Pitman Arm, and U-Bolt kit.

• Unsurpassed Strength And Performance
• Patent Pending Radius Arms
• Fully Tubular Structure
• Dimple Die Side Plates
• Adjustable Alignment Cam Allows Caster Adjustment

---

Information:

TIRE SIZE - 37/12.50R17 WHEEL - 17X9 W/4 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 37/12.50R18 WHEEL - 18X9 W/4 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 37/13.50R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; 3. NON DUALLY MODELS ONLY.; 42. WILL NOT FIT GAS MOTORS.; 163. VEHICLES EQUIPPED WITH 2 PIECE DRIVESHAFT REQUIRE FTS419.; 165. SOME 2017 MODELS MAY REQUIRE A DUAL STEERING STABILIZER FOR OVERSIZED TIRES. ORDER DIRT LOGIC-FTS220512, DIRT LOGIC W/RESI-FTS221162 OR STEALTH-FTS8046.; 175. VEHICLES W/ FACTORY REAR SWAY BAR MUST ORDER EXTENDED SWAY BAR LINK KIT PART NUMBER FTS22276.

---

Application Summary:

Year	Make/Model
2017-2021	Ford F-250 Super Duty
2017-2021	Ford F-350 Super Duty
