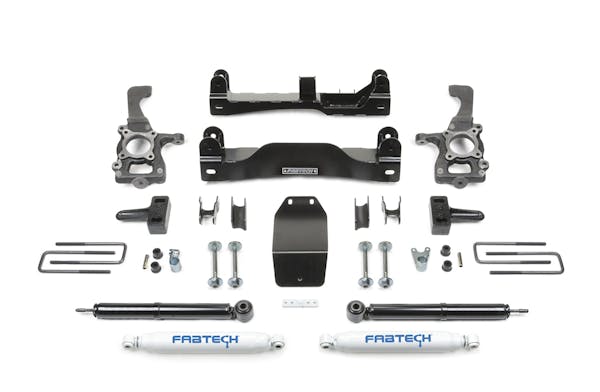

Basic Lift System w/Shocks; w/Performance Shocks; 4 in. Lift;

---

Fabtechs new 4 F150 system utilizes their proven heavy duty construction and design features found in their 6 systems but with less lift and at a much lower price. This 4 System allows use of 35 tall tires and features high arched lower control arm crossmembers constructed of 1/4 thick steel for maximum strength. The Fabtech ductile iron steering knuckles retain the stock track width keeping tires under the fender for a clean appearance. Rear lift is accomplished with a block and u-bolt configuration. The Basic System includes heavy duty front Coilover shocks for increased dampening capacity while retaining the factory coil springs and Fabtechs Performance rear shocks. The 4 System allows use of 33 or 35 tires and is ESC (Electronic Stability Control) and Traction Control compliant.

• Everything You Will Need To Lift Your Vehicle
• Utilizes The Stock Radius Arm
• Designed For The Budget Minded Enthusiast

---

Information:

TIRE SIZE - 35/12.50R18 WHEEL - 18X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 295/60R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 295/70R18 WHEEL - 18X9 W/5" BS W/MINOR TRIMMING; 123. WILL NOT FIT RAPTOR MODELS.; 124. REQUIRES CUTTING OF FENDERWELL SHEETMETAL FOR USE WITH 35 IN. TIRES

---

Application Summary:

Year	Make/Model

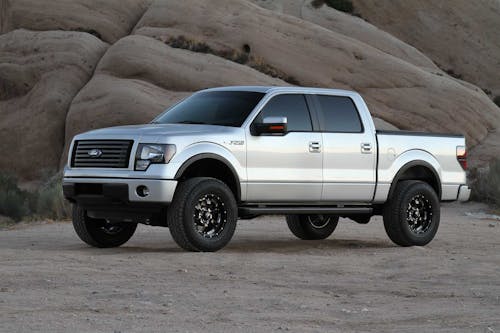

2009-2013	Ford F-150
