This 6670 Series Flashtube Strobe Beacon has a medium profile, Amber illumination, a vacuum-magnet mount, a die-cast aluminum base, a polycarbonate lens, & snap-fit flashtube. It also has SAE J1318 Class II, CE, & R10 approvals.

---

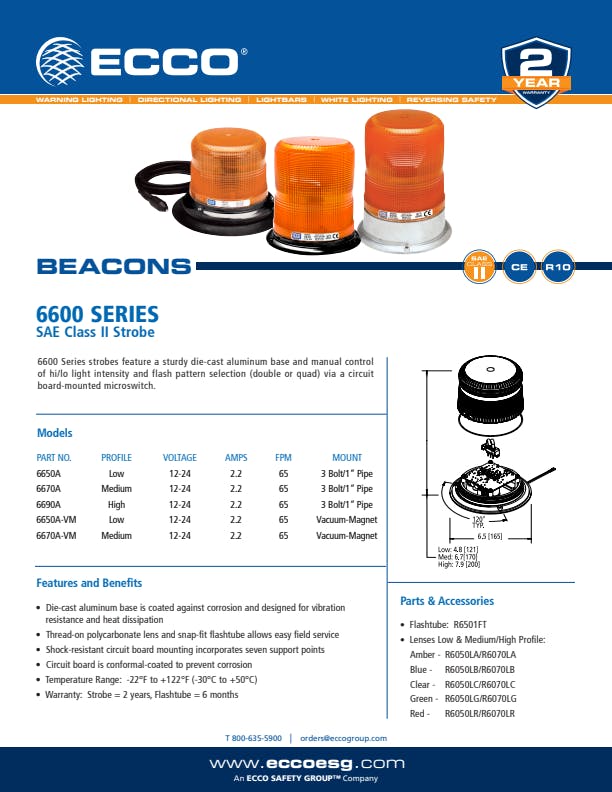

6670 Series strobes feature a sturdy die-cast aluminum base and manual control of hi/lo light intensity and flash pattern selection (double or quad) via a circuit board-mounted microswitch. Series medium profile strobes are suited to a wide variety of applications. The die-cast aluminum base is coated against corrosion and designed for vibration resistance and heat dissipation, incorporating a 7 point, shock-resistant circuit board mounting. A thread-on polycarbonate lens and snap-fit flashtube allows easy field service without tools and light intensity is controlled using a circuit board mounted microswitch. Vacuum-Magnet models feature a 15' straight cigarette cord with switched plug.

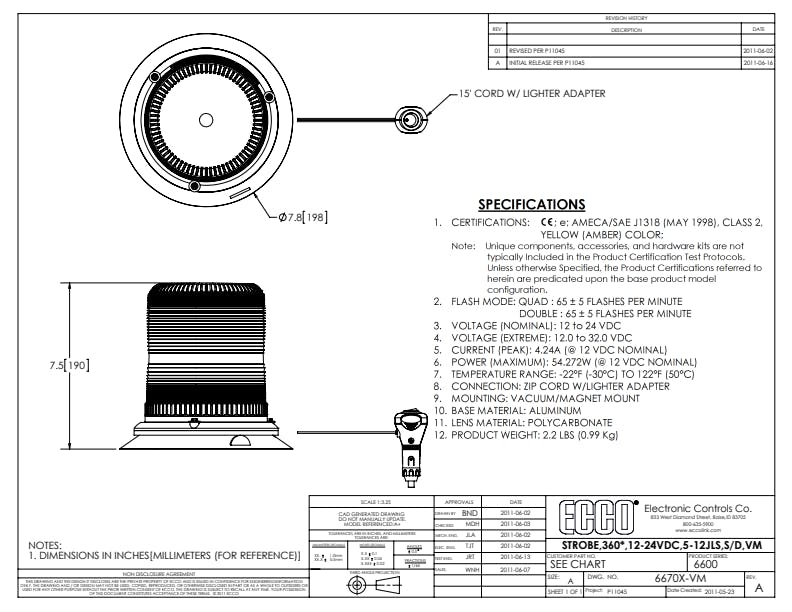

• Medium profile; Flashtube (Snap-Fit); Vacuum-Magnet Mount; 12-24V; Double/Quad; SAE J1318 Class II/CE/R10; 4.8"H, 6.7"W; 2.2 amps; 65 FPM; Die-cast aluminum base w/anti-corrosion coat resists vibration & dissipates heat; Polycarbonate lens.

---

Information:

Medium profile; Flashtube; Strobe Beacon; Amber; Vacuum-Magnet Mount; 12-24 V; Double/Quad; Approval Ratings: SAEJ1318 Class II, CE, R10; 4.8" height x 6.7" width; 2.2 amps; 65 FPM; Die-cast aluminum base is coated against corrosion and designed for vibration resistance and heat dissipation; Thread-on polycarbonate lens and snap-fit flashtube allows easy field service; Shock-resistant circuit board mounting incorporates seven support points; Circuit board is conformal-coated to prevent corrosion; Temperature Range: -22°F to +122°F (-30°C to +50°C; Warranty: Strobe = 2 years, Flashtube = 6 months; Parts & Accessories: PN: R6501FT Flashtube, PN: R6050LA/R6070LA Low-Medium/High Profile Amber Lenses, PN: R6050LB/R6070LB Low-Medium/High Profile Blue Lenses, PN: R6050LC/R6070LC Low-Medium/High Profile Clear Lenses, PN: R6050LG/R6070LG Low-Medium/High Profile Green Lenses, PN: R6050LR/R6070LR Low-Medium/High Profile Red Lenses.
