This Reflex 5597 Series LED Minibar (2.5"H x 15.3"W x 9.3"D, 6 amps) has reflective & TIR optic modules, 18 flash patterns, amber single-color illumination, clear low profile lens, magnet mount, & polycarbonate base.

---

The 5597 Series LED minibars provide a compact yet powerful warning solution that offers the flexibility of either permanent, vacuum-magnet or magnet mounting. Featuring 12-24 VDC operation, the Reflex® uses high intensity LEDs and reflective technology to maximize light output. Users can select from 18 flash patterns, either via trigger wire on permanent mount models or cigarette plug switch on magnetic models. Permanent mount models can also be synchronized to operate multiple lights alternately or simultaneously.

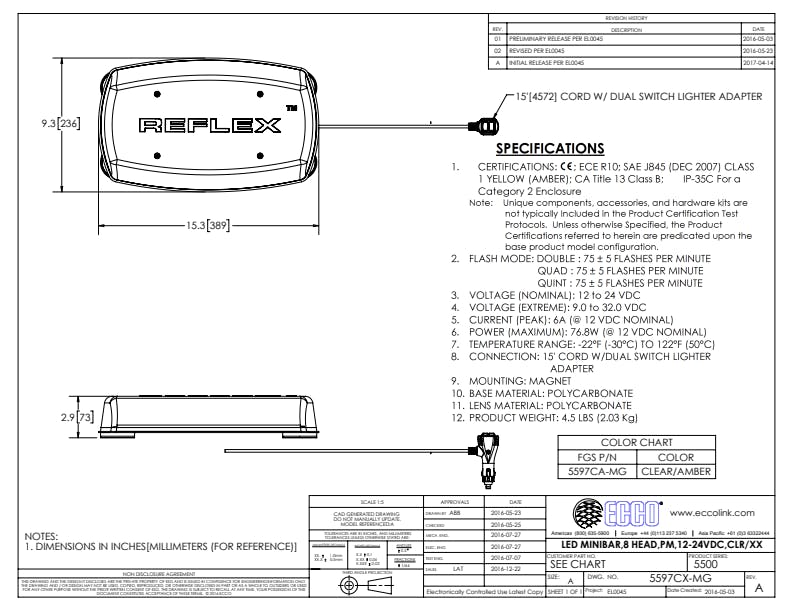

• Reflex Series; 2.5"H x 15.3"W x 9.3"D; 6 amps; 12-24V DC; 18 flash patterns; Clear Lens; Amber Single-Color Illumination; Magnet Mount; Approvals: SAE Class I/CA Title 13/CE/R10; Lenticular optic lens; Reflective & TIR Optic LED modules.

---

Information:

LED Minibar: Reflex Series; 2.5" Height x 15.3" Width x 9.3" Depth; 6 amps; 12-24V DC; 18 flash patterns; Clear Dome Color; Amber Single-Color Illumination; Magnet Mount; Approval Ratings: SAE Class I, California Title 13, CE, R10; Lenticular optic lens with combined Reflective and TIR Optic LED modules to optimize focused front/rear warning and wide-angle side warning; Choice of 18 flash patterns: Quad Flash, Double Flash, Fast Double, Slow Quad, Slow Double, Quint-Hold, Burst, Alternate Quad, Diagonal Quad, Alternate Double, Diagonal Double, Alternate Quint-Hold, Diagonal Quint-Hold, Fast Rotate, Rotate/Quad, Wave Rotate, Random, & Steady On; Polycarbonate base & low profile lens; Temperature Range: -22°F to +122°F (-30°C to + +50°C); Replacement Parts: PN: R5507LA Amber Dome & PN: R5507LC Clear Dome.
