This Reflex 5585 Series LED Minibar (2.5"H x 15"W x 9"D, 2.7 amps) has reflective & TIR optic modules, 18 flash patterns, blue single-color illumination, clear lens, vacuum-magnet mount, & cigarette plug with on/off & flash pattern switch.

---

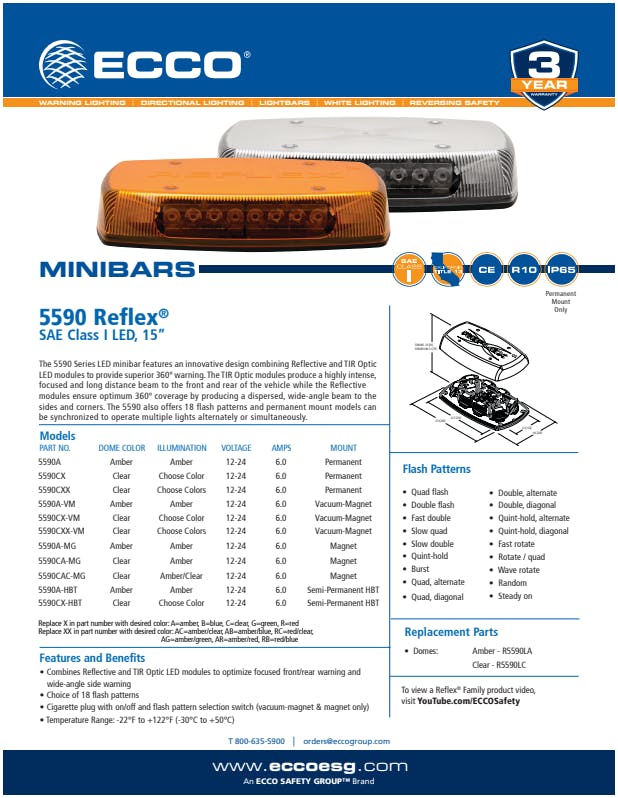

The 5590 Series LED minibar features an innovative design combining Reflective and TIR Optic LED modules to provide superior 360º warning. The TIR Optic modules produce a highly intense, focused and long distance beam to the front and rear of the vehicle while the Reflective modules ensure optimum 360º coverage by producing a dispersed, wide-angle beam to the sides and corners. The 5590 also offers 18 flash patterns and permanent mount models can be synchronized to operate multiple lights alternately or simultaneously.

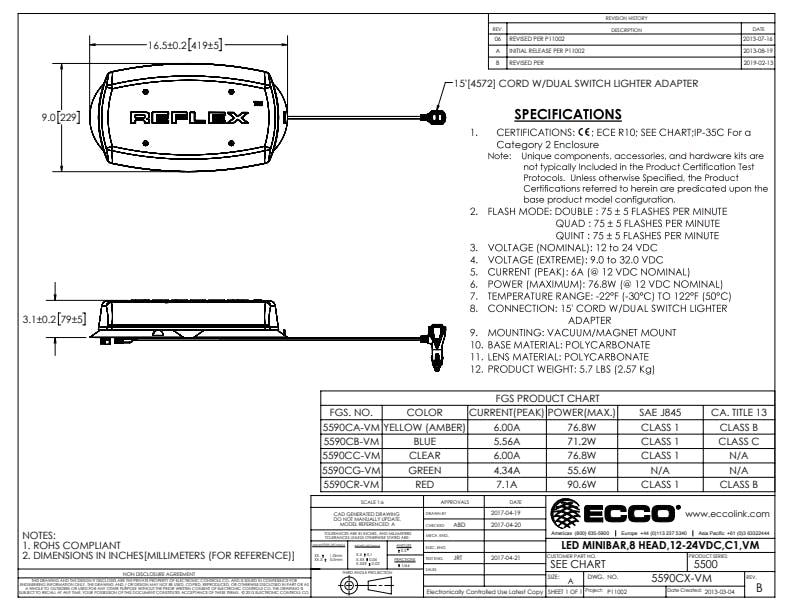

• Reflex Series; 2.5"H x 15"W x 9"D; 6 amps; 12-24V DC; 18 flash patterns; Clear Dome Color; Blue Single-Color Illumination; Vacuum-Magnet Mount; Approvals: SAE Class I/CA Title 13/CE/R10; Reflective & TIR Optic LED modules

---

Information:

LED Minibar: Reflex Series; 2.5" Height x 15" Width x 9" Depth; 6 amps; 12-24V DC; 18 flash patterns; Clear Dome Color; Blue Single-Color Illumination; Vacuum-Magnet Mount; Approval Ratings: SAE Class I, California Title 13, CE, R10; Combines Reflective and TIR Optic LED modules to optimize focused front/rear warning and wide-angle side warning; Choice of 18 flash patterns: Quad Flash, Double Flash, Fast Double, Slow Quad, Slow Double, Quint-Hold, Burst, Alternate Quad, Diagonal Quad, Alternate Double, Diagonal Double, Alternate Quint-Hold, Diagonal Quint-Hold, Fast Rotate, Rotate/Quad, Wave Rotate, Random, & Steady On; Cigarette plug with on/off selection switch (vacuum-magnet/magnet only); Temperature Range: -22°F to +122°F (-30°C to + +50°C); Replacement Parts: PN: R5590LA Amber Dome & PN: R5590LC Clear Dome.
