This Reflex 5580 Series LED Minibar (3.1"H x 15"W x 9"D, 2.7 amps) has 8 LED reflector modules, 18 flash patterns, amber single-color illumination, a clear lens, a permanent 4-bolt mount, & can sync to operate multiple lights.

---

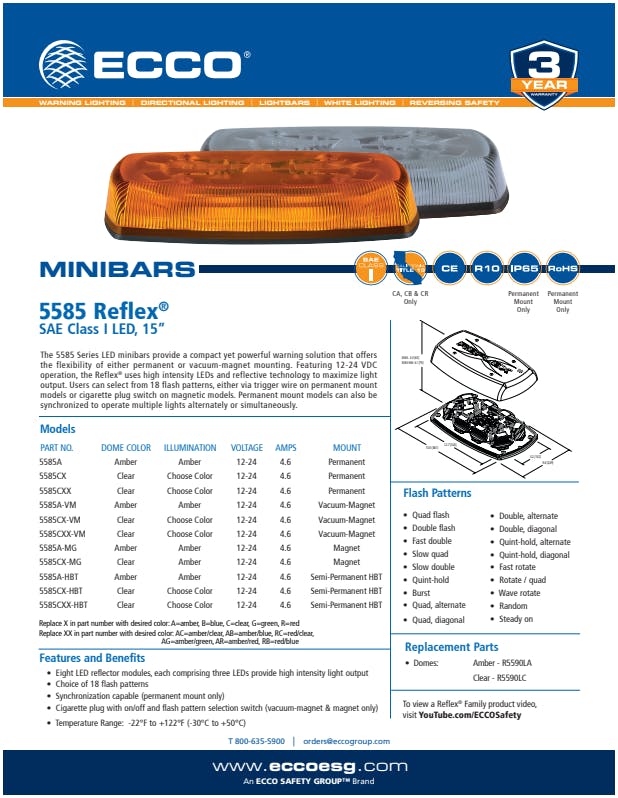

The 5585 Series LED minibars provide a compact yet powerful warning solution that offers the flexibility of either permanent or vacuum-magnet mounting. Featuring 12-24 V DC operation, the Reflex® uses high intensity LEDs and reflective technology to maximize light output. Users can select from 18 flash patterns, either via trigger wire on permanent mount models or cigarette plug switch on magnetic models. Permanent mount models can also be synchronized to operate multiple lights alternately or simultaneously.

• Reflex Series; 2.5"H x 15"W x 9"D; 12-24V DC; 18 flash patterns; Amber Illumination; Clear Dome Color; 5.1 amps; Permanent 4-Bolt Mount; Approval Ratings: SAE Class I, California Title 13, CE, R10, IP65, RoSH; 8 LED reflector modules.

---

Information:

LED Minibar: Reflex Series; 2.5" height x 15" width x 9" depth; 12-24V DC; 18 flash patterns; Amber Illumination; Clear Dome Color; 5.1 amps; Permanent 4-Bolt Mount; Approval Ratings: SAE Class I, California Title 13, CE, R10, IP65, RoSH; Eight LED reflector modules, each comprising three LEDs provide high intensity light output; Choice of 18 flash patterns: Quad Flash, Double Flash, Fast Double, Slow Quad, Slow Double, Quint-Hold, Burst, Alternate Quad, Diagonal Quad, Alternate Double, Diagonal Double, Alternate Quint-Hold, Diagonal Quint-Hold, Fast Rotate, Rotate/Quad, Wave Rotate, Random, & Steady On; Synchronization capable (permanent mount only); Cigarette plug with on/off and flash pattern selection switch (vacuum-magnet & magnet only); Temperature Range: -22°F to +122°F (-30°C to + +50°C); Replacement Parts: PN: R5590LA Amber Dome & PN: R5590LC Clear Dome.
