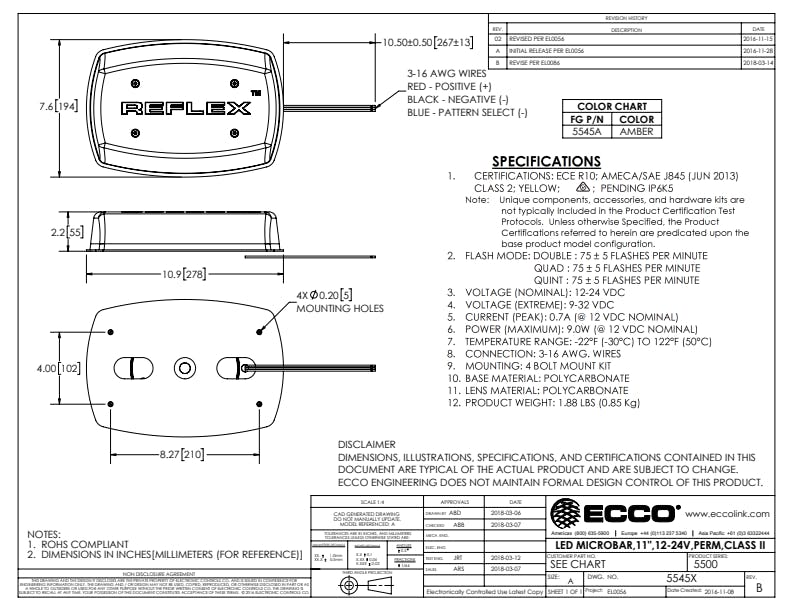

This Reflex 5545 Series LED Minibar (2.2"H x 10.9"W x 7.6"D, 0.7 amps) has 4 LED reflector modules with 6 LEDs, 18 flash patterns, amber single-color illumination, an amber low-profile lens, a permanent 4-bolt mount, & a polycarbonate base.
5545 Series LED microbars provide a super-compact yet powerful warning solution that offers the flexibility of either permanent or vacuum-magnet mounting. Featuring 12-24 VDC operation, the Reflex microbar uses high intensity LEDs to maximize light output. Users can select from 18 flash patterns, either via trigger wire on permanent mount models or cigarette plug switch on vacuum-magnet models.
5545 Series LED microbars provide a super-compact yet powerful warning solution that offers the flexibility of either permanent or vacuum-magnet mounting. Featuring 12-24 VDC operation, the Reflex microbar uses high intensity LEDs to maximize light output. Users can select from 18 flash patterns, either via trigger wire on permanent mount models or cigarette plug switch on vacuum-magnet models.
- Reflex Series; Permanent 4-Bolt Mount; 12-24V; 0.7 amps; 18 Flash Pattern; Approvals: SAE J845 Class II, R10, IP65, RoHS; 2.2"H x 10.9"W x 7.6"D; 4 LED reflector modules, each containing 6 LEDs; Polycarbonate base; Low profile lens.
Information:
Reflex Series; Amber Illumination; Amber Dome Color; Permanent 4-Bolt Mount; Zero Optic Dome; 12-24 V; 0.7 amps; 18 Flash Pattern; Approval Ratings: SAE J845 Class II, R10, IP65, RoHS; 2.2" height x 10.9" width x 7.6" depth; Four LED reflector modules, each containing six LEDs, provide high intensity light output; Choice of 18 flash patterns: Quad flash, Double flash, Fast double, Slow quad, Slow double, Quint-hold, Burst, Alternate Side-to-Side Quad, Diagonal Alternate Quad, Alternate Side-to-Side Double, Diagonal Alternate Double, Alternate Side-to-Side Quint-hold, Diagonal Alternate Quint-hold, Fast rotate, Rotate/quad, Wave rotate, Random, Steady on; Polycarbonate base & low profile lens; Temperature Range: -22°F to +122°F (-30°C to +50°C); Replacement Parts: PN: R5545LA Amber Dome and PN: R5545LC Clear Dome.Attributes | |
Category | Automotive Lighting |
Emission Code | Legal US |
Hazardous Material Code | N |
Life Cycle Status Code | Available to Order |
Series | LED Minibars |
Subcategory | LED Light Bars |
Warranty Time | 36 |
ECCO 5545A Reflex 5545 Series LED Microbar (11", Amber Lens, Amber LED, 4-Bolt Mount)
Product Information
- Brand: ECCO
- Product Number: 5545A
