CURT 83600 1-1/2-Inch Recessed Trailer Rope Ring Tie Down Anchor; 5;000 lbs Break Strength

---

Making sure that your cargo is tied down and fully secure for the journey is important for any towing job. Not only is unsecured cargo a danger to you, your passengers and your fellow drivers, but it can also cause damage to your trailer, pickup truck bed or vehicle cargo area, as well as to the cargo itself. Together with our cargo straps and safety chains, CURT tiedown anchors are easy to mount in any trailer, truck or full-size van, and they help keep your items safe for the road ahead. This particular tiedown anchor is a recessed floor / wall tiedown ring, designed to add a convenient anchoring point for cargo straps, ropes or cables. It comes with a 4-7/8 in. x 4-1/2 in. base and four mounting holes. The recessed feature allows it to remain flush with the base and out of the way when not in use, making it especially useful for truck beds and passenger vehicles. This rope ring features zinc-plated steel construction and offers a working load capacity of 5,000 lbs. (5,000 lbs. break strength). The 3/8 in. diameter mounting holes are spaced 3-3/8 in. x 2-7/8 in. apart, center to center. Mounting screws are not included in this package.

• Adds A Convenient Anchor Point For Ropes Bungee Cords Or Straps
• Perfect For Cargo Management In Trailers Trucks And Vans
• Features A Capacity Of 5000 Lbs.
• 4 7/8 In. X 4 1/2 In. Mounting Bracket Provides A Sturdy Base
• Recessed Design Eliminates Obstruction
• Constructed From High-Strength Steel
• Protected By A Durable Zinc-Plated Finish

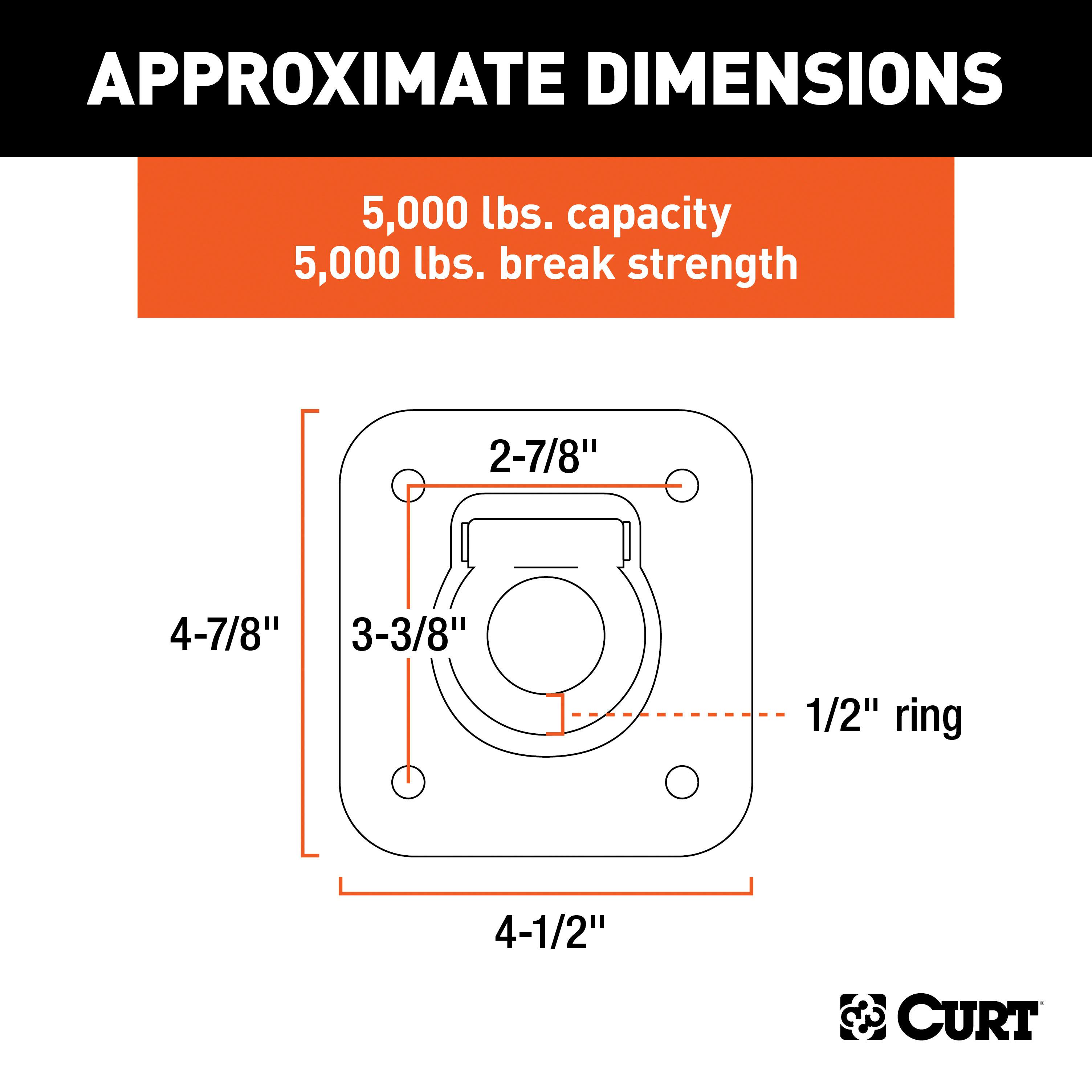

• 3/8 In. Dia. Mounting Holes Spaced 3 3/8 In. X 2 7/8 In. Apart
• Recessed

---

Information:

1-1/2 x 1-1/2 Recessed Tie-Down Ring (5,000 lbs, Clear Zinc); Adds a convenient anchor point for ropes, bungee cords or straps; Perfect for cargo management in trailers, trucks and vans; Rated for a working load capacity of 5,000 lbs. (7,000 lbs. break strength); 4-7/8 x 4-1/2 mounting bracket provides a sturdy base; Recessed design eliminates obstruction and provides a finished look; Constructed from high-strength steel; Protected by a durable zinc-plated finish; 3/8 diameter mounting holes spaced 3-3/8 x 2-7/8 apart, center to center; Limited lifetime warranty (one-year finish, one-year parts)

---

Application Summary:

Year	Make/Model
CURT	83600 1-1/2-Inch Recessed Trailer Rope Ring Tie Down Anchor, 7,000 lbs Break Strength
