CURT 58170 Vehicle-Side 7-Pin Round Trailer Wiring Harness Socket

---

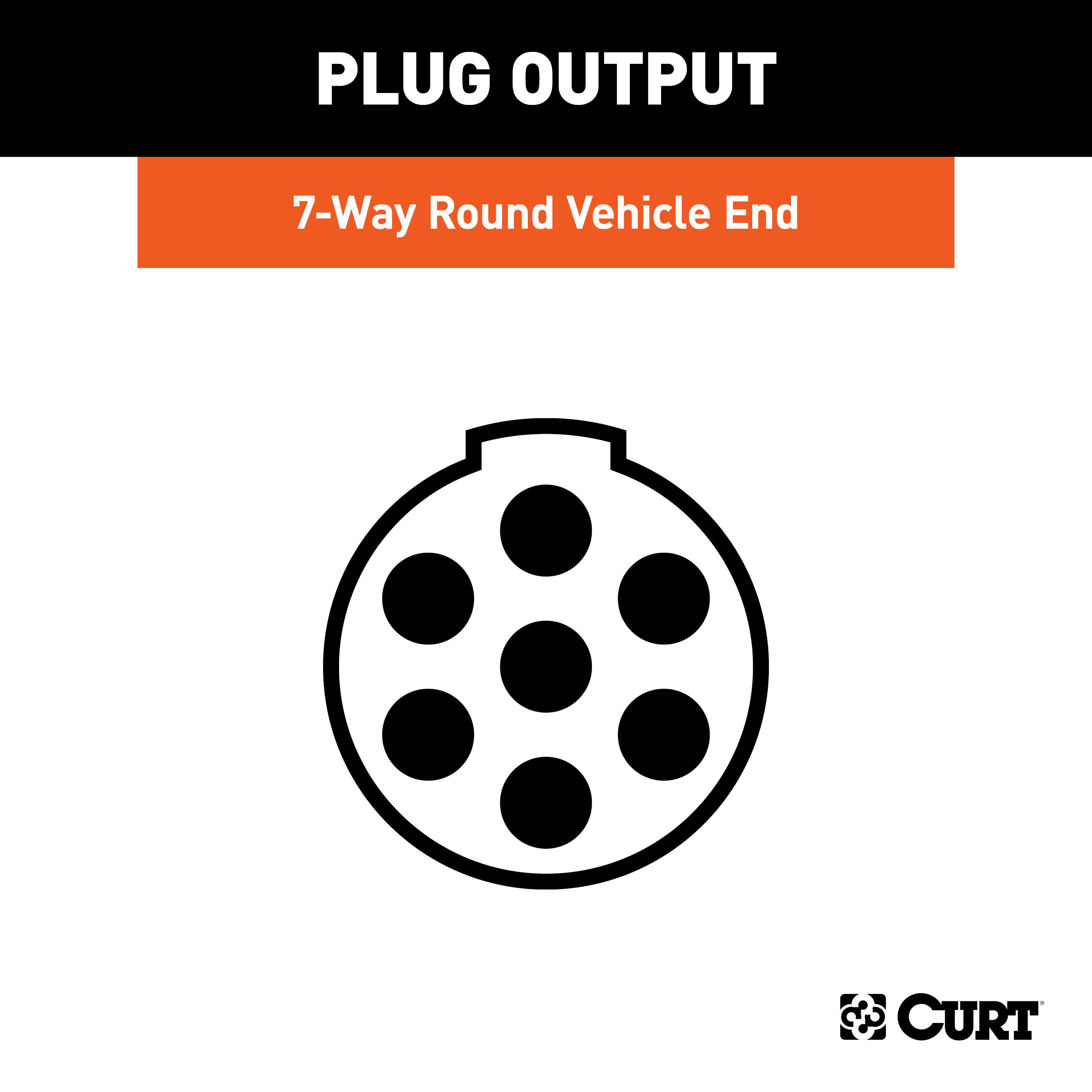

Like trailer hitches and ball mounts, electrical connectors range all over the board in shape, size and capability, but no matter what your trailers electrical functions are, you need a solid connection to keep the power flowing and ensure safety on the road. CURT electrical connectors are designed and manufactured to give you a reliable connection every time you plug in your trailer. This 7-way round connector is designed to supply power for tail lights, turn signals, electric trailer brakes, auxiliary power, reverse lights and brake lights, as well as a ground connection. It features durable die-cast metal construction and comes with a spring-loaded cover to keep out dust and water. This 7-way round connector is a female-end socket, specifically designed for the vehicle side of the connection. 7-way round connectors are commonly used on RV travel trailers, and this particular connector can be easily interchanges with other 7-way RV connectors.

• Splices Into Wiring To Provide A Connection For A Trailer Plug
• 7-Way Connects Tail Brake Reverse Turn Signals Brakes
• Interchangeable w/Other 7-Way Rave Connectors
• Constructed From Strong Die-Cast Metal
• Concealed Terminals Help Ensure A Reliable Connection
• Spring-Loaded Dust Cover Keeps Connector Clean When Not In Use
• 7-Way Round Connectors Commonly Used On Rave Travel Trailers

---

Information:

7-Way Round Connector Socket (Vehicle Side); Splices into vehicle wiring to provide a connection for a trailer plug; 7-way connects tail, brake, reverse, turn signals, brakes and auxiliary power; Interchangeable with other 7-way RV connectors; Constructed from strong die-cast metal; Concealed terminals help ensure a reliable connection; Spring-loaded dust cover keeps connector clean when not in use; 7-way round connectors commonly used on RV travel trailers

---

Application Summary:

Year	Make/Model
CURT	58170 Vehicle-Side 7-Pin Round Trailer Wiring Harness Socket
