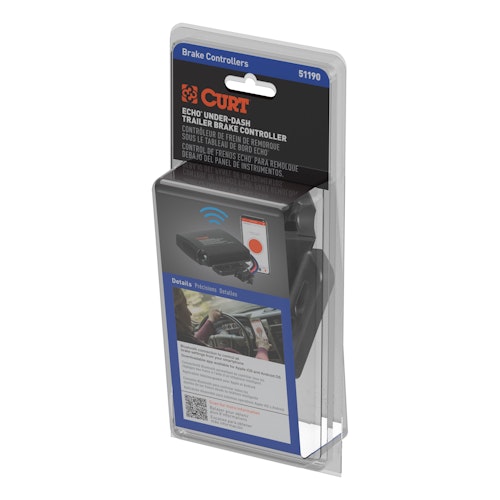

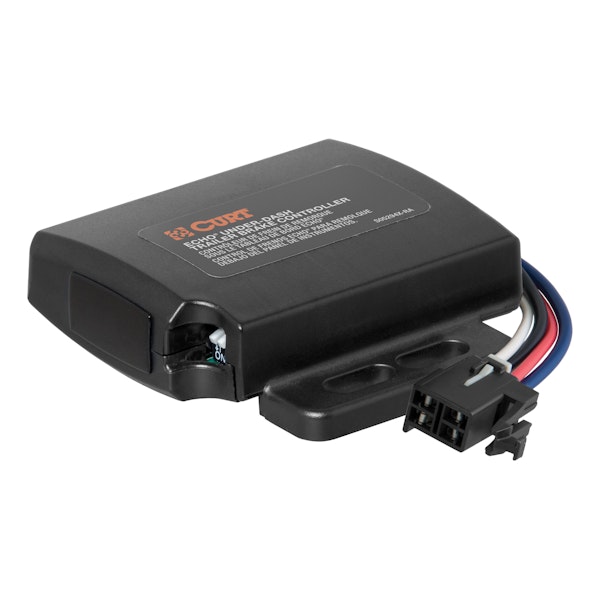

CURT 51190 Echo Under-Dash Electric Trailer Brake Controller with Bluetooth® Enabled Smartphone Connection, Proportional
The CURT Echo under-dash trailer brake controller is a Bluetooth enabled device that wirelessly connects to your smartphone and allows you to control and monitor all trailer brake activity right from your device. The Echo brake controller brings your towing experience into the modern age. Powered by Bluetooth, it wirelessly connects to your smartphone without any extra modules required. Simply download the Smart Control app on your Apple iOS or Android OS device, plug the Echo into your vehicle and you're ready to start towing. The app allows you to create multiple trailer profiles for different towing situations. The CURT Echo under-dash brake controller operates with a tri-axis circuit for smooth stops going up or down a hill, and it is able to operate up to two to eight trailer brakes at a time (one to four axles). It is also compatible with cruise control and ABS brakes.
- Bluetooth connection to control all brake settings from your smartphone
- Triple-axis, motion-sensing accelerometer for highly responsive, smooth stops
- Stores multiple trailer profiles
- Operates 2-8 trailer brakes at a time (1-4 axles)
- Multi-color LED indicator for easy setup and troubleshooting
- Clear, in-app warning system for voltage recognition and no-brake situations
- Downloadable app for Apple iOS (9 or higher) and Android OS (14 or higher)
- Sleep mode feature included to reduce power drain

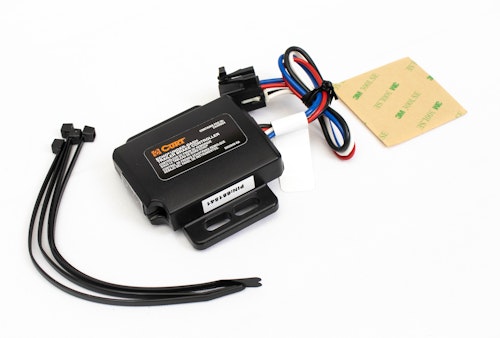

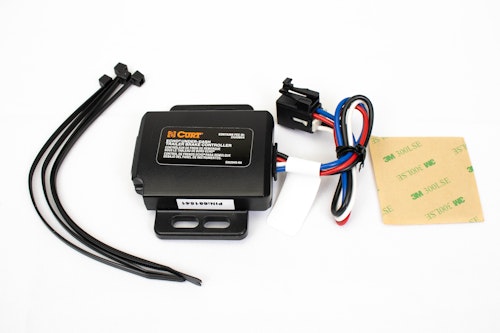

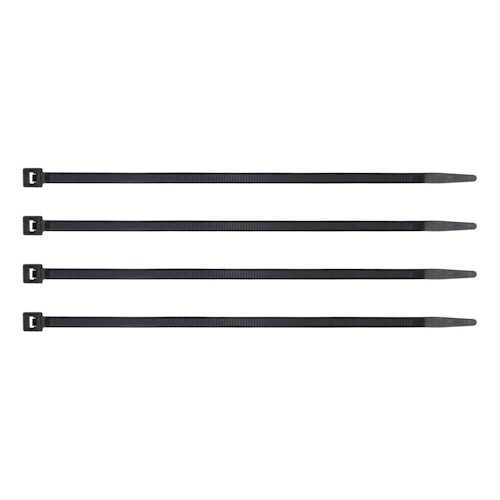

- Simple installation using included adhesive pad or zip ties
- Plug-and-play install with vehicle-specific quick plug harness (sold separately)
- Automatic calibration reduces setup requirements
- Allows incoming calls to be received while app is running
- Compatible with low-volt, PWM, ABS, and cruise control
- Built-in reverse-polarity and short-circuit protection
- Limited lifetime warranty
- Custom-designed app monitors brake activity and sends status updates
Information:
Custom-designed app monitors brake activity and sends status updates
Application Summary:
Year |
Make/Model |
CURT |
51190 Echo Under-Dash Electric Trailer Brake Controller with Bluetooth® Enabled Smartphone Connection, Proportional |
Attributes |
Activation |
Tri-axis inertia, Tri-axis inertia |
Axles |
1-4, 1-4 |
Box Height in Inches - XA |
2, 2 |
Box Length in Inches - XA |
7, 7 |
Box Width in Inches - XA |
4, 4 |
California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Container Volume Cubic Feet - XA |
0.00000 |
Container Volume Cubic Meter - XA |
0.00000 |
Country of Origin (Primary) |
MX |
Display |
Phone App, Phone App |
Finish - XA |
BLACK PLASTIC, BLACK PLASTIC |
GTIN |
00612314511907 |
Harmonized Tariff Code (Schedule B) |
8537109160 |
Hazardous Material Code |
N |
Item Class - XA |
CME, CME |
Item Height - XA |
10.000, 10.000 |
Item Length - XA |
18.000, 18.000 |
Item Width - XA |
8.000, 8.000 |
Level Adjust |
Auto, Auto |
Life Cycle Status Code |
Available to Order |
Master Case Height Inches - XA |
10.000 |
Master Case ITF14 |
20612314511901 |
Master Case ITF14 - XA |
20612314511901 |
Master Case Length Inches - XA |
18.000 |
Master Case Qty - XA |
18 |
Master Case Volume Cubic Feet - XA |
0.00000 |
Master Case Weight Lbs - XA |
6.184 |
Master Case Width Inches - XA |
8.000 |
Material - XA |
Plastic |
Mount Angles |
N/A, N/A |
Mount Type Description - XA |
Not Applicable |
NAFTA Preference Criterion Code |
B |
Pallet Case Per - XA |
40 |
Pallet Case Per Layer - XA |
10 |
Pallet Cases Per - XA |
40 |
Pallet Cases Per Layer - XA |
10 |
Pallet Layer of Cases - XA |
4 |
Pallet Qty - XA |
720.000 |
Pallet Total Height Inches - XA |
47.500, 47.500 |
Pallet Total Weight Per - XA |
287.360, 287.360 |
Parcel Allowed - XA |
Yes, Yes |
Product Weight - XA |
0.000, 0.000 |
Rate Class - XA |
85.0, 70.0 |
Retail Height - XA |
2.000, 2.000 |
Retail Length - XA |
9.000, 9.000 |
Retail Width - XA |
4.000, 4.000 |
SDR Required Flag |
N |
Sales Family Code - XA |
ELECT, ELECT |
Sales Family Description - XA |
ELECTRICAL COMPONENTS, ELECTRICAL COMPONENTS |
Sales Group Description - XA |
CNTRL, CNTRL |
Shipping Weight - XA |
0.288, 0.288 |
Side Application Type Description - XA |
Not Applicable, Not Applicable |
Tariff 301 - XA |
No, No |
Truckload Volume Cubic Feet - XA |
0.00000, 0.00000 |
Warranty |
One-Year Limited Warranty, One-Year Limited Warranty |
