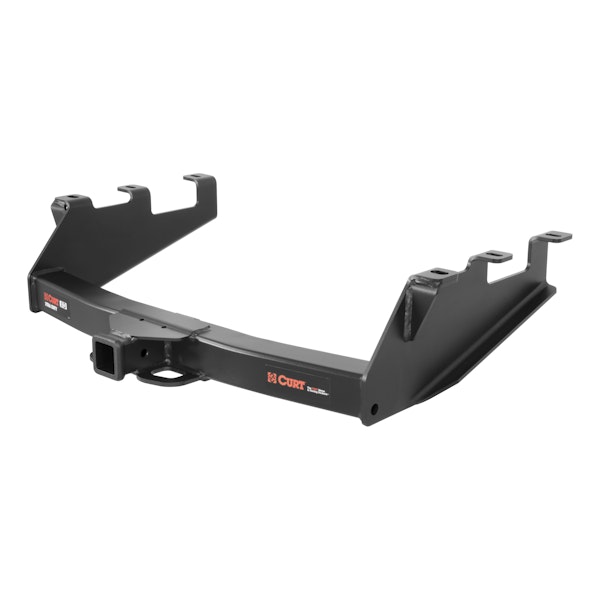

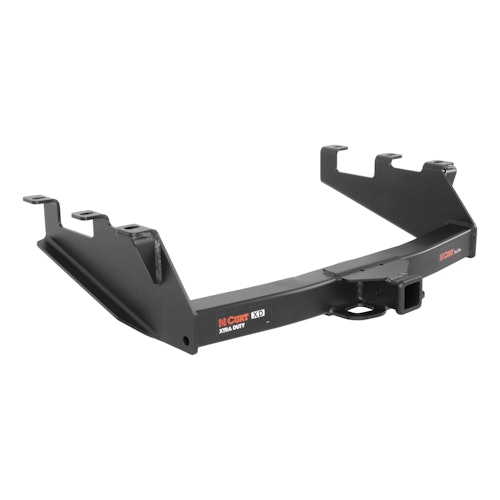

CURT 15323 Xtra Duty Class 5 Trailer Hitch, 2-In Receiver, Compatible with Select Chevrolet Silverado, GMC Sierra 1500, 2500

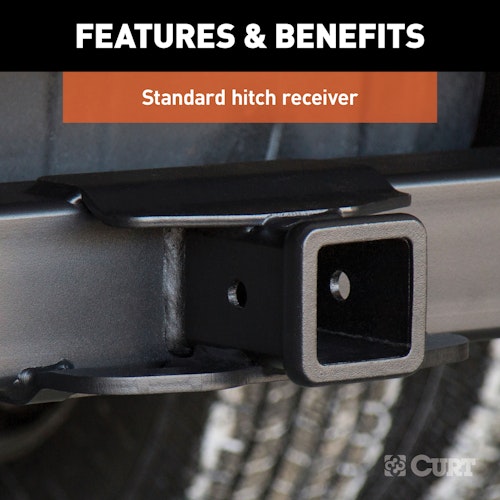

When we came to the limits of towing capacity, we wanted to know what else was out there. What could we discover off the beaten path? So, we kept going. CURT class 5 Xtra Duty hitches begin a class of their own, beyond class 4 and beyond anything the standards dictate. They are designed for the hard road where only full-size pickup trucks, vans and SUVs dare to tread. They are capable of pulling almost any heavy-duty trailer, including toy haulers, dump trailers, logging trailers, small yacht trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component). This particular Xtra Duty class 5 trailer hitch offers a gross trailer weight capacity of 16,000 lbs. and an extra-high tongue weight capacity of 2,400 lbs. It features a 2" x 2" receiver tube opening to accept a ball mount or hitch-mounted accessory, such as a cargo carrier or winch mount. It is designed to be a custom-fit trailer hitch for certain years of the Chevy Silverado 1500, 1500 Classic, 1500 HD, 1500 HD Classic or 2500 and GMC Sierra 1500, 1500 Classic, 1500 HD, 1500 HD Classic or 2500 (to verify compatibility with your vehicle, see application info). For a little extra towing power and stability, this class 5 hitch can also be used in combination with a weight distributing hitch. It is rated for 17,000 lbs. WD and 2,400 lbs. WDTW. In our drive to create a more powerful hitch, CURT has not neglected the finer details. Our class 5 trailer hitches are welded with precision and go through multiple stages of cleaning to create a smooth surface that is ready to accept our co-cured finish. To protect them from corrosion, chipping and UV damage, these hitches are immersed in a liquid A-coat and then finished in a high-quality black carbide powder coat. They come with grade-8 mounting hardware for solid installation.
- Limited lifetime warranty (one-year finish, one-year parts)
Information:
Rated to 16,000 lbs. gross trailer weight and 2,400 lbs. tongue weight
Application Summary:
| Year |
Make/Model |
| 1999-2013 |
Chevrolet Silverado 1500 |
| 2007 |
Chevrolet Silverado 1500 Classic |
| 2001-2003 |
Chevrolet Silverado 1500 HD |
| 2005-2006 |
Chevrolet Silverado 1500 HD |
| 2007 |
Chevrolet Silverado 1500 HD Classic |
| 1999-2004 |
Chevrolet Silverado 2500 |
| 1999-2013 |
GMC Sierra 1500 |
| 2007 |
GMC Sierra 1500 Classic |
| 2001-2003 |
GMC Sierra 1500 HD |
| 2005-2006 |
GMC Sierra 1500 HD |
| 2007 |
GMC Sierra 1500 HD Classic |
| 1999-2004 |
GMC Sierra 2500 |
| Attributes |
| ASIN |
B00F9X70B0 |
| Body Shape |
Square |
| Box Height in Inches - XA |
26, 33 |
| Box Length in Inches - XA |
48, 48 |
| Box Width in Inches - XA |
12, 14 |
| California Proposition 65 |
Yes |
| Class ID |
8, 8 |
| Container Volume Cubic Feet - XA |
0.00000 |
| Container Volume Cubic Meter - XA |
0.00000 |
| Country of Origin (Primary) |
US |
| Drilling Required |
No |
| Finish |
Carbide Black Powder Coat |
| Finish - XA |
CARBIDE BLACK POWDER COAT |
| GTIN |
00612314153237 |
| Gross Trailer Weight |
16000 lbs. |
| Gross Trailer Weight (lbs.) |
16000 |
| Harmonized Tariff Code (Schedule B) |
8708998180 |
| Hazardous Material Code |
N |
| Install Time |
30 Minutes |
| Item Class - XA |
MFH, MFH |
| Item Height - XA |
9.220, 9.220 |
| Item Length - XA |
41.120, 41.120 |
| Item Width - XA |
28.080, 28.080 |
| Life Cycle Status Code |
Available to Order |
| Long Description |
Class V Trailer Hitch |
| Main Body Shape |
Square, Square |
| Master Case Height Inches - XA |
0.000 |
| Master Case Length Inches - XA |
0.000 |
| Master Case Volume Cubic Feet - XA |
0.00000 |
| Master Case Weight Lbs - XA |
0.000 |
| Master Case Width Inches - XA |
0.000 |
| Material - XA |
Carbon Steel |
| Mount Type Description - XA |
Blank |
| NAFTA Preference Criterion Code |
B |
| Pallet Qty - XA |
10.000 |
| Pallet Total Height Inches - XA |
0.000, 0.000 |
| Pallet Total Weight Per - XA |
0.000, 0.000 |
| Parcel Allowed - XA |
Yes, Yes |
| Position |
Rear |
| Price Code - XA |
83, 83 |
| Product Weight - XA |
61.000, 61.000 |
| Rate Class - XA |
70.0, 125.0 |
| Receiver Tube Size |
2 IN, 2.000 in. |
| Retail Height - XA |
13.000, 13.000 |
| Retail Length - XA |
49.000, 49.000 |
| Retail Width - XA |
28.000, 28.000 |
| SDR Required Flag |
N |
| Sales Family Code - XA |
HITCH, HITCH |
| Sales Family Description - XA |
HITCH, HITCH |
| Sales Group Description - XA |
CL 5, CL 5 |
| Shipping Weight - XA |
68.600, 68.600 |
| Side Application Type Description - XA |
Blank, Blank |
| Tariff 301 - XA |
No, No |
| Tongue Weight (TW) |
2,400 LB, 2,400 LB |
| Tongue Weight(TW) |
2,400 LB |
| Truckload Volume Cubic Feet - XA |
0.00000, 0.00000 |
| Visibility |
Exposed |
| WC Tongue Weight |
2400 |
| WD Tongue Weight |
2400 |
| Warranty |
Limited Lifetime Warranty (One-Year Finish, One-Year Parts), Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Weight Carrying Capacity |
16000 |
| Weight Carrying Capacity (WC) |
16,000 LB, 16,000 LB |
| Weight Carrying Capacity(WC) |
16,000 LB |
| Weight Distribution |
17000 |
| Weight Distribution (WD) |
17,000 LB, 17,000 LB |
| Weight Distribution Tongue Weight (WDTW) |
2,400 LB, 2,400 LB |
| Weight Distribution Tongue Weight(WDTW) |
2,400 LB |
| Weight Distribution(WD) |
17,000 LB |
