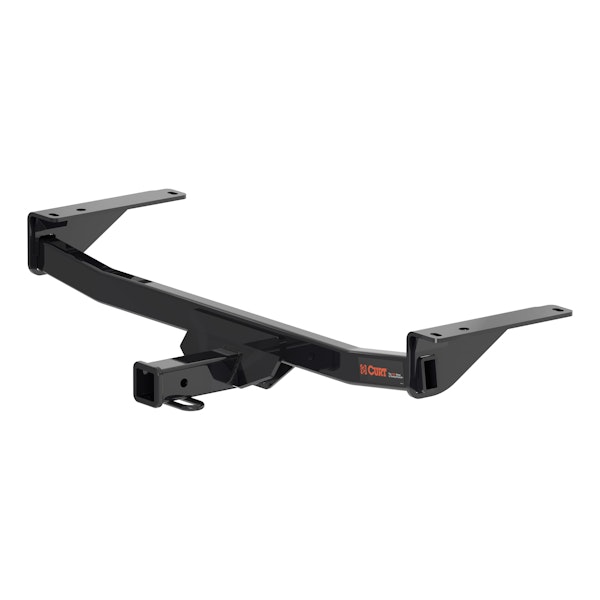

CURT 13458 Class 3 Trailer Hitch, 2-Inch Receiver, Fits Select Volkswagen Atlas Cross Sport
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Volkswagen Atlas Cross Sport (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 5,000 lbs. GTW and 750 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
- Rated to 5,000 lbs. gross trailer weight and 750 lbs. tongue weight
Information:
Rated to 5,000 lbs. gross trailer weight and 750 lbs. tongue weight
Application Summary:
| Year |
Make/Model |
| 2020-2025 |
Volkswagen Atlas Cross Sport |
| Attributes |
| Body Shape |
Square |
| Box Height in Inches - XA |
22, 22 |
| Box Length in Inches - XA |
48, 48 |
| Box Width in Inches - XA |
10, 10 |
| California Proposition 65 |
Yes |
| Class ID |
3, 3 |
| Container Volume Cubic Feet - XA |
0.00000 |
| Container Volume Cubic Meter - XA |
0.00000 |
| Country of Origin (Primary) |
US |
| Finish - XA |
GLOSS BLACK POWDER COAT, GLOSS BLACK POWDER COAT |
| GTIN |
00612314134588 |
| Gross Trailer Weight |
5000 lbs. |
| Harmonized Tariff Code (Schedule B) |
8708998180 |
| Hazardous Material Code |
N |
| Item Class - XA |
MFH, MFH |
| Item Height - XA |
8.560, 0.000 |
| Item Length - XA |
47.280, 0.000 |
| Item Width - XA |
20.090, 0.000 |
| Life Cycle Status Code |
Available to Order |
| Main Body Shape |
Square, Square |
| Master Case Height Inches - XA |
0.000 |
| Master Case Length Inches - XA |
0.000 |
| Master Case Volume Cubic Feet - XA |
0.00000 |
| Master Case Weight Lbs - XA |
0.000 |
| Master Case Width Inches - XA |
0.000 |
| Material - XA |
Carbon Steel |
| Mount Type Description - XA |
Not Applicable |
| NAFTA Preference Criterion Code |
B |
| Pallet Qty - XA |
20.000 |
| Pallet Total Height Inches - XA |
0.000, 0.000 |
| Pallet Total Weight Per - XA |
0.000, 0.000 |
| Parcel Allowed - XA |
Yes, Yes |
| Position |
Rear |
| Price Code - XA |
78, 78 |
| Product Weight - XA |
48.000, 48.000 |
| Rate Class - XA |
70.0, 125.0 |
| Receiver Tube Size |
2 IN, 2.000 in. |
| Retail Height - XA |
0.000, 22.630 |
| Retail Length - XA |
0.000, 48.500 |
| Retail Width - XA |
0.000, 10.500 |
| SDR Required Flag |
N |
| Sales Family Code - XA |
HITCH, HITCH |
| Sales Family Description - XA |
HITCH, HITCH |
| Sales Group Description - XA |
CL 3, CL 3 |
| Shipping Weight - XA |
55.000, 55.000 |
| Side Application Type Description - XA |
Not Applicable, Not Applicable |
| Tariff 301 - XA |
No, No |
| Tongue Weight (TW) |
750 LB, 750 LB |
| Truckload Volume Cubic Feet - XA |
0.00000, 0.00000 |
| Warranty |
Limited Lifetime Warranty (One-Year Finish, One-Year Parts), Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Weight Carrying Capacity (WC) |
5,000 LB, 5,000 LB |
