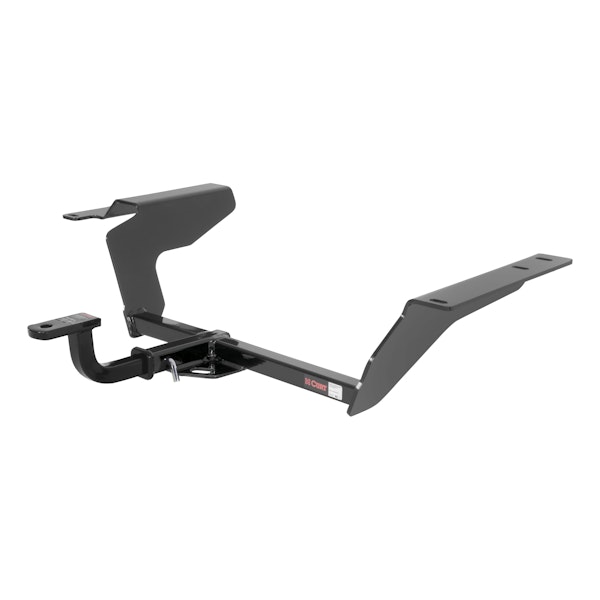

CURT 114473 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Chevrolet Cobalt, HHR, Pontiac Pursuit, G5, Saturn Ion
Connect to your lifestyle with a custom hitch receiver from CURT. All of our custom hitches are designed for a vehicle-specific fit, manufactured with pride, finished for industry-leading rust resistance and tested to rigorous SAE J684 standards for safety. This class 1 trailer hitch and ball mount combination is designed for a custom fit on select years of the Chevrolet Cobalt, Chevrolet HHR, Pontiac G5, Pontiac Pursuit and Saturn Ion (see application info to verify fitment). The hitch integrates with the vehicle's frame and provides a useful and dependable 1-1/4" x 1-1/4" receiver. The receiver is perfect for attaching the included ball mount and towing a small trailer, or for adding cargo space with a hitch-mounted cargo carrier, bike rack or other accessory. This particular class 1 hitch is rated for 2,000 pounds gross trailer weight and 200 pounds tongue weight (never exceed the lowest-rated towing component). The ball mount included with this trailer hitch quickly and easily installs into the hitch receiver and has a 3/4" trailer ball hole (trailer ball not included). It can be mounted in the rise or drop position to promote level towing. Like all CURT custom hitches, this class 1 hitch is protected with our co-cured finishing process. It is descaled for a smooth surface, immersed in liquid A-coat for rust resistance inside and out, covered with a durable black powder coat and finally co-cured for an industry-leading rust, chip and UV-resistant shield. No matter where you're headed or which season of the year you’re towing in, this CURT hitch is equipped for long-lasting resilience to the elements. It features an open-back receiver for easy cleaning, and it comes with all the hardware necessary for the installation.
Connect to your lifestyle with a custom hitch receiver from CURT. All of our custom hitches are designed for a vehicle-specific fit, manufactured with pride, finished for industry-leading rust resistance and tested to rigorous SAE J684 standards for safety. This class 1 trailer hitch and ball mount combination is designed for a custom fit on select years of the Chevrolet Cobalt, Chevrolet HHR, Pontiac G5, Pontiac Pursuit and Saturn Ion (see application info to verify fitment). The hitch integrates with the vehicle's frame and provides a useful and dependable 1-1/4" x 1-1/4" receiver. The receiver is perfect for attaching the included ball mount and towing a small trailer, or for adding cargo space with a hitch-mounted cargo carrier, bike rack or other accessory. This particular class 1 hitch is rated for 2,000 pounds gross trailer weight and 200 pounds tongue weight (never exceed the lowest-rated towing component). The ball mount included with this trailer hitch quickly and easily installs into the hitch receiver and has a 3/4" trailer ball hole (trailer ball not included). It can be mounted in the rise or drop position to promote level towing. Like all CURT custom hitches, this class 1 hitch is protected with our co-cured finishing process. It is descaled for a smooth surface, immersed in liquid A-coat for rust resistance inside and out, covered with a durable black powder coat and finally co-cured for an industry-leading rust, chip and UV-resistant shield. No matter where you're headed or which season of the year you’re towing in, this CURT hitch is equipped for long-lasting resilience to the elements. It features an open-back receiver for easy cleaning, and it comes with all the hardware necessary for the installation.
- Rated to 2,000 lbs. gross trailer weight and 200 lbs. tongue weight
Information:
Tested for safety in accordance with SAE J684Application Summary:
| Year | Make/Model |
|---|---|
| 2005-2010 | Chevrolet Cobalt |
| 2006-2011 | Chevrolet HHR |
| 2007-2010 | Pontiac G5 |
| 2005-2006 | Pontiac Pursuit |
| 2004-2007 | Saturn Ion |
| Attributes | |
| ASIN | B000JF0RWM |
| Body Shape | Square |
| Box Height in Inches - XA | 25, 25 |
| Box Length in Inches - XA | 41, 41 |
| Box Width in Inches - XA | 12, 12 |
| California Proposition 65 | Yes |
| Class ID | 1, 1 |
| Container Volume Cubic Feet - XA | 0.00000 |
| Container Volume Cubic Meter - XA | 0.00000 |
| Country of Origin (Primary) | US |
| Drilling Required | Yes |
| Finish | Gloss Black Powder Coat |
| Finish - XA | GLOSS BLACK POWDER COAT, GLOSS BLACK POWDER COAT |
| GTIN | 00612314114474 |
| Gross Trailer Weight | 2000 lbs. |
| Gross Trailer Weight (lbs.) | 2000 |
| Harmonized Tariff Code (Schedule B) | 8708998180 |
| Hazardous Material Code | N |
| Hole Size | 3/4 IN, 3/4 IN |
| Install Time | 30 Minutes |
| Item Class - XA | MFH, MFH |
| Item Height - XA | 10.260, 10.260 |
| Item Length - XA | 41.120, 41.120 |
| Item Width - XA | 23.340, 23.340 |
| Life Cycle Status Code | Available to Order |
| Long Description | Class I Trailer Hitch, Pin & Clip, Old-Style Ball Mount |
| Main Body Shape | Square, Square |
| Master Case Height Inches - XA | 0.000 |
| Master Case Length Inches - XA | 0.000 |
| Master Case Volume Cubic Feet - XA | 0.00000 |
| Master Case Weight Lbs - XA | 0.000 |
| Master Case Width Inches - XA | 0.000 |
| Material - XA | Carbon Steel |
| Mount Type Description - XA | Blank |
| NAFTA Preference Criterion Code | B |
| Pallet Qty - XA | 0.000 |
| Pallet Total Height Inches - XA | 0.000, 0.000 |
| Pallet Total Weight Per - XA | 0.000, 0.000 |
| Parcel Allowed - XA | Yes, Yes |
| Position | Rear |
| Price Code - XA | 149K, 149K |
| Product Weight - XA | 43.000, 43.000 |
| Rate Class - XA | 70.0, 60.0 |
| Receiver Tube Size | 1-1/4 IN, 1.250 in. |
| Retail Height - XA | 13.000, 13.000 |
| Retail Length - XA | 42.000, 42.000 |
| Retail Width - XA | 27.000, 27.000 |
| SDR Required Flag | N |
| Sales Family Code - XA | HITCH, HITCH |
| Sales Family Description - XA | HITCH, HITCH |
| Sales Group Description - XA | CL 1, CL 1 |
| Shipping Weight - XA | 50.805, 50.805 |
| Side Application Type Description - XA | Blank, Blank |
| Tariff 301 - XA | No, No |
| Tongue Weight (TW) | 200 LB, 200 LB |
| Tongue Weight(TW) | 200 LB |
| Truckload Volume Cubic Feet - XA | 0.00000, 0.00000 |
| Visibility | Exposed |
| WC Tongue Weight | 200 |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts), Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Weight Carrying Capacity | 2000 |
| Weight Carrying Capacity (WC) | 2,000 LB, 2,000 LB |
| Weight Carrying Capacity(WC) | 2,000 LB |
| Weight Distribution (WD) | n/a |
| Weight Distribution Tongue Weight (WDTW) | n/a |
| Weight Distribution Tongue Weight(WDTW) | n/a |
| Weight Distribution(WD) | n/a |
CURT 114473 Class 1 Hitch, 1-1/4 Mount, Select Cobalt, HHR, Pursuit, G5, Ion
Product Information
- Brand: CURT
- Product Number: 114473
Call for Pricing
