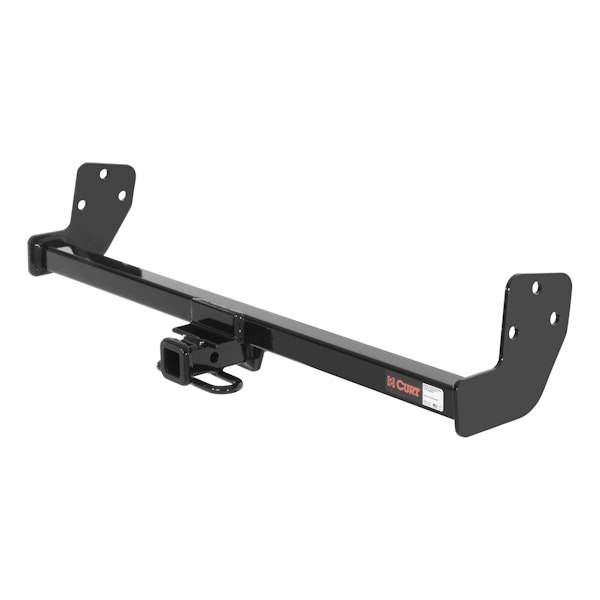

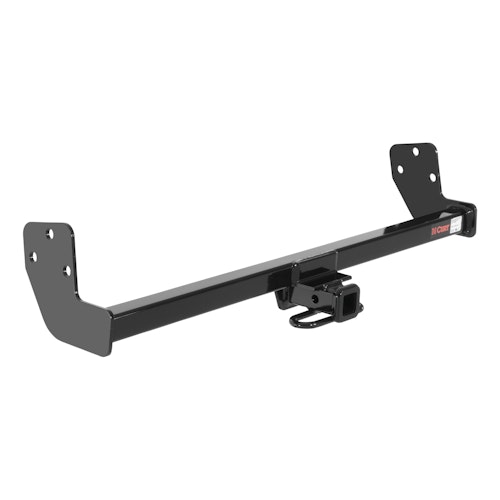

CURT 11181 Class 1 Trailer Hitch, 1-1/4-Inch Receiver, Fits Select Chevrolet Prizm, Geo Prizm, Toyota Corolla

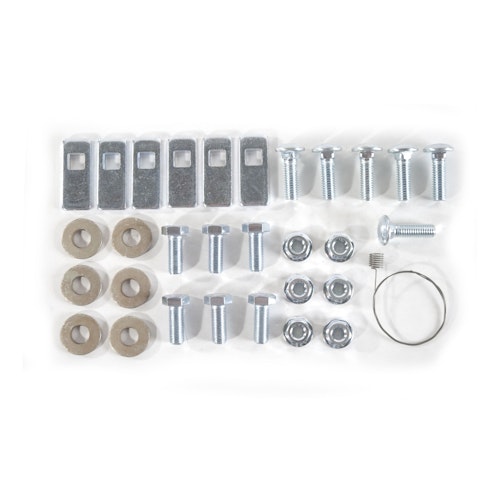

However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It. Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity. Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV. This particular class 1 hitch is designed to be a custom hitch for certain years of the Chevy Prizm, Geo Prizm and Toyota Corolla (to verify vehicle compatibility, see the CURT application guide at curtmfg.com). Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs. GTW and 200 lbs. TW. It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount. This class 1 hitch also comes with all necessary mounting hardware. With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier. They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches. Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding. We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays.
- Rated to 2,000 lbs. gross trailer weight and 200 lbs. tongue weight
Information:
Rated to 2,000 lbs. gross trailer weight and 200 lbs. tongue weight
Application Summary:
| Year |
Make/Model |
| 1998-2002 |
Chevrolet Prizm |
| 1993-1997 |
Geo Prizm |
| 1993-2002 |
Toyota Corolla |
| Attributes |
| Body Shape |
Square |
| Box Height in Inches - XA |
13, 13 |
| Box Length in Inches - XA |
43, 43 |
| Box Width in Inches - XA |
7, 7 |
| California Proposition 65 |
Yes |
| Class ID |
1, 1 |
| Container Volume Cubic Feet - XA |
0.00000 |
| Container Volume Cubic Meter - XA |
0.00000 |
| Country of Origin (Primary) |
US |
| Drilling Required |
No |
| Finish |
Gloss Black Powder Coat |
| Finish - XA |
GLOSS BLACK POWDER COAT, GLOSS BLACK POWDER COAT |
| GTIN |
00612314010936 |
| Gross Trailer Weight |
2000 lbs. |
| Gross Trailer Weight (lbs.) |
2000 |
| Harmonized Tariff Code (Schedule B) |
8708998180 |
| Hazardous Material Code |
N |
| Install Time |
30 Minutes |
| Item Class - XA |
MFH, MFH |
| Item Height - XA |
7.860, 7.860 |
| Item Length - XA |
33.960, 33.960 |
| Item Width - XA |
9.500, 9.500 |
| Life Cycle Status Code |
Available to Order |
| Long Description |
Class I Trailer Hitch, Pin & Clip, No Ball Mount |
| Main Body Shape |
Square, Square |
| Master Case Height Inches - XA |
0.000 |
| Master Case Length Inches - XA |
0.000 |
| Master Case Volume Cubic Feet - XA |
0.00000 |
| Master Case Weight Lbs - XA |
0.000 |
| Master Case Width Inches - XA |
0.000 |
| Material - XA |
Carbon Steel |
| Mount Type Description - XA |
Blank |
| NAFTA Preference Criterion Code |
B |
| Pallet Qty - XA |
60.000 |
| Pallet Total Height Inches - XA |
0.000, 0.000 |
| Pallet Total Weight Per - XA |
0.000, 0.000 |
| Parcel Allowed - XA |
Yes, Yes |
| Position |
Rear |
| Price Code - XA |
129, 129 |
| Product Weight - XA |
21.000, 21.000 |
| Rate Class - XA |
70.0, 125.0 |
| Receiver Tube Size |
1-1/4 IN, 1.250 in. |
| Retail Height - XA |
8.000, 34.000 |
| Retail Length - XA |
44.000, 8.000 |
| Retail Width - XA |
15.000, 10.000 |
| SDR Required Flag |
N |
| Sales Family Code - XA |
HITCH, HITCH |
| Sales Family Description - XA |
HITCH, HITCH |
| Sales Group Description - XA |
CL 1, CL 1 |
| Shipping Weight - XA |
29.000, 21.000 |
| Side Application Type Description - XA |
Blank, Blank |
| Tariff 301 - XA |
No, No |
| Tongue Weight (TW) |
200 LB, 200 LB |
| Tongue Weight(TW) |
200 LB |
| Truckload Volume Cubic Feet - XA |
0.00000, 0.00000 |
| Visibility |
Concealed |
| WC Tongue Weight |
200 |
| Warranty |
Limited Lifetime Warranty (One-Year Finish, One-Year Parts), Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Weight Carrying Capacity |
2000 |
| Weight Carrying Capacity (WC) |
2,000 LB, 2,000 LB |
| Weight Carrying Capacity(WC) |
2,000 LB |
| Weight Distribution (WD) |
n/a |
| Weight Distribution Tongue Weight (WDTW) |
n/a |
| Weight Distribution Tongue Weight(WDTW) |
n/a |
| Weight Distribution(WD) |
n/a |
