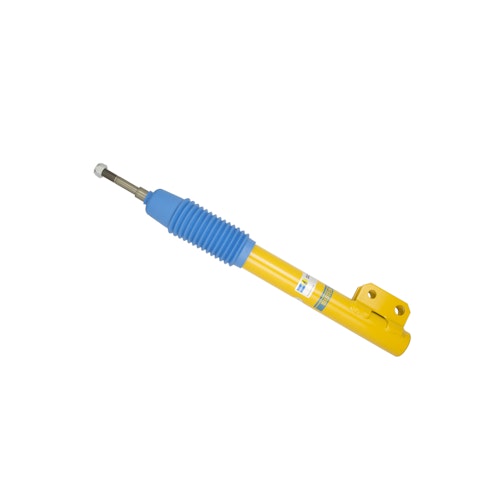

46mm Monotube Shock Absorber
Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.
- Monotube design ensures consistent, fade-free performance in all conditions
- Direct fit (OE) mounting design
- Race-winning valvings for optimum weight transfer, feel, and grip in various track conditions
Application Summary:
| Year |
Make/Model |
| No |
Applications |
| Attributes |
| Adjustable Damping |
Non-Adjustable |
| Body Design |
Stock Mount Smooth Body |
| Body Diameter (ID) |
46mm |
| Body Material |
Steel |
| Boot Included |
Blue Straight |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Collapsed Length (IN) |
15.98 |
| Collapsed Length (MM) |
406.0 |
| Compression @0.26m/s |
520 |
| Compression @0.52m/s |
690 |
| Country of Origin (Primary) |
US |
| Emission Code |
Legal US |
| Extended Length (IN) |
21.42 |
| Extended Length (MM) |
544.0 |
| Finish |
Yellow Paint |
| GTIN |
00790832511996 |
| Harmonized Tariff Code (Schedule B) |
8708800050 |
| Hazardous Material Code |
N |
| Internal Design |
Monotube |
| Life Cycle Status Code |
Available to Order |
| Lower Mount Type |
Bracket |
| PartType |
Shocks / Struts |
| Piston Type |
Linear |
| Rebound @0.26m/s |
1165 |
| Rebound @0.52m/s |
1435 |
| SDR Required Flag |
Y |
| SDS Sheet Number |
USA SDS_Shock_Air Spring_V2_EN.pdf |
| Segment |
Motorsports |
| Series |
AK Series |
| Spring Max Travel (IN) |
5.30 |
| Spring Seat Included |
No |
| Upper Mount Type |
Stem |
| Valving Identifier |
224/122 |
| Warranty Time |
3 |
