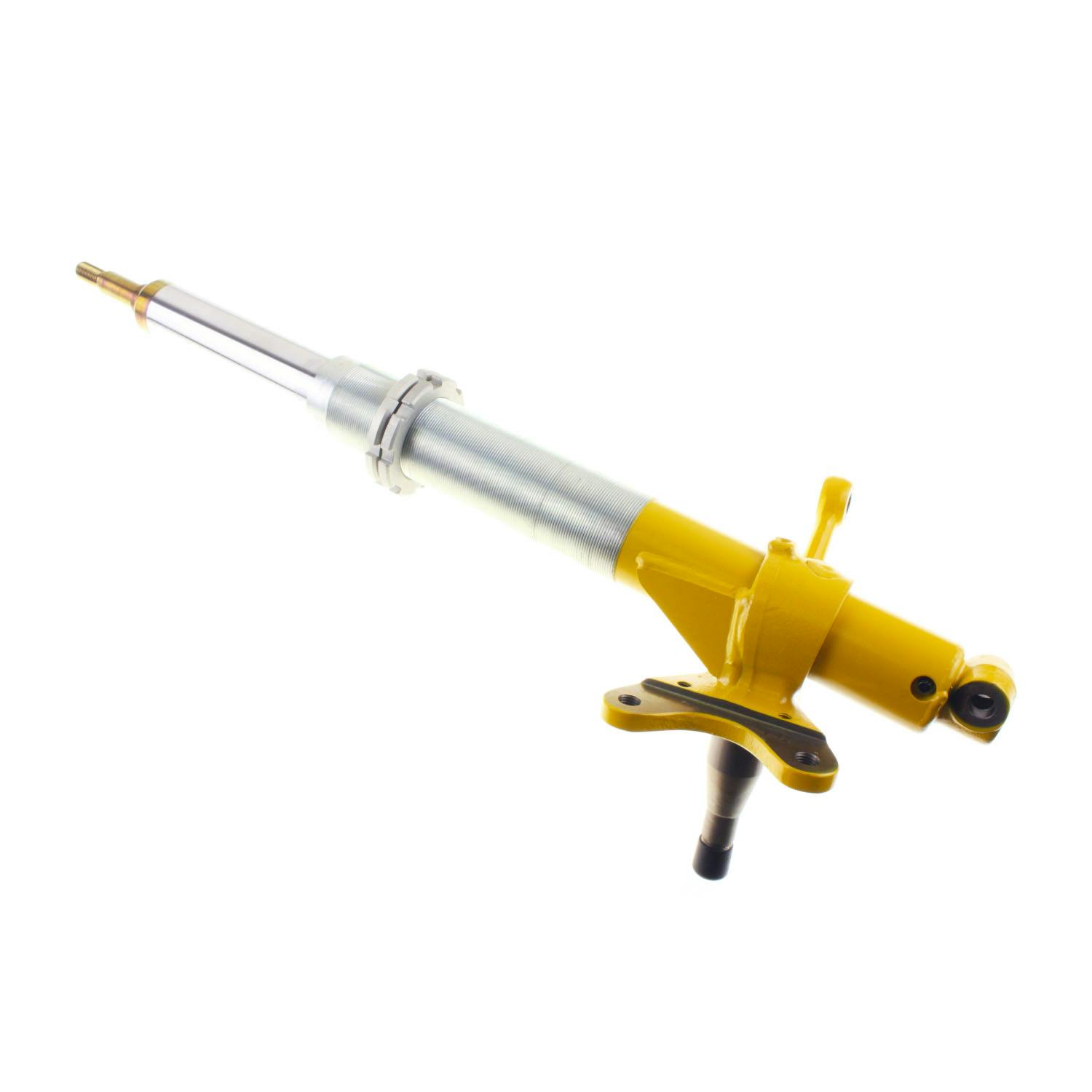

36mm Monotube Strut Assembly
Bilstein Motorsports dampers are designed as a direct fit solution for a variety of motorsports applications. Each damper features monotube technology with proprietary spring steel valve discs tuned specifically to each application for superior on-track handling and control. Bilstein Motorsports dampers are ideal for racers requiring a direct fit solution with true race-proven performance.
- Monotube design ensures consistent, fade-free performance in all conditions
- Larger working piston with deflective disc valving
- Available in steel and aluminum bodies
Application Summary:
| Year |
Make/Model |
| 1965-1989 |
Porsche 911 |
| 1965-1969 |
Porsche 912 |
| 1976 |
Porsche 912 |
| 1978-1979 |
Porsche 930 |
| Attributes |
| Adjustable Damping |
Non-Adjustable |
| Body Design |
Threaded Body (Coilover) |
| Body Diameter (ID) |
36mm |
| Body Material |
Steel |
| Boot Included |
No |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Collapsed Length (IN) |
18.23 |
| Collapsed Length (MM) |
463.0 |
| Compression @0.52m/s |
1600 |
| Country of Origin (Primary) |
DE |
| Emission Code |
Legal US |
| Extended Length (IN) |
22.95 |
| Extended Length (MM) |
583.0 |
| Finish |
Yellow Paint |
| GTIN |
00651860550022 |
| Harmonized Tariff Code (Schedule B) |
8708800050 |
| Hazardous Material Code |
N |
| Internal Design |
Monotube |
| Life Cycle Status Code |
Available to Order |
| Lower Mount Type |
Special |
| PartType |
Shocks / Struts |
| Piston Type |
Linear |
| Position |
Front Right |
| Rebound @0.52m/s |
1610 |
| SDR Required Flag |
Y |
| SDS Sheet Number |
USA SDS_Shock_Air Spring_V2_EN.pdf |
| Segment |
Motorsports |
| Series |
Motorsports |
| Spring Hardware |
N/A |
| Spring Max Travel (IN) |
4.72 |
| Spring Seat Included |
Yes |
| Upper Mount Type |
Stem |
| Valving Identifier |
N/A |
| Warranty Time |
3 |
