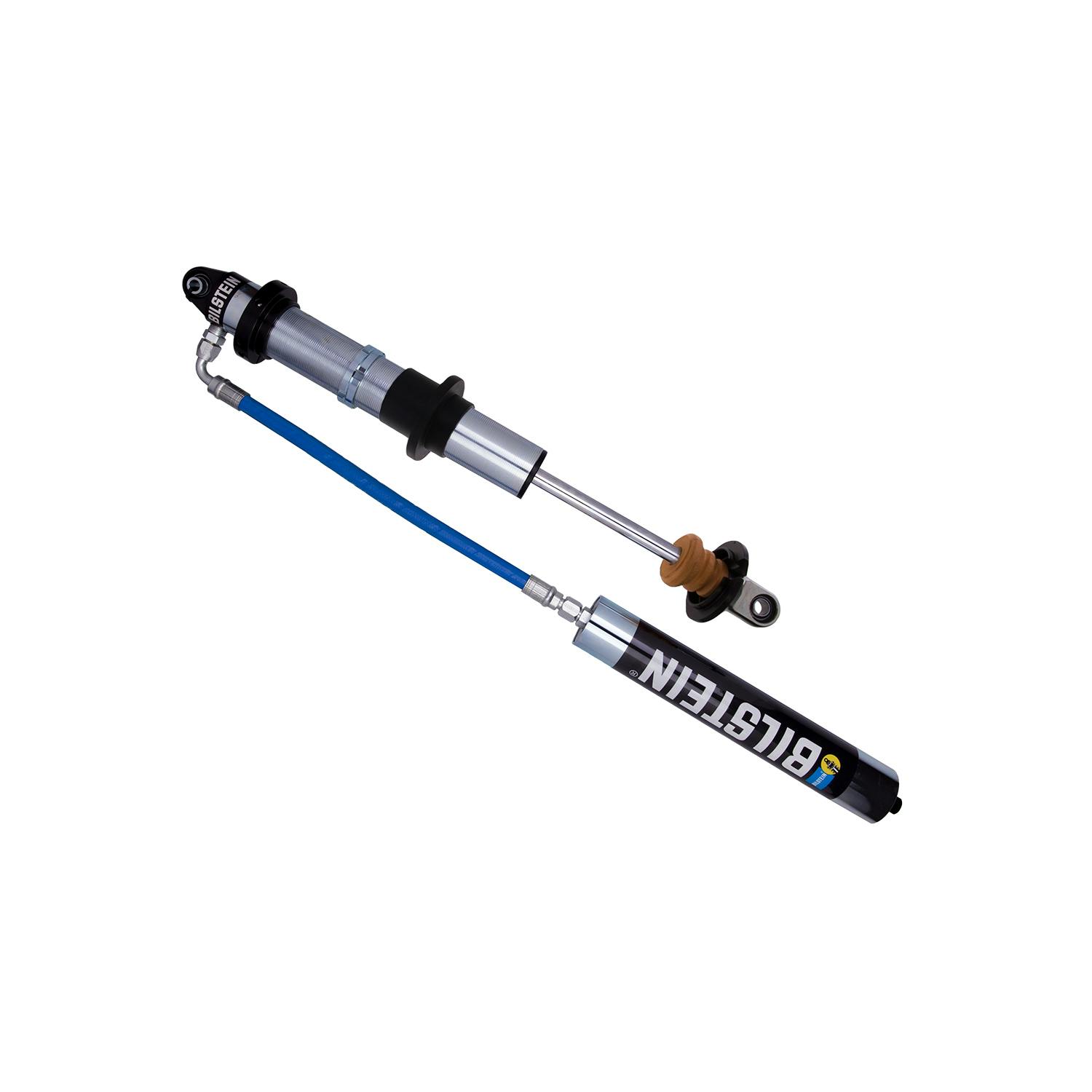

60mm Monotube Shock Absorber
Bilstein M 9200 (Coilover) is designed specifically for professional off-road competition use which requires custom lengths and valve settings. M 9200 (Coilover) features a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard coilover springs. These coilovers are equipped with a 60mm ID remote reservoir and are owner rebuildable and revalvable. M 9200 (Coilover) offers the ability to efficiently adjust spring rates to achieve the optimum performance.
- Available in 46mm and 60mm monotubes
- Threaded body with dual-rate coilover hardware
- Multiple stroke lengths available ranging from 8" to 16"
Application Summary:
| Year |
Make/Model |
| No |
Applications |
| Attributes |
| Body Design |
Threaded Body (Coilover) |
| Body Diameter (ID) |
60mm |
| Boot Included |
N/A |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Collapsed Length (IN) |
19.50 |
| Collapsed Length (IN) Rounded |
20 |
| Collapsed Length (MM) |
495.3 |
| Compression @0.52m/s |
1000 |
| Country of Origin (Primary) |
US |
| Emission Code |
Legal US |
| Extended Length (IN) |
29.50 |
| Extended Length (IN) Rounded |
30 |
| Extended Length (MM) |
749.3 |
| Finish |
Zinc Plated |
| GTIN |
00651860752815 |
| Harmonized Tariff Code (Schedule B) |
8708800050 |
| Hazardous Material Code |
N |
| Internal Design |
Monotube |
| Life Cycle Status Code |
Available to Order |
| Lower Mount Type |
Eye .5x1.5in |
| Mount Type |
Eye-to-Eye |
| Optional Reservoir Clamp |
N/A |
| PartType |
Shocks / Struts |
| Rebound @0.52m/s |
2550 |
| Reservoir |
Yes |
| SDR Required Flag |
Y |
| SDS Sheet Number |
USA SDS_Shock_Air Spring_V2_EN.pdf |
| Segment |
Motorsports |
| Series |
M 9200 (Coilover) |
| Spring Seat Included |
No |
| Upper Mount Type |
Eye .5x1.5in |
| Warranty Time |
3 |
